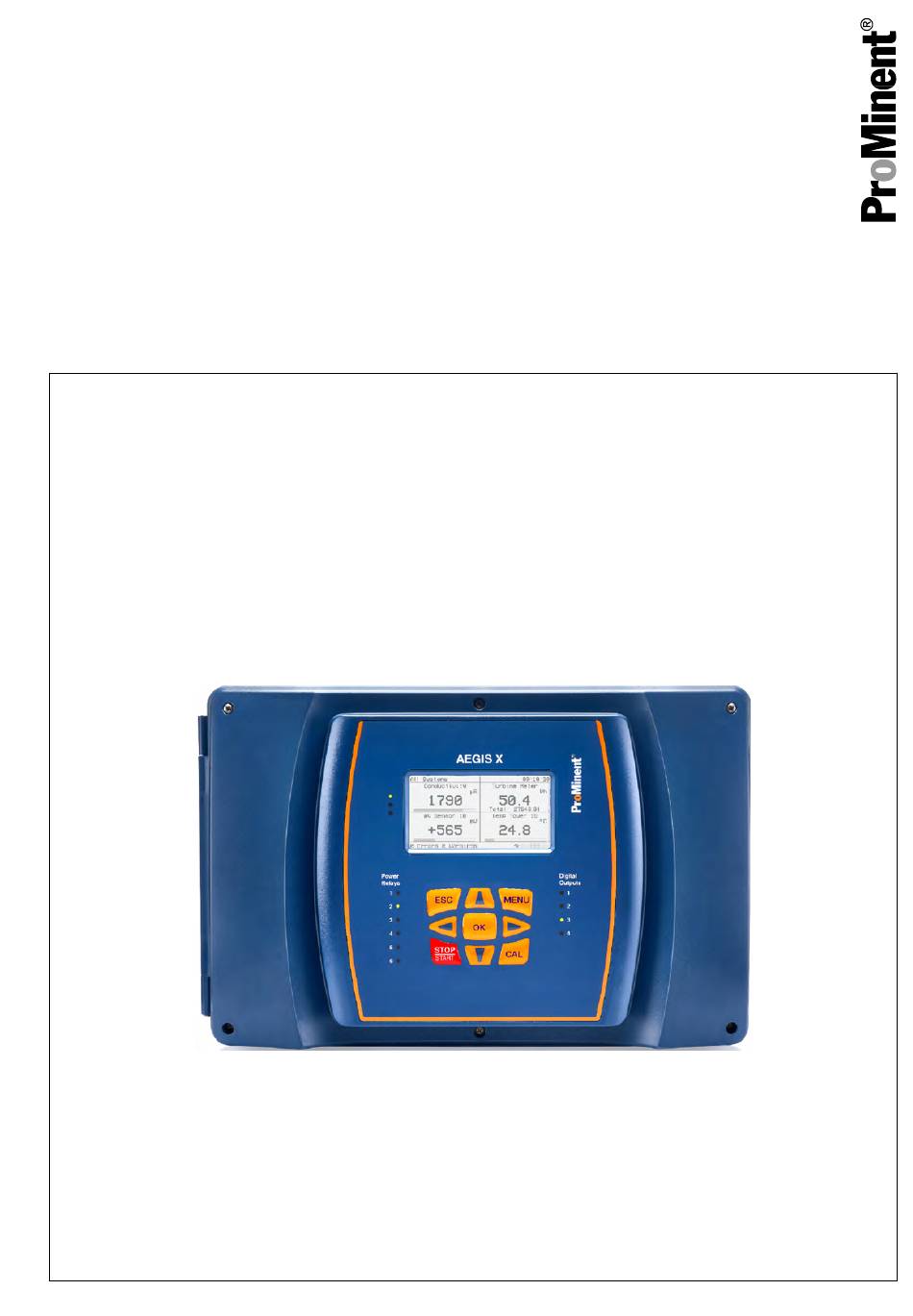

Installation and configuration manual
DULCOMETER Controller
AEGIS X for cooling water applications
EN
A3554
Please carefully read these operating instructions before use. · Do not discard.
The operator shall be liable for any damage caused by installation or operating errors.
The latest version of the operating instructions are available on our homepage.
990204
Target group: trained users.
Version: BA DM 243 04/23 EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AEGIS X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ProMinent AEGIS X

Summary of Contents for ProMinent AEGIS X

  • Page 1 Installation and configuration manual DULCOMETER Controller AEGIS X for cooling water applications A3554 Please carefully read these operating instructions before use. · Do not discard. The operator shall be liable for any damage caused by installation or operating errors. The latest version of the operating instructions are available on our homepage.
  • Page 2 Supplemental directives General non-discriminatory approach In order to make it easier to read, this document uses the male form in grammatical structures but with an implied neutral sense. The document is always aimed equally at women, men and gender-neutral persons. We kindly ask readers for their understanding in this simplification of the text.

  • Page 3: Table Of Contents

    Table of contents Table of contents Function................... 6 Operating concept of the device............7 2.1 Front panel................7 2.2 Functions of the keys.............. 8 Navigation in the controller’s menu display........9 Identity code.................. 12 Safety and responsibility..............14 5.1 Labelling of Warning Information.......... 14 5.2 General safety information............
  • Page 4 11.3.2 Module: 2x mA outputs. Part number 734143....54 11.4 Digital inputs................ 54 11.5 Digital outputs..............55 11.5.1 Potential-free digital pulse outputs........55 11.5.2 Use of a ProMinent universal control wire on a pulse output relay..............56 11.6 Active digital outputs............56 11.6.1 Overview................56 11.6.2 Connecting the power supply or a mains cable....
  • Page 5 Table of contents 15.6.1 Application: Percentage-based timing......90 15.6.2 Application: Timed event..........91 15.6.3 Application: Timed volume event........92 15.7 Measured value control applications........93 15.7.1 Application: Sensor-based bleeding......... 93 15.7.2 Application: On/Off............94 15.7.3 Application: PID..............94 15.7.4 Application: Feed meter........... 96 15.7.5 Application: Two-Way............

  • Page 6: Function

    Function Function The DULCOMETER AEGIS X controller is designed for use in open cooling circuits and air scrubbers. In the following operating instructions, the DULCOMETER AEGIS X will be referred to as the “controller” throughout. The controller can be extended to form a networked control system by the addition of CAN bus, pumps, sensors and expansion modules.

  • Page 7: Operating Concept Of The Device

    Operating concept of the device Operating concept of the device 2.1 Front panel The controller features a graphic LCD display to present real-time meas‐ ured values, statuses and configuration information. Sensors can be cali‐ brated using the display and keyboard. The LEDs on the front display the status of relays, digital outputs and alarms.

  • Page 8: Functions Of The Keys

    Operating concept of the device 2.2 Functions of the keys Tab. 2: Functions of the keys Function Confirmation in the setting menu: acknowledges and saves the input of values. Confirmation in the continuous display: displays all information about saved errors and warnings. Back to the continuous display or to the start of the respective setting menu in which you currently find yourself.

  • Page 9: Navigation In The Controller's Menu Display

    Navigation in the controller’s menu display Navigation in the controller’s menu display Most of the menu points are self-explanatory, but some menu points are explained in detail. It is not possible to create applications with the key‐ board. Log in to the device via a smartphone or computer if you wish to Ä...
  • Page 10 Navigation in the controller’s menu display All systems 11:54:11 Cooling tower pH 6.8 pH PID ORP 100% PID ORP 100.0 Chlorine 72.01 ppm Cooling tower ORP 0.5 mV Cooling tower conductivity 744µS Water meter 11 m3 Turbine meter 12.2 l/h Today 11.0 l 0 errors...
  • Page 11 Navigation in the controller’s menu display Device settings Time 13:56:47 Time mode 24 h Date 23.05.2022 Date mode DD/MM/YYYY Temperature unit °C Units Metric Log interval 30 seconds Stop after reboot? Screen update Fast Backlight Contrast Reboot? A3562 0 errors 0 warnings Fig.

  • Page 12: Identity Code

    Identity code Identity code AGIX Regional code EU Europe Mounting type W Wall-mounted Version 00 with ProMinent logo Function XX none Operating panel A Master unit B Satellite Supply voltage 4 24 V DC 6 100 ... 230 V, 50/60 Hz...
  • Page 13 Identity code AA mA/mA sensor input mV/mV temperature sensor input Extension slot 4 No module Serial sensor, module 2, control Conductivity/temperature sensor input mV/temperature and mA module mA/mA output mA/mA sensor input mV/mV temperature sensor input Pump activation (P/V) Relay without presetting Pre-wired outputs None (not for European versions) Inhibitor metering outputs...

  • Page 14: Safety And Responsibility

    Safety and responsibility Safety and responsibility 5.1 Labelling of Warning Information Introduction These operating instructions provide information on the technical data and functions of the product. These operating instructions provide detailed warning information and are provided as clear step-by-step instructions. The warning information and notes are categorised according to the fol‐...

  • Page 15: General Safety Information

    Safety and responsibility 5.2 General safety information WARNING! Danger from hazardous substances! Possible consequence: Fatal or very serious injuries. Please ensure when handling hazardous substances that you have read the latest safety data sheets provided by the manufacture of the hazardous substance. The actions required are described in the safety data sheet.

  • Page 16: Intended Use

    Safety and responsibility 5.3 Intended use INFORMATION: Intended use The controller is designed to measure and control liquid media. The labelling of the measured variables is indi‐ cated in the controller display and is absolutely binding. The protection provided by the pump can be impaired if this controller is used in a manner not specified in the operating instructions.

  • Page 17: User Qualification

    Safety and responsibility 5.4 User qualification WARNING! Danger of injury with inadequately qualified personnel The operator of the system / equipment is responsible for ensuring that the qualifications are fulfilled. If inadequately qualified personnel work on the unit or loiter in the hazard zone of the unit, this could result in dangers that could cause serious injuries and material damage.

  • Page 18: Network Security

    The operator/user should replace all default passwords with appropriate and adequately secure passwords during commissioning. Responsibility for network security lies with the operator of the system. ProMinent GmbH in particular is not liable for any consequences resulting from inadequate security measures and the potential misuse of the user’s authentication...

  • Page 19: Ambient Conditions: Storage And Transport

    Ambient conditions: storage and transport Ambient conditions: storage and transport Ä Chapter 5.4 ‘User qualification’ User qualification: instructed user on page 17 Ambient conditions: storage and transport Permissible ambient temperature: - 20 ... 60 °C (- 4 ... 140 °F) Humidity: maximum 95% relative air humidity, non-condensing.

  • Page 20: Assembly And Installation

    Assembly and installation Assembly and installation User qualification, mechanical installation: trained and qualified per‐ Ä Chapter 5.4 ‘User qualification’ on page 17 sonnel User qualification, electrical installation: electrical technician Ä Chapter 5.4 ‘User qualification’ on page 17 The controller must be installed in such a way that the mains power plug can be easily disconnected or that the circuit breaker is easily accessible.
  • Page 21 Assembly and installation Wall mounting Take the wall bracket out of the housing A0490 Fig. 9: Removing the wall bracket Pull the two snap hooks (1) outwards ð The wall brackets snaps slightly downwards. Push the wall bracket downwards (2) from the housing and fold (3) it Use the wall bracket as a drilling template to mark the positions of four drill holes Drill the holes: Ø...
  • Page 22 Assembly and installation A0491 Fig. 10: Fitting the wall bracket Screw the wall bracket into position using the washers, see Fig. 10 A0492 Fig. 11: Fitting the wall bracket Hook the bottom of the housing (1) into the wall bracket Lightly press the housing at the top (2) against the wall bracket Then check that the housing is hooked in at the top and press down (3) until it audibly engages...

  • Page 23: Electrical Installation

    Assembly and installation 7.3 Electrical installation Safe operating status: Both hardware and software safety precautions must be taken to ensure that the controller adopts a safe operating status in the event of a fault. For instance, use limit switches, mechanical locks, ... During installation, ensure that the controller is not energised.

  • Page 24: Connecting The Terminals

    Connect the cables according to the wiring diagram. Check the cabling against the wiring diagram. A0508 Fig. 12: Stripping back the cable sleeve 7.3.4 Wiring diagrams Aegis X module board 100-230 V AC Designation Terminal identifier Terminals Signal Function...
  • Page 25 Assembly and installation Designation Terminal identifier Terminals Signal Function 4 (PE) Protective earth con‐ ductor Output relay 6 feeding 11 (L*) Phase switched switched 7 (N) Neutral con‐ ductor 3 (PE) Protective earth con‐ ductor Output relay 5 feeding Powered Relays Rel 10 (L*) Phase Output relay 100 - 230...
  • Page 26 Assembly and installation Designation Terminal identifier Terminals Signal Function Potential-free output Dry Relays Rel 3 1 (COM) Root Potential-free output relay 3 relay 100 - 230 V AC 2 (NO) Normally or 24 V DC Open 3 (NC) Normally Closed Potential-free output Dry Relays Rel 2 1 (COM)
  • Page 27 Assembly and installation Designation Terminal identifier Terminals Signal Function 3 (+V) +15 V/10 mA power supply Digital input 4 1 (-) Reference External contact input potential with 15 V/10 mA power supply 2 (+) Contact input 3 (+V) +15 V/10 mA power supply Digital input 3 1 (-)

  • Page 28: Switching Of Inductive Loads

    Module 3 Module slot 3 for 2- channel IO modules Module 4 Module slot 4 for 2- channel IO modules Aegis X Main Unit cover assembly Designation Terminal identifier Terminals Signal Function Customer LAN interface USB interface for customer’s USB...
  • Page 29 Assembly and installation Also when switching on, the resistor acts as a current limiter for the capac‐ itor charging process. The RC member protective circuit is highly suitable for AC voltage supplies. The magnitude of the resistance R of the RC member is determined according to the following equation: R=U/I (Where U= Voltage across the load and I...

  • Page 30: Information On Fieldbus Products

    Information on fieldbus products Information on fieldbus products You will find further information on our fieldbus products, including GSD www.prominent.com/fieldbus files, operating instructions etc. at:...

  • Page 31: Establishing A Network Connection

    Establishing a network connection Establishing a network connection The controller can simultaneously communicate via Ethernet and Wi-Fi. Network connections can be used for: Programming, Configuration, Calibration, Graphic display, Downloading data, Monitoring the program control status, Alarms, Installation of a new program, Saving the current program, Updating the software.

  • Page 32: Wi-Fi With A Smartphone

    Establishing a network connection 9.1.2 Wi-Fi with a smartphone Navigate to your smartphone’s ‘Settings’ page. Select the Wi-Fi page. ð A list of all available Wi-Fi networks appears. Select the [AegisX_123] . The number 123 in this example is different with each controller. These 3 digits are taken from the last 3 digits of the serial number of the controller.

  • Page 33: Determine The Lan Ip Address Of The Controller

    Establishing a network connection Use the special green Ethernet cable provided to connect to the LAN connector on your end device and the LAN connector on the cover of the controller. It is located at the bottom left corner of the controller marked “LAN”.

  • Page 34: General Layout And Terminal Diagrams

    General layout and terminal diagrams General layout and terminal diagrams The figures in this chapter show the general position of the electronic com‐ ponents and the cable connections. Cover layout A3563 Fig. 15: Cover layout Base layout A3564 Fig. 16: Base layout...
  • Page 35 General layout and terminal diagrams Power supply unit A3565 Fig. 17: Controller power supply unit without safety cover...

  • Page 36: Digital Input And Digital Output Relay Status Displays

    General layout and terminal diagrams 10.1 Digital input and digital output relay status displays A3557 Fig. 18: Text display to present I/O values and information. A3566 Fig. 19: Digital inputs with active status LEDs...
  • Page 37 General layout and terminal diagrams A3567 Fig. 20: Digital outputs with active status LEDs A3568 Fig. 21: Output relays with active status LEDs. Relay displays. The LEDs light up when the relay is activated. Physical relays Relay terminals The fuses, relays and relay displays are located under the safety cover of the power supply unit.

  • Page 38: Inputs And Outputs

    Inputs and outputs Inputs and outputs 11.1 Overview Inputs and outputs are each sub-divided into 4 categories: Analogue inputs, Analogue outputs, Digital inputs, Digital outputs. The digital signals are further sub-divided into: On/Off, Low frequency High frequency Discrete signals (directly wired to the controller) are described first, fol‐ lowed by signals supplied by a network cable, such as CAN Bus or MODBUS.

  • Page 39: Analogue Inputs

    Inputs and outputs A3569 Fig. 22: 4 expansion modules in their module slots. Analogue signals are connected to the expansion modules. The direct connection of analogue sensors requires 1 module, as shown here. Sen‐ sors connected via a network cable are described in section 12. There are 6 types of module card and 4 module slots (Slot 1 ...

  • Page 40: Module With 2 Serial Inputs (Ctfs-Lpr)

    Fig. 23: This view of the extension module shows details of the slots. 11.2.1 Module with 2 serial inputs (CTFs-LPR) Only certified serial ProMinent sensors, CTFS (Conductivity Temperature Flowswitch Serial) and Log R serial corrosion rate may be used with these inputs.

  • Page 41: Two-Channel Conductivity/Temperature Input Module

    Inputs and outputs 11.2.1.1 Module: 2x serial sensors. Part number 734265 Belegungsvarianten Serieller Sensor A2386 Fig. 24: Module: 2x serial sensors. Part number 734265 A module for connecting digital sensors of type CTFS and digital corrosion sensors. Maximum cable length: 30 m, limited by the EMC specification. 11.2.2 Two-channel conductivity/temperature input module The two-channel conductivity/temperature input module can be pro‐...
  • Page 42 The Pt sensors are RTDs. The pH/ORP module does not accept LM335 temperature sensors and the ‘H’ input does not accept Pt1000 sensors. ProMinent supplies the fol‐ lowing temperature sensors: Pt1000 RTD with part number 1080101, which is only available as part of the set with part number 1082254.
  • Page 43 Inputs and outputs Electrical data Parameter Value Cell constant: 0.005 1/cm ... 15 1/cm Measuring ranges dependent on the sensor type: Specific conductivity: 0.001 µS/cm ... 200 mS/cm Specific electrical resistance: 5 Ωcm ... 1000 MΩcm TOS (total dissolved solids): 0 ...

  • Page 44: Dual Ph/Orp-Temperature Input Module

    Inputs and outputs 11.2.3 Dual pH/ORP-temperature input module The two-channel pH/ORP-temperature input module can accommodate 2 sensor inputs. They can be two pH or two ORP inputs or one of each measured variable. There are also 2 temperature sensor inputs. Every 2- wire pH sensor works when the mV/pH value is ~59.1.
  • Page 45 11.2.3.2 Attaching the pH/ORP coaxial cable If possible, use only complete coaxial cables, which you can select from the ProMinent catalogue. Ä Tab. 3 ‘Sensor connection cable, coaxial, for ter‐ Part numbers: minal XE1/XE2 and X5/X6’ on page 45 .

  • Page 46: Module With 2X Ma Inputs

    Inputs and outputs A0948 Fig. 29: Coaxial cable: Protective sleeve Insulation Inner conductor Outer conductor and shield A0947 Fig. 30: Coaxial cable construction 11.2.4 Module with 2x mA inputs The two-channel 4 ... 20 mA input module can process active and passive control loops.

  • Page 47: Ph/Orp, Temperature And Ma Input Module

    (PES), and pH and ORP via the pH transmitters, pHV1, part number 809126, and ORP, RHV1, part number 809127. For use with ProMinent 2-wire transmitters and sensors with 2-wire mA interface. Processing of active mA signals (type of connector: current source).
  • Page 48 Inputs and outputs However, any 2-wire pH sensor can be used if the mV/pH value is 59.1. Any 2-wire ORP sensor can be used if the mV value is in the range of +/- 1,500 mV. The temperature input sensor can either be a 100 Ω or 1000 Ω RTD. Mount the pH and ORP sensors a maximum of 10 metres from the controller.

  • Page 49: Connection Of An Amperometric Sensor

    Fig. 33 and Fig. 34. We will also show you how to wire the inputs that are externally supplied, Fig. 35. ProMinent amperometric sensors can be connected to a 4 ... 20 mA input module. Connect the sensor, as described in section Ä...

  • Page 50: Little Dipper ® Ii Ma Connector

    Fig. 33: Connection of an amperometric mA sensor supplied by the con‐ troller. Pin 1 of the ProMinent amperometric sensor is connected to terminal V+. Pin 2 is connected to the ‘IN’ terminal, Fig. 33. The figure shows the con‐...
  • Page 51 Inputs and outputs Brown Supply to the sensor 8 ... 30 V DC at Signal from the 200 mA minimum sensor Black Orange A3585 Fig. 36: Little Dipper II ® : Typical cabling (top) and input with a second channel for the power supply (bottom) The figure shows the line from the same input channel and from the second channel.

  • Page 52: Pyxis ® Installation

    Inputs and outputs 11.2.8 Pyxis installation ® The Pyxis ® inline fluorometer can be connected to a dual mA input module or to the MODBUS master connector. The 4 ... 20 mA input can be wired in one of the two ways shown in the illustrations. The red and black wires supply the Pyxis inline fluorometer with 24 V DC.

  • Page 53: Liquid Level Sensor With Ma Connector

    Inputs and outputs 11.2.9 Liquid level sensor with mA connector A3588 Fig. 39: Liquid level sensor connected to a two-channel 4 ... 20 mA input module Tank A Tank B Two-channel 4 ... 20 mA input with isolated voltage supply. The two-channel mA input module can receive 2 suitable liquid level sen‐...

  • Page 54: Module: 2X Ma Outputs. Part Number 734143

    Inputs and outputs 11.3.2 Module: 2x mA outputs. Part number 734143 Assignment options 2x mA outputs A2414 Fig. 41: Module: 2x mA outputs. Part number 734143 A module for recording measured values, for example via a measured value recorder, control of actuators, such as a motorised ball valve. Maximum load: 450 Ω...

  • Page 55: Digital Outputs

    Check this in the manual for the water meter. Water meters are available from your ProMinent agent. For a list of gauges, see the “Spare Parts” section of this manual.

  • Page 56: Use Of A Prominent Universal Control Wire On A Pulse Output Relay

    Inputs and outputs 11.5.2 Use of a ProMinent universal control wire on a pulse output relay A ProMinent pump using the universal control wire terminates with the brown, black and white wires, as shown here. The black line is general. The white line is the pulse signal. The brown line is for pause/activation.
  • Page 57 Inputs and outputs to the controller does not exceed 5 amps for a single relay. As relays 1 - 3 are “dry” contact relays, these relays can be used to supply motor pumps with higher amperages of up to 5 amps. Devices with higher amperage must be fed and protected from an external source.

  • Page 58: Connecting The Power Supply Or A Mains Cable

    Inputs and outputs 11.6.2 Connecting the power supply or a mains cable No mains cable is supplied. Always use a suitable all-pole isolating device when connecting the con‐ troller to the supply voltage. A3597 Fig. 48: Mains cable 11.6.3 Wiring relays 4, 5 and 6 The following wiring diagrams show typical configurations, but not all pos‐...

  • Page 59: Wiring Relays 1, 2 And 3 Using An External Power Source

    Inputs and outputs 11.6.6 Wiring relays 1, 2 and 3 using an external power source The de-energised (dry) relays 1, 2 and 3 are not fused, so that any external connection to these relay terminals requires additional protection of the power circuit during installation. The figure Fig.

  • Page 60: Commissioning

    Commissioning Commissioning Ä Chapter 5.4 ‘User User qualification: trained qualified personnel qualification’ on page 17 Switch the controller on once mechanical and electrical installation has been completed. 12.1 Switch-on behaviour during commissioning Switching on – First steps The process takes a few seconds, depending on the size of your configu‐ ration.

  • Page 61: Operation Via A Browser

    Operation via a browser Operation via a browser Ä Chapter 5.4 ‘User qualification’ User qualification: trained user on page 17 The browser connection consists of 2 windows: the Hardware window, on which the inputs and outputs (I/O) are configured, and the Application window (Apps), on which the processes are monitored and controlled by program applications.

  • Page 62: Application (Apps) Window, Basics

    Operation via a browser 13.2 Application (Apps) window, basics A3636 Fig. 55: Application (Apps) window In the upper part of the browser view, you can switch back and forth between the views for applications (Apps) (1.) and Hardware (2.). The functionalities will be explained later.

  • Page 63: Diagnostics

    Operation via a browser All named operating fields are labelled in a clear and by self-explanatory way and can be opened and operated by tapping on them. 13.3.1 Diagnostics There are 6 Diagnostics sections. Status Web browser sessions Local HMI cards I/O cards Network properties Decentralised HMI...

  • Page 64: Menu: Setup

    Operation via a browser 13.3.1.4 I/O cards These Diagnostics pages are mainly used by the manufacturer of the con‐ troller. You can find information on the serial number, firmware etc. on these pages. 13.3.1.5 Network properties [Network properties] Diagnostics page provides helpful information on setting up the local area network (LAN).
  • Page 65 Operation via a browser 13.3.2.1 Set up device The administrator can set the time and date, or synchronise the controller with your PC or mobile phone on the “Set up device” page. You can change the date format, the temperature unit, the measuring system, and specify the data recording length.
  • Page 66 Operation via a browser The boiler refill is located in “Boiler” and “Water consumption”. The “Water consumption” system has 2 applications. Change the system to Tower 1. All grey check boxes show only Tower 1 affiliation. The blue check boxes indicate affiliation of “Tower 1 system” and “Water consumption”.

  • Page 67: Menu: New Container

    Operation via a browser 13.3.2.6 E-mail recipients Enter the e-mail addresses of all people who need to receive e-mails from this controller. 13.3.2.7 E-mail services There are 3 types of e-mails that the controller can deliver. You can select 1, 2 or all types. Define the e-mail action and press Apply. 13.3.2.8 Email server configuration (SMTP) The e-mail service requires an SMTP server.
  • Page 68 Operation via a browser Controller settings Downloads Controller configuration files Live data logs Activity logs Alarm logs A3645 Fig. 62: Download 13.3.4.1 Controller configuration files 13.3.4.2 Live data logs You can download this CSV file to the default download folder of your browser by clicking on the respective CSV file.

  • Page 69: The Display Fields Of The Apps

    Operation via a browser 13.4 The display fields of the apps The display fields of the applications display the current status in various ways. At the lower edge of most windows on the application screen are tiny up and down arrows (1) that let you select a different window size. Some have 3 sizes.

  • Page 70: Setting Up The I/Os, The Hardware Page

    14.2 Analogue I/Os Analogue sensor inputs and outputs require the use of different types of module. ProMinent amperometric sensors, such as chlorine and peracetic acid, as well as the conductivity, Pyxis and Little-Dipper sensors require an mA ®...

  • Page 71: Hardware Fields

    Setting up the I/Os, the Hardware page Establish a connection to the controller via a PC or other suitable device. A3636 Fig. 65: Application (Apps) window Click on the [Hardware] (2) symbol to switch to the [Hardware] page. A3640 Fig. 66: [Hardware] page [Hardware] page is to find and define the inputs The main purpose of the and outputs for use in applications.

  • Page 72: Setting Up The Analogue Input Module

    Setting up the I/Os, the Hardware page The terminal corresponds to the connector designation stated on the module. [true] , when the module is in operation. Online = Hardware type = The module type. Process value = This value represents the calibrated variable. Raw value = From the input module without calibration adjustment.

  • Page 73: Dual Mv Input Module

    Setting up the I/Os, the Hardware page [General] tab are automatically populated if you select a The fields on the fluorescence mA input on the [Configure] tab. You can edit these preset‐ tings if you need to. There is a fluorescence selection for the Little Dipper ®...

  • Page 74: Ph/Orp Temperature And Ma Input Module

    The list of possible mA inputs is the same as for the dual mA input module, which includes every ProMinent amperometric sensor. The pH sensor can be used to compensate for a free chlorine sensor. If required, the mA input can then be used for most 4 ...
  • Page 75 Setting up the I/Os, the Hardware page [true] , when the module is working Online = Hardware type = mA input. Process value = Scaled raw value, including all calibration changes. Raw value = From the input module without calibration adjustment. Calibration = Shows the current values for gain and offset.

  • Page 76: Module With 2 Serial Inputs

    14.3.4 Module with 2 serial inputs The serial input module is compatible with the ProMinent CTFS sensor and serial corrosion sensors. Both sensors are three-wire sensors. The information from the sensors is transmitted to the controller as serial data.
  • Page 77 Setting up the I/Os, the Hardware page The PCB position (Printed Circuit Board) refers to the slots of the module and the terminal is labelled the same as the input on the module. [true] , when the module is working Online = Hardware type = Conductive conductivity.
  • Page 78 Setting up the I/Os, the Hardware page [true] , when the module is working Online = Hardware type = Digital input of a serial CTF sensor [Polarity] tab. Process value = Status of the switch after editing the Raw value = CTF sensor value Flow meter = An analogue presentation of the switch status...

  • Page 79: Setting Up The Analogue Output Module

    Setting up the I/Os, the Hardware page 14.3.4.3 Dual conductivity/temperature module The dual conductivity/temperature module has 4 fields. This module is compatible with a variety of conductivity/temperature sensors, but not with the serial CTFS. [Conductivity] menu symbol to open the [Diagnostics] and Conductivity Use the [General] tabs.

  • Page 80: Setting Up The Digital Input

    Setting up the I/Os, the Hardware page 14.5 Setting up the digital input The digital inputs do not accept a voltage signal. The input terminal sup‐ plies 14 V DC on the (+) line and monitors the (-) terminal for this signal. That way, the controller sees a potential-free contact.

  • Page 81: Setting Up The Digital Output

    Setting up the I/Os, the Hardware page The raw value is the current status of the input, active (closed) or inactive (open). Used by apps, if applicable. You can select a digital type on the “Configure” tab. 3 types can be selected for the digital inputs. “Contact”...

  • Page 82: Digital Low-Voltage Outputs

    Setting up the I/Os, the Hardware page Digital outputs (XA1 - XA4) Digital output XA3 Digital output XA4 Digital output XA1 Digital output XA2 Digital output XA2 Digital output XA1 Digital output XA3 Digital output XA4 Potential-free relays (XR1 - XR3) Relay XR3 Rel3 Relay XR1 Rel1 Non Ox A...
  • Page 83 Setting up the I/Os, the Hardware page You can name the output, and adjust the unit of measure and the decimal places on the [General] tab. The unit of measure helps to manage the accuracy of the display output rate. The decimal places only influence the value displayed on the Hardware page.

  • Page 84: Configuring The Applications

    Configuring the applications Configuring the applications Ä Chapter 5.4 ‘User qualification’ User qualification: trained user on page 17 15.1 Introduction When the inputs and outputs are configured, you can create the applica‐ tions to monitor sensors, counter inputs and signal outputs. You can use these inputs to control the digital, powered and analogue outputs.

  • Page 85: Creating Applications

    Configuring the applications To create a new container, click the menu symbol (often referred to as the hamburger menu) on the Home screen and select “New con‐ tainer” from the drop-down menu. Give the container a name. Preferably a name that indicates its future contents.

  • Page 86: Water Meter Measuring Application

    Configuring the applications Select a container for your application. Click on the gear symbol in the container menu. [ Create new application] , [Measuring applications] Then select the [Sensor] options in the drop-down box. and then [Create sensor] . Press Then select the system affiliation(s) on the General tab.

  • Page 87: Application For Measurement With Turbine Meters

    Configuring the applications 15.4.3 Application for measurement with turbine meters Select a container for your application, Click on the container menu gear symbol, [Create new application] , [Measuring application] and Then select [Turbine meter] in the drop-down box. then [Create turbine meter] . Click on [General] tab, select the system affiliation, edit the Then, on the...

  • Page 88: Application For Manual Inputs

    Configuring the applications The “Clear/Remove” page is the same for all applications. The page con‐ tains an explanation of the process. 15.4.5 Application for manual inputs Expected use: The results of the intermittent water tests are timestamped and can be graphically displayed with other chemical and biological events.

  • Page 89: Boolean Operators

    Configuring the applications 15.5.2 Boolean operators Boolean logic: Two values linked with AND must both be true for the output to be true. Therefore, A and B will only result in an active output if both A and B are true. The logic of the OR link is such that the output is true if one of the inputs, A or B, is true.

  • Page 90: Application: Status Change

    Configuring the applications [General] tab to select a system affiliation and name the Use the process. The system affiliation lets you group your applications. The browser view can be manipulated by switching the affiliation symbols. The Input formula page provides up to 6 input variables that can be used in the formula.

  • Page 91: Application: Timed Event

    Configuring the applications [Create new application] , [Time controlled] , and then Then select [Percentage-based time] in the drop-down box. [Create percentage-based time] . Click on [General] tab to edit a system affiliation and name the appli‐ Use the cation. The system affiliation enables you to group your applications.

  • Page 92: Application: Timed Volume Event

    Configuring the applications The “Clear/Remove” page is the same for all applications. The page con‐ tains an explanation of the process. 15.6.3 Application: Timed volume event This works in a similar way to the Timed event application, except that the application will end after dispensing a certain volume, and not after a cer‐...

  • Page 93: Measured Value Control Applications

    Configuring the applications 15.7 Measured value control applications The measuring control applications activate digital outputs and relay out‐ puts based on sensors created as measuring applications. These applica‐ tions can control multiple outputs, including digital relays and analogue 4 ... 20 mA outputs. 15.7.1 Application: Sensor-based bleeding The Sensor-based blowdown application is designed to control the con‐...

  • Page 94: Application: On/Off

    Configuring the applications Refer to the “Blocked by” heading. This heading is to remind you that the output you have just created is partly controlled by the out‐ puts selected here. The “Clear/Remove” page is the same for all applications. The page con‐ tains an explanation of the “Clear/Remove”...
  • Page 95 3): After the “Pause” signal has been activated via the pump cable. ProMinent pumps have control cable options that include a pause function, the brown cable. You can find more information in the [PID Tuning] tab to enter a setpoint and the pump manual.

  • Page 96: Application: Feed Meter

    Configuring the applications XP is the proportionality factor. The proportionality factor indicates that the output varies proportionally to the setpoint over the XP range. For instance, the ORP setpoint is 400 mV and the XP value is 20 mV. 20 mV is the operating range for the output. This sets the controller so that the controller outputs 0 speed when the process value reaches the setpoint, and outputs 100% when the process value XP (20 mV) is below the setpoint.

  • Page 97: Application: Two-Way

    Configuring the applications [Blocking applications] tab displays all other outputs that can be used to disconnect this output when the outputs are on (block, if active) or off (block, if inactive). The activation delay keeps this output off for a few additional sec‐ onds or minutes if necessary.

  • Page 98: Application: Timed Cycles

    Configuring the applications 15.7.6 Application: Timed cycles [Timed cycles] application is a simple but effective method for aver‐ [Timed cycles] prevents overshooting in aging the chemical feed. metering. A sensor-controlled pump may not be able to control the process because there is a delay between the supply of the chemical and the sensor changing.

  • Page 99: Special Control Applications

    Configuring the applications [Limit values] tab to set up warnings and alarms. The oper‐ Use the ating limit may indicate an output stuck in the On status or an error in the settings. The daily limit value could be due to a leak in the cooling system. In summer temperatures, it may be necessary to increase this value, while a lower value may be required in winter temperatures.

  • Page 100: Application: First Blowdown, Then Feed

    Configuring the applications [Blocked by] heading. This is to remind you that the output Note the you have just created is partly controlled by the outputs selected here. There are no alarm limit settings for this application. Note that the event window displays your current weekly even/odd status.

  • Page 101: Blowdown And Feed

    Configuring the applications [Limit values] menu to set alarms and warnings for each Use the activation and/or each day. If the pump relay does not use the blocking function and you set a time period of 10 minutes and the pump’s on time is 50%, then the pump should never run for more than 5 minutes per activation.

  • Page 102: Sampling

    Configuring the applications The daily limit helps you to detect overfilling. [Assigned output] tab. All the available out‐ Select an output on the puts are displayed. [Blocking applications] tab displays all other outputs that can be used to disconnect this output when the outputs are on (block, if active) or off (block, if inactive).
  • Page 103 Configuring the applications III. VIII. VII. A3634 Fig. 72: Boiler with sampling pipework Boiler, maximum 17 bar (250 PSI) Bleed valve Surface of the bleed pipework VII. Needle throttle valve III. Shut-off valve VIII. Shut-off valve Bypass valve Free flow to the drain Conductivity sensor The 2-wire conductivity sensor used in the sampling method is not ther‐...

  • Page 104: Scaling The Output

    Configuring the applications At the end of the measuring time, a snapshot of the sensor value is recorded and compared with the setpoint. If the measured value is above the setpoint, the routine moves to the next sample and reopens the valve for the sampling time, as it did at the beginning. After the sampling time, the valve closes as before and allows the sample to cool down during the measuring time.

  • Page 105: Calibrating The Controller

    Calibrating the controller Calibrating the controller A3557 Fig. 73: The continuous display with the CAL key Calibration Use the CAL key or the Setup menu to calibrate sensors and 4 ... 20 mA input signals. You can only calibrate measuring applications. To select an application, press OK, and then use the up and down arrow keys to search for the required application.

  • Page 106: Two-Point Ph Calibration

    Calibrating the controller 16.1 Two-point pH calibration Follow the instructions in the lower part of the display. The example shows two-point pH calibration. The other calibration processes are similar. Note the cursor beside [CAL setup] . Press OK to edit the Setup menu, or press CAL to start calibration.

  • Page 107: Maintenance Of The Sensors

    Maintenance of the sensors Maintenance of the sensors 17.1 Cleaning the sensors Clean all sensors, as described in the operating instructions for the sen‐ sors. 17.2 Calibrating the sensors Calibrate all sensors, as described in the operating instructions for the Ä...

  • Page 108: Charts And Data To Download

    Charts and data to download Charts and data to download A3635 Fig. 74: [Charts] tab [Charts] tab in the browser screen to record up to 4 I/Os simulta‐ Use the neously.

  • Page 109: Technical Data

    Technical data Technical data 19.1 Fuse specification Tab. 5: Fuse specification Component Rating/Type Supplier Part# Mains power input 2.5 amps at 250 V AC, 5x20 mm 732413 Output fuse for XP1: 10 amps at 250 V AC, 5x20 mm 733855 Maximum load: 8 A (due to ambient temperature) Relay fuses R4, R5 and R6 10 amps at 250 V AC, 5x20 mm.

  • Page 110: Can Bus (Xc1

    Technical data 19.4 CAN Bus (XC1 ... XC3) Local CAN bus with external power supply 20 V DC/400 mA The shield has no connection to the earth potential 19.5 Modbus slave Standard RS-485 module. The 120 Ohm termination can be activated by the software. Tab.

  • Page 111: Controller Specification

    Technical data 19.8 Controller specification Tab. 10: Controller specification Description Technical data Control characteristic: ON/OFF, P, PID, pulse frequency control Control: 10 relays (see below) Signal current output: 4 ... 20 mA galvanically isolated, max. load 450 Ω, range and assignment (measured, correction, control variable) can be switched.
  • Page 112 Technical data Description Technical data Connector type mV: Potentiometric measured variables, measuring ranges corresponding to the transmitters Conductivity (variable Ohm): 0 ... 5,000 μS Conductivity (measuring ranges depending on 0 ... 5,000 μS with a digital signal transmitter): Temperature: Via Pt 100/Pt 1000, measuring range 0 ... 150 °C pH resolution: 0.01 Resolution of the ORP voltage:...

  • Page 113: Maintenance

    Maintenance Maintenance Maintenance Solvents Never under any circumstances use solvent to clean the surfaces. Solvents can attack the surfaces. Clean the enclosure with a damp cloth. Then rub dry. The controller is maintenance-free. Replace the batteries after 10 years as a precautionary measure.

  • Page 114: Warnings, Alarms, And Errors

    Warnings, alarms, and errors Warnings, alarms, and errors Active alarms Controller alarms App alarms Alarm App alarms Type Code Application Description Alarm Conductivity Hardware missing Alarm Drain Input application Alarm Temperature Hardware missing Alarm Drain-then-refill Input application A3646 Fig. 76: Warnings, alarms, and errors The controller has a notification process that signals control alarms, process alarms and warnings as well as user selection errors to users.
  • Page 115 Warnings, alarms, and errors Errors occur when the operator has made a mistake or made an incorrect selection. The notes in the pop-up window are self-explanatory. Alarms can be acknowledged by any user. Internal controller alarms Real-time clock battery low. Internal SD card error.

  • Page 116: Disposal Of Used Parts

    Refer to the Material Safety Data Sheet for your feed chemical. A current Declaration of Decontamination is available to download on the ProMinent website. Sign indicating EU collection system In accordance with the European Directive 2012/19/EU on waste electrical and electronic equipment, this device features the symbol showing a waste bin with a line through it.

  • Page 117: Standards Complied With And Declaration Of Conformity

    Any modification to the product not approved by us invalidates this declaration. Tab. 12: Extract from the EU Declaration of Conformity Designation of the product: AEGIS X Product type: AGIX ... Serial number:...
