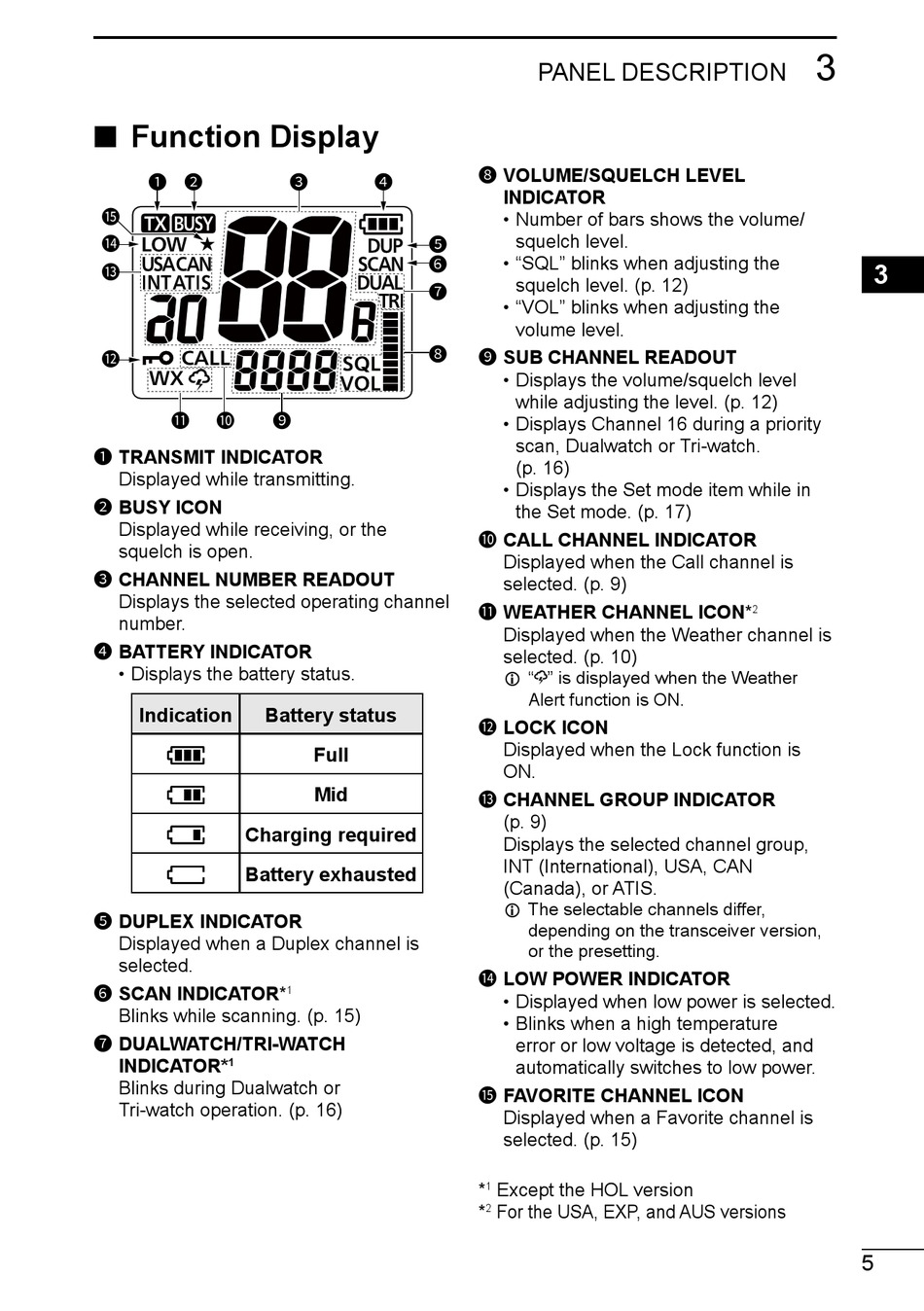

■ Function Display

1 2
15
14
13
12
11 10
1 TRANSMIT INDICATOR
Displayed while transmitting.
2 BUSY ICON
Displayed while receiving, or the
squelch is open.
3 CHANNEL NUMBER READOUT
Displays the selected operating channel
number.
4 BATTERY INDICATOR
• Displays the battery status.
Indication Battery status
Charging required
Battery exhausted
5 DUPLEX INDICATOR
Displayed when a Duplex channel is
selected.
6 SCAN INDICATOR*
Blinks while scanning. (p. 15)
7 DUALWATCH/TRI-WATCH
INDICATOR*
1
Blinks during Dualwatch or
Tri-watch operation. (p. 16)
3 4
5
6
7
8
9
Full
Mid
1
PANEL DESCRIPTION
8 VOLUME/SQUELCH LEVEL
INDICATOR
• Number of bars shows the volume/
squelch level.
• "SQL" blinks when adjusting the
squelch level. (p. 12)
• "VOL" blinks when adjusting the
volume level.
9 SUB CHANNEL READOUT
• Displays the volume/squelch level
while adjusting the level. (p. 12)
• Displays Channel 16 during a priority
scan, Dualwatch or Tri-watch.
(p. 16)
• Displays the Set mode item while in
the Set mode. (p. 17)
10 CALL CHANNEL INDICATOR
Displayed when the Call channel is
selected. (p. 9)
11 WEATHER CHANNEL ICON*
Displayed when the Weather channel is
selected. (p. 10)
L " " is displayed when the Weather
Alert function is ON.
12 LOCK ICON
Displayed when the Lock function is
ON.
13 CHANNEL GROUP INDICATOR
(p. 9)
Displays the selected channel group,
INT (International), USA, CAN
(Canada), or ATIS.
L The selectable channels differ,
depending on the transceiver version,
or the presetting.
14 LOW POWER INDICATOR
• Displayed when low power is selected.
• Blinks when a high temperature
error or low voltage is detected, and
automatically switches to low power.
15 FAVORITE CHANNEL ICON
Displayed when a Favorite channel is
selected. (p. 15)
* Except the HOL version
