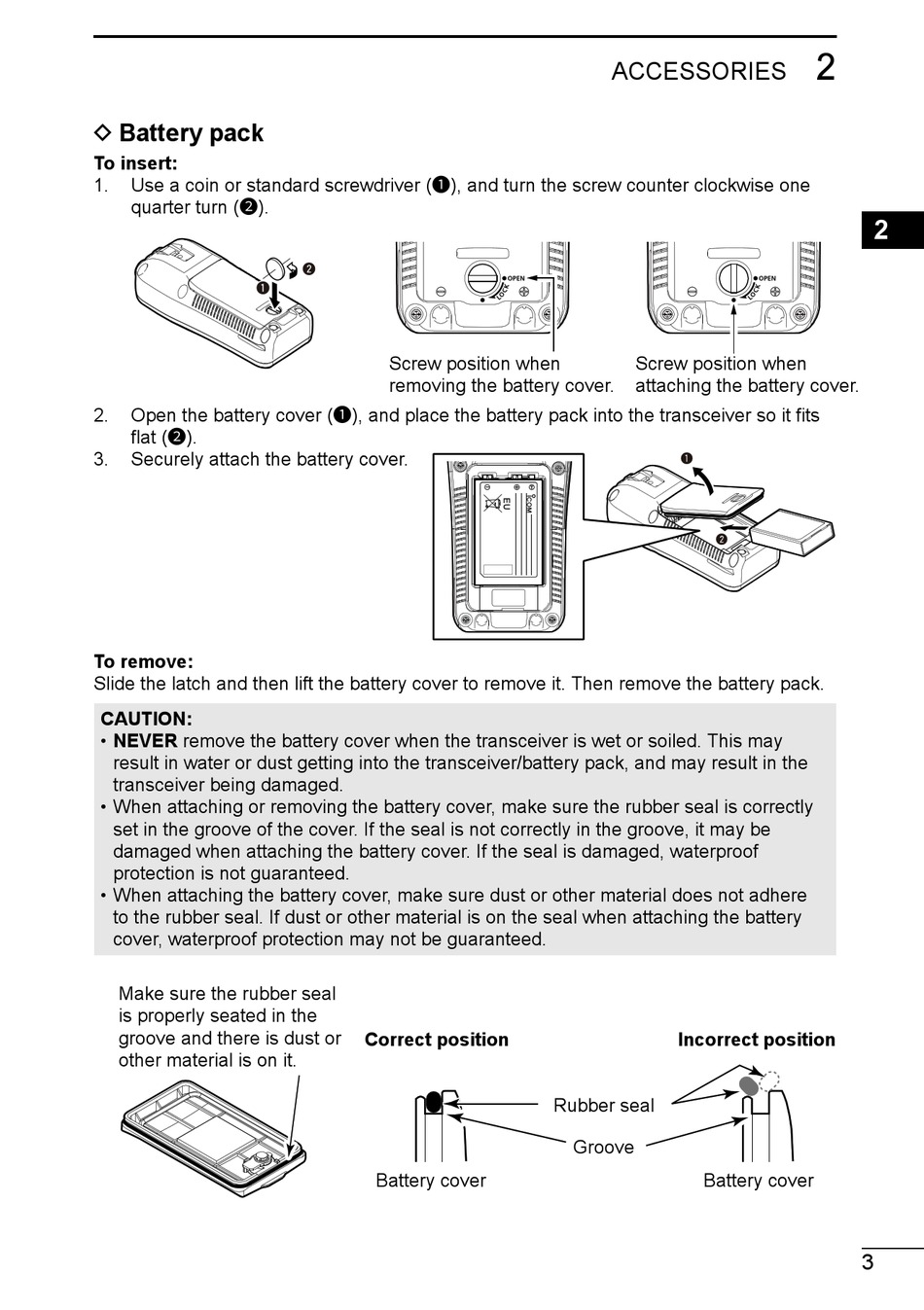

D Battery pack

To insert:
1. Use a coin or standard screwdriver (1), and turn the screw counter clockwise one
quarter turn (2).
q
2. Open the battery cover (1), and place the battery pack into the transceiver so it fits
flat (2).
3. Securely attach the battery cover.
To remove:
Slide the latch and then lift the battery cover to remove it. Then remove the battery pack.
CAUTION:
• NEVER remove the battery cover when the transceiver is wet or soiled. This may
result in water or dust getting into the transceiver/battery pack, and may result in the
transceiver being damaged.
• When attaching or removing the battery cover, make sure the rubber seal is correctly
set in the groove of the cover. If the seal is not correctly in the groove, it may be
damaged when attaching the battery cover. If the seal is damaged, waterproof
protection is not guaranteed.
• When attaching the battery cover, make sure dust or other material does not adhere
to the rubber seal. If dust or other material is on the seal when attaching the battery
cover, waterproof protection may not be guaranteed.
Make sure the rubber seal
is properly seated in the
groove and there is dust or
other material is on it.
w
Screw position when
removing the battery cover.
Correct position
Battery cover
