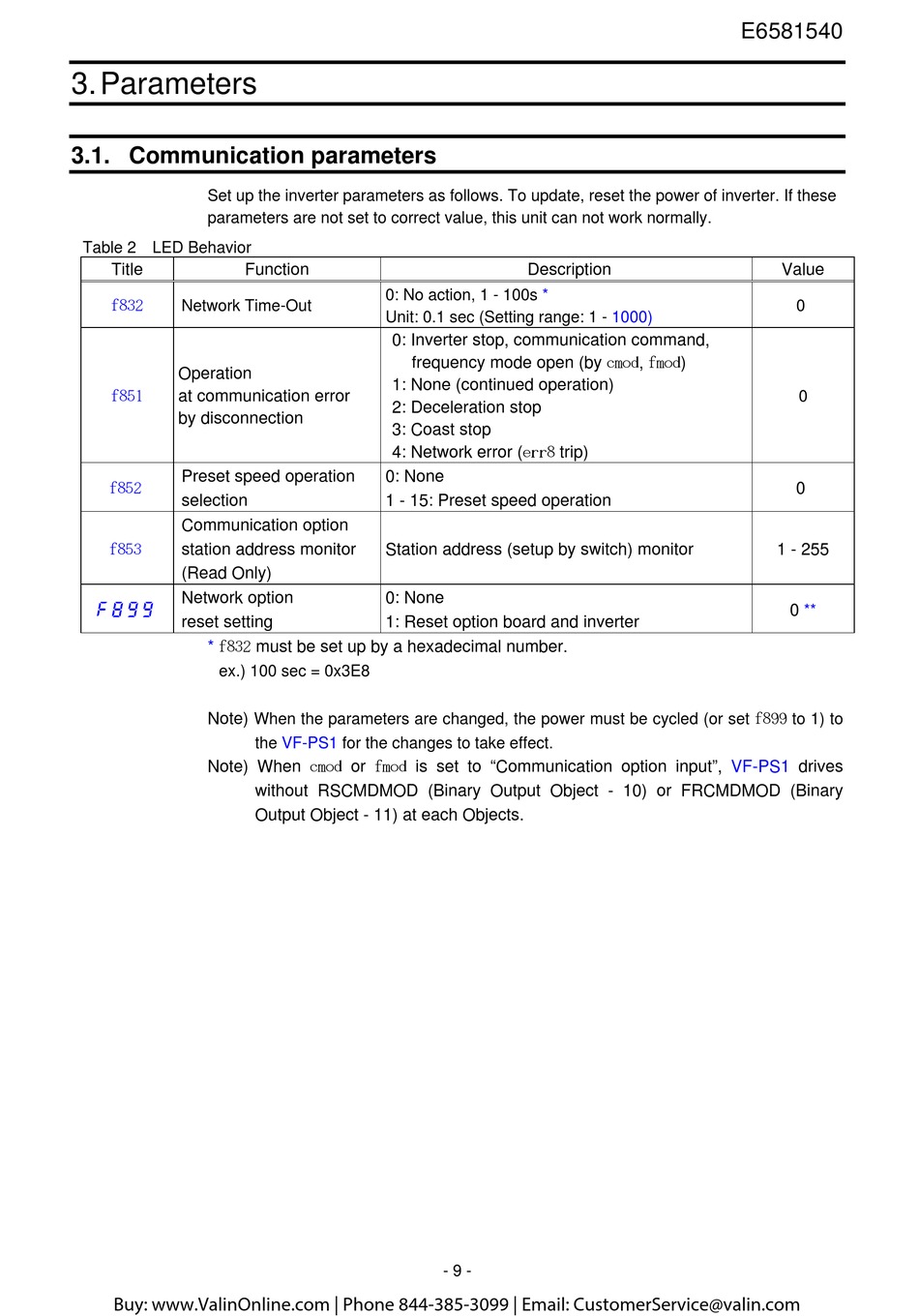

3. Parameters
3.1. Communication parameters
Set up the inverter parameters as follows. To update, reset the power of inverter. If these
parameters are not set to correct value, this unit can not work normally.
Table 2 LED Behavior
Title
f832
Network Time-Out
Operation
at communication error
f851
by disconnection
Preset speed operation
f852
selection
Communication option
station address monitor
f853
(Read Only)
Network option
reset setting
*
f832 must be set up by a hexadecimal number.
ex.) 100 sec = 0x3E8
Note) When the parameters are changed, the power must be cycled (or set f899 to 1) to
Note) When cmod or fmod is set to "Communication option input",
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com
Function
0: No action, 1 - 100s
Unit: 0.1 sec (Setting range: 1 -
0: Inverter stop, communication command,
frequency mode open (by cmod , fmod )
1: None (continued operation)
2: Deceleration stop
3: Coast stop
4: Network error ( err8 trip)
0: None
1 - 15: Preset speed operation
Station address (setup by switch) monitor
0: None
1: Reset option board and inverter
the
VF-PS1
for the changes to take effect.
without RSCMDMOD (Binary Output Object - 10) or FRCMDMOD (Binary
Output Object - 11) at each Objects.
Description
*
1000)
- 9 -
E6581540
Value
0
0
0
1 - 255
0
**
VF-PS1
