Summary of Contents for CARDIOSTRONG BX70i

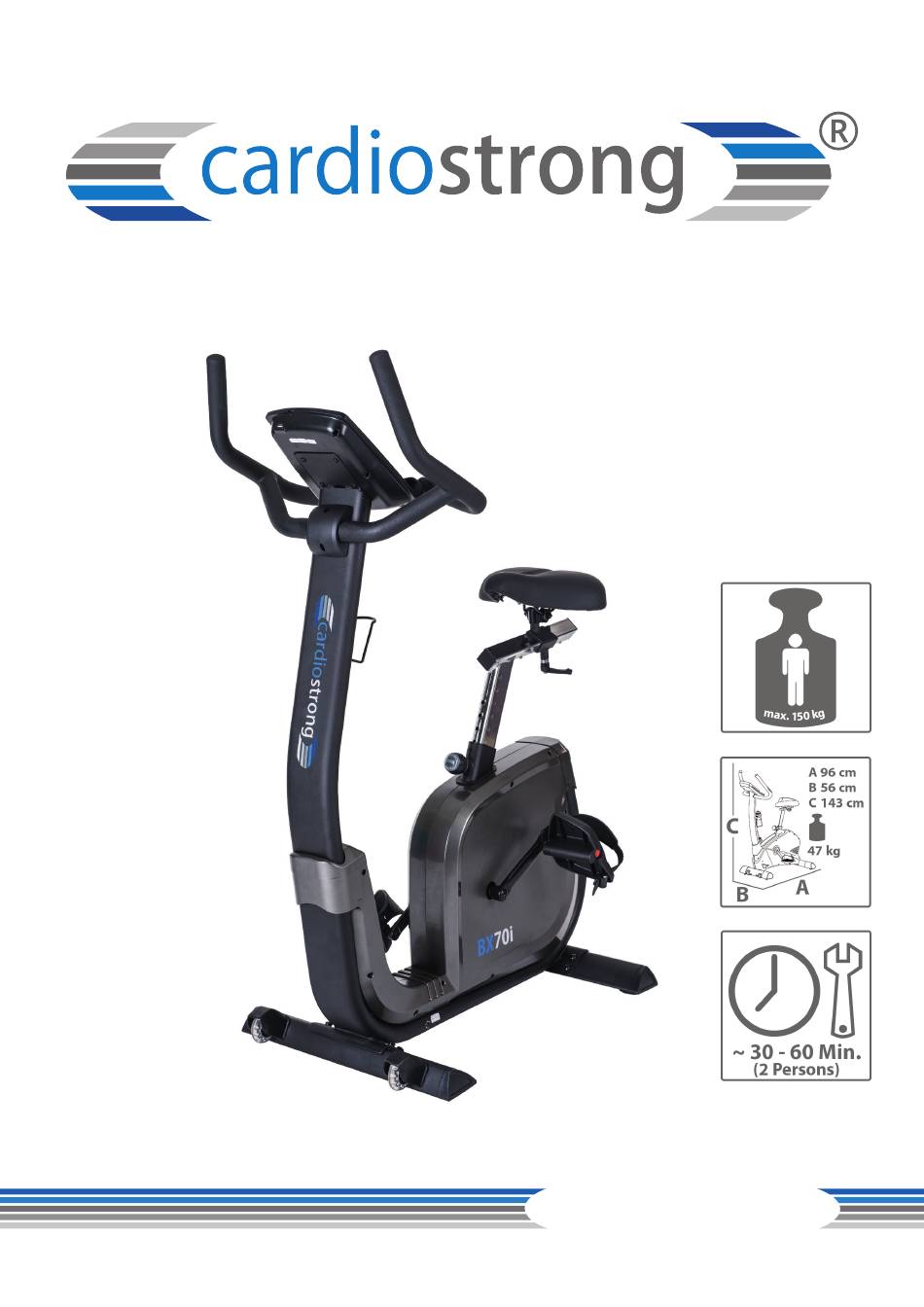

- Page 1 Assembly and Operating Instructions CSTBX70i.02.03 Art. No. CST-BX70i-2 Exercise Bike BX70i...
- Page 2 BX70i...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Electrical Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly OPERATING INSTRUCTIONS Console display Button Function Turning On and Setting the Equipment Training programme 3.4.1 MANUAL MODE 3.4.2 PROGRAM MODE 3.4.3 H.R.C. MODE 3.4.4 WATT MODE 3.4.5 USER PROGRAM MODE 3.4.6 RECOVERY... - Page 4 ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing WARRANTY CONTACT BX70i...
- Page 5 With cardiostrong® fitness equipment, the focus is on what sport is all about: maximum performance! Therefore, the equipment is developed in close consultation with athletes and sports scientists.
- Page 6 This notice indicates potentially hazardous situations which, if not avoided, will result in death or serious injuries! NOTICE This notice indicates further useful information. Retain these instructions in a safe place for future reference, maintenance or when ordering replacement parts. BX70i...
-
Page 7: General Information
GENERAL INFORMATION Technical Data LED display of speed in km/h training time in min training distance in km cadence (rotations per minute) calories burnt heart rate (when using the hand sensors or a chest strap) watt resistance level Resistance system: electromagnetic induction brake Resistance level: Watt: 25 - 350 Watt (adjustable in 5-watt increments) -
Page 8: Personal Safety
Make sure that nobody is within the range of motion of the equipment during training so as not to endanger you or other persons. ड ATTENTION Do not insert any objects of any kind into the openings of the device. BX70i... -
Page 9: Electrical Safety
Electrical Safety DANGER ⚠ In order to reduce the risk of an electric shock, always unplug the equipment from the mains socket immediately after your workout, before assembly or dismantling, and before maintenance or cleaning. Do not pull on the cable. ⚠... -
Page 10: Set-Up Place
10°C and 35°C). The equipment should not be used outdoors or in rooms with high humidity (over 70%) like swimming pools. A floor protective mat/equipment underlay can help to protect high-quality floor coverings (parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight unevenness. BX70i... -
Page 11: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries. -
Page 12: Scope Of Delivery
If parts of the scope of delivery are missing or damaged, the assembly must not be carried out. Step 4 Step 3 Step 1 D15.4 8pcs M8*20L 4pcs D16 4pcs D15.4 4pcs D15.4 4pcs M8*50L 4pcs M5x15L 2pcs M8*20L 8pcS (MM) BX70i... - Page 13 10 & &...
-
Page 14: Assembly
Mount the front base (4) and the rear base (2) on the main frame (1) with the help of the spacer sleeve (7), spring washer (8) and socket screw (9). Turn the wheel under the foot cap in order to set the corresponding height. Tighten the screws. Mount the cover for wheel (23). M8*20 D15.4 Down BX70i... - Page 15 Step 2: Assembly of the saddle and seat tube Mount the seat (10) on the adjusting tube of the seat (11). Mount the adjusting tube on the seat post (66) with the help of the round cross screw (16) and quick-released knob (15).
- Page 16 Insert the handlebar tube (29) on the main frame and mount this with the spacer sleeve (7), spring washer (8) and socket screw (30). Place the upper protective cover back on and mount it on the main frame. M8*50 D15.4 BX70i...
- Page 17 Step 4: Assembly of the handlebars Mount the handlebars (32) on the handlebar tube (29) by means of the protective cover (65), the spacer sleeve (7), the spring washer (8), the socket screw (9) and the screw (20). Make sure that all cables are correctly connected, see figure a, b, c, d. M8*20 D15.4 M5*15...
- Page 18 (17) on the handlebar tube (29) by means of the screw (64). Mount the pedal (62 & 88) to the crank (35 & 89), please see fi gure b,c. NOTICE: Tighten the right pedal clockwise, and the left pedal anti-clockwise. M5x10L M5x15L 62 35 BX70i...
- Page 19 Step 6: Connecting the equipment to the mains supply ड ATTENTION The equipment must not be connected to a multiple socket, otherwise it cannot be guaranteed that the equipment will be supplied with suffi cient power. Technical errors can result. Plug the power plug into a wall outlet that complies with the instructions in the chapter on electrical safety.
-
Page 20: Operating Instructions
OPERATING INSTRUCTIONS NOTICE Familiarise yourself with all the functions and setting options of the device before starting training. Have the proper use of this product explained to you by a specialist. Console display BX70i... - Page 21 When no target is set, the time counts up from 00:00 to a maximum of 99:59. Time When you work out with a pre-set time, the time counts from the pre-set time down to 00:00. Every pre-set increment is one minute from 00:00 to 99:00. Speed Displays theh current training speed from 00.0 to 99.9 km/h or mph.
-
Page 22: Button Function
Then you start setting the user data. Select U1 to U4 with the UP or DOWN buttons. Enter gender, age, height (fig. 2), and the weight. Confirm the settings with MODE/ENTER. When you have entered the profile of the user data, the console switches to the main menu (fig. 3). BX70i... -
Page 23: Training Programme
Fig. 1 Fig. 2 Fig. 3 Training programme Select the training with the UP or DOWN buttons: M (Manual) + P (Programme 1 to 12) + H.R.C. (heart rate controlled) + W (Watts) + U (User). Confirm the programme with MODE/ENTER. 3.4.1 MANUAL MODE Press START in the main menu to start directly the training in the manual mode. -
Page 24: Program Mode
Enter the time with the UP or DOWN buttons. Press START/STOP to start the training. During the training, the intensity level can be adjusted with the UP or DOWN buttons. Press START/STOP to pause the training. Press RESET to return to the main menu. BX70i... -
Page 25: H.r.c. Mode
Fig. 10 3.4.3 H.R.C. MODE WARNING ⚠ Your training equipment is not a medical device. The heart rate measurement of this equipment may be inaccurate. Various factors can affect the accuracy of the heart rate measurement. The heart rate measurement serves only as a training aid. Select a training programme with the UP or DOWN buttons. -
Page 26: Watt Mode
Enter the time with the UP or DOWN buttons. Press START/STOP to start the training. During the training, the intensity level can be adjusted with the UP or DOWN buttons. Press START/STOP to pause the training. Press RESET to return to the main menu. Fig. 16 BX70i... -
Page 27: Recovery
3.4.6 RECOVERY After the training, you hold the handles with both hands or wear a chest strap and press the RECOVERY button. The display of all functions is stopped except for TIME. The time starts to count down from 00:60 to 00:00 (fig. 17). The screen displays your heart rate recovery state with F1, F2, to F6 (fig. - Page 28 Fig. 25 NOTICE After 4 minutes without pedaling or pulse input, console will enter into power saving mode. Press any key may wake the console up. When computer act abnormal, please plug out the adaptor and plug in again. BX70i...
-
Page 29: Bluetooth And Fitness Apps
Bluetooth and fi tness apps This console is equipped with a bluetooth interface. To use training apps you will have to connect your treadmill with your mobile device (tablet or smart phone). To do this, please activate the bluetooth function on your mobile device. Now choose your treadmill. Please take note that your mobile device needs to be compatible with the bluetooth interface of the treadmill (bluetooth 4.0). -
Page 30: Storage And Transport
After that, you easily can move the equipment to a new position. For long transport distances the equipment should be disassembled and safely packed. Select the new location by following the instructions in the section 1.4 of this manual. BX70i... -
Page 31: Troubleshooting, Care And Maintenance
TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. CAUTION ⚠ Damaged or worn components may affect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner. -
Page 32: Error Codes And Troubleshooting
The materials can be recycled as per their symbols. Through the reuse, recycling of materials or other forms of recovery of old equipment, you make an important contribution to the protection of the environment. BX70i... -
Page 33: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more effi cient and pleasant, we recommend that you add suiting accessories to your fi tness equipment. This could be a fl oor mat, for example, which makes your fi tness equipment stand more securely and also protects the fl oor from falling sweat, but it could also be additional handrails on some treadmills or silicone spray to keep moving parts in good could also be additional handrails on some treadmills or silicone spray to keep moving parts in good shape. -
Page 34: Ordering Spare Parts
The serial number of your equipment is unique. It's located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate field. Serial number: Brand / Category: cardiostrong / ergometer Model Name: BX70i Article Number: CST-BX70i-2 ... -
Page 35: Parts List
Parts List Qty. Name Supplier Parts No. Specification Main frame 815S0-3-1000-J2 Rear stabilizer 709S0-6-2107-J2 95.4*50.6*2.0Tx500L Adjustable wheel 709S0-6-2174-B0 D59*M10*40L Front stabilizer 832S0-3-2100-J0 Tri-angle cap(left) 55357-B-5095-B8 95.7*57.2*51.3 Tri-angle cap(right) 55357-A-5095-B8 95.7*57.2*51.3 Flat washer D16*D8.5*1.2T 55108-1-1612-FA D16*D8.5*1.2T Spring washer D15.4 XD8.2x2T 55108-2-1520-FA D15.4 XD8.2x2T Allen bolt M8x1.25x20L 50308-5-0020-F0... - Page 36 65Mn 65Mn Left pedal 58029-6-1105-B0 JD-36A 9/16" Electric cable 815S0-6-2596-01 1250L Bolt M5x10L M5x10L Protective cover 81000-6-2481-B0 100*81*40.8 Seat post 815S1-3-2200-C0 Handle pulse sensor 16800-6-2478-00 PE18 Handle pulse cable 81800-6-2479-00 700L Round magnet 174R4-6-2574-00 Bearing #6004-2RS(C0) 58006-6-1040-01 #6004-2RS(C0) BX70i...
- Page 37 Connecting cable 820S0-6-3177-00 350L Upper computer cable 801S0-6-2572-01 1000L Lower computer cable 815S0-6-2573-00 1800L Sensor cable 818S0-6-2576-00 450L Knob 52916-2-0022-G1 D50xM16x22xD8 Inner tube 195E5-6-1071-B0 40x80x129 Flat washer D24*D16*1.5T 55116-1-2415-NA D24*D16*1.5T Round wheel 84302-6-2175-00 D70.5*23 Bolt M5x0.8x12L 52605-2-0012-N0 M5x0.8x12L Allen bolt M8*1.25*40L 50308-5-0040-F3 M8*1.25*40L Adaptor...
-
Page 38: Exploded Drawing
Exploded Drawing 60 77 49 59 54 51 53 52 55 56 34 33 18 27 26 72 73 BX70i... -
Page 39: Warranty
WARRANTY Training equipment from cardiostrong® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. - Page 40 For that reason, we also want to resolve your queries quickly and in a straightforward manner. Thus, please always keep your customer number and the serial number of the faulty equipment handy. BX70i...
-
Page 41: Contact
CONTACT TECHNICAL SUPPORT TECHNICAL SUPPORT & SERVICE TECHNICAL SUPPORT & SERVICE �� �� �� +49 4621 4210-900 80 90 16 50 +33 (0) 172 770033 +49 4621 4210-945 +49 4621 4210-933 �� +49 4621 4210-698 �� �� info@fitshop.dk service-france@fitshop.fr �� technik@sport-tiedje.de ��... - Page 42 The company employs numerous sports scientists, fitness trainers and competitive athletes. Visit us also on our social media platforms or our blog! BX70i...
- Page 44 Exercise Bike BX70i...
