APPENDIX A: SYNTH TRACK PARAMETERS
AMPLITUDE

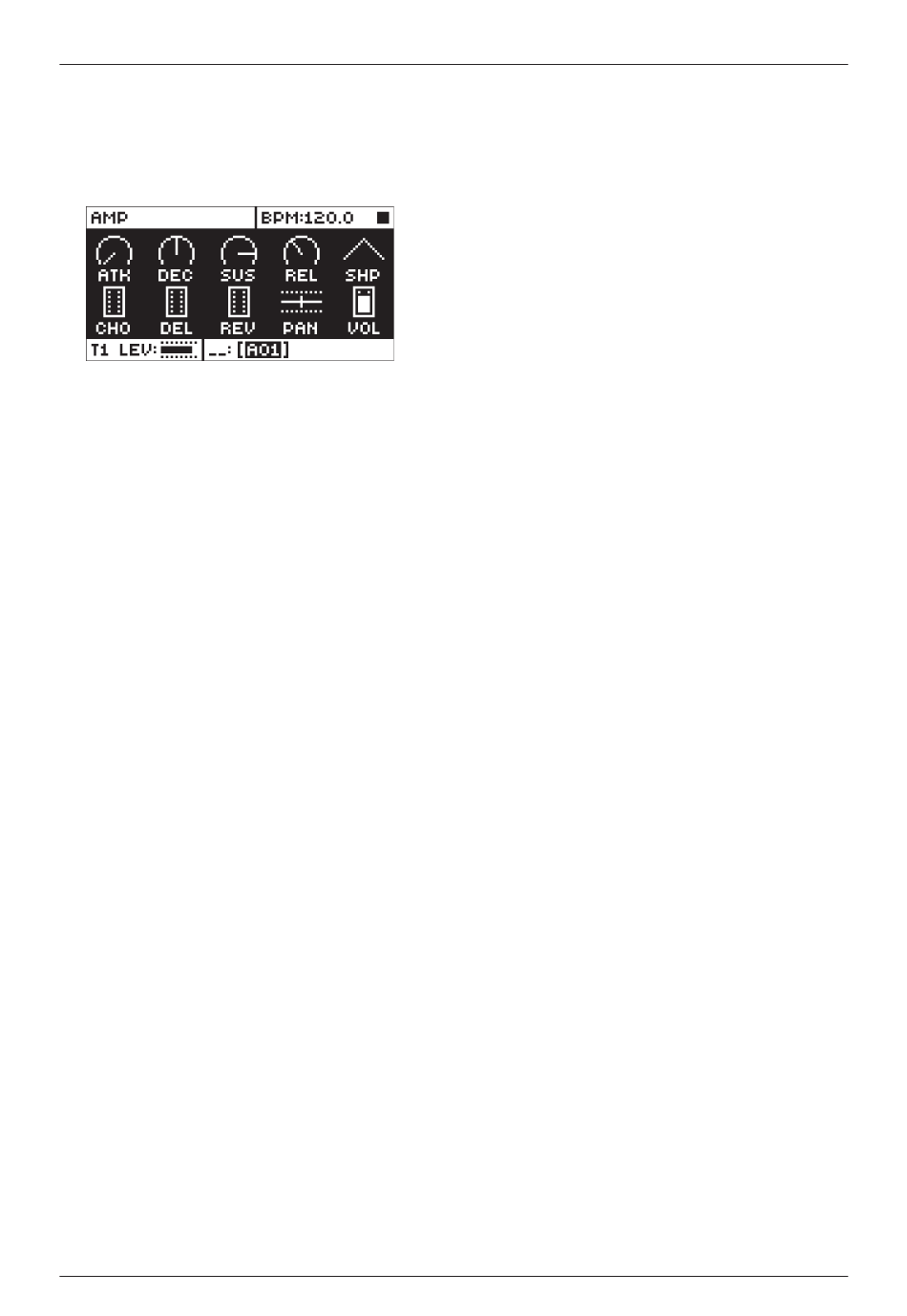

The AMP page contains settings for the amplitude envelope and the effects sends, as well as panning and
volume of the sound.
AMP
ATK (EnvA Attack) sets the attack time of the EnvA
envelope, which controls the amplitude of the track.
DEC (EnvA Decay) sets the decay time of the EnvA
envelope.
SUS (EnvA Sustain) sets the sustain level of the
EnvA envelope.
REL (EnvA Release) sets the release time of the
EnvA envelope.
SHP (EnvA Shape) sets the general shape of the
EnvA envelope. Several linear and exponential
shapes are available. A dot to the left of the visual
representation of the envelope indicates that the
envelope will restart from level zero. In other cases,
it will start from the level it had when being trigged.
CHO (Chorus Send) sets the amount of synth track
signal to send through to the Wideshift Chorus
effect.
DEL (Delay Send) sets the amount of synth track
signal to send through to the Saturator Delay effect.
REV (Reverb Send) sets the amount of synth track
signal to send through to the Supervoid Reverb
effect.
PAN (Pan) positions the Sound of the synth track in
the stereo field.
VOL (Volume) sets the volume of the Sound. This
parameter is independent of the LEV parameter.
