Mod; Spd; Rng; Leg - Elektron Analog Four MKII User Manual

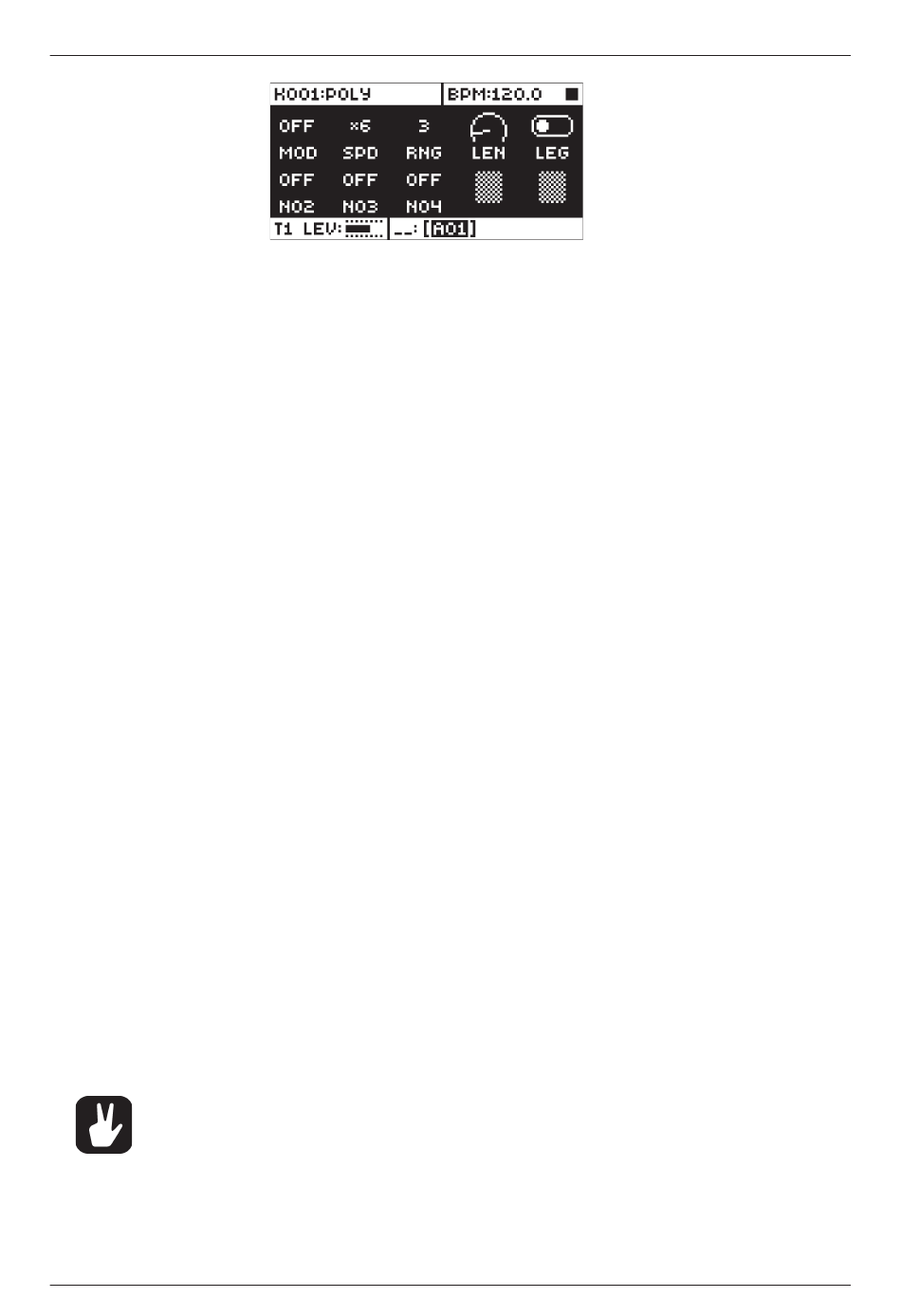

10.6.1 MOD

Activates the arpeggiator and controls how the arpeggiated notes will be sorted.
OFF will deactivate the arpeggiator.
TRU will play the notes in the same order as they were inserted.
UP will play the notes in ascending order, from the lowest note to the highest, on a per octave basis.
DWN will play the notes in descending order, from the highest note to the lowest, on a per octave
basis.
CYC will play the notes first in ascending order, then in descending order.
SHF will play the notes randomly on an octave range basis. If the arpeggio, for example, has an RNG
setting of 2, the notes of the first octave range will be played randomly and once all notes have been
played, all the notes of the second octave will be played in a new random order.
RND will randomize the playback of the arpeggiated notes.
PLY will arpeggiate a complete chord (POLYPHONY must be activated, see page 19) in the same way
an individual note is arpeggiated in TRU mode.

10.6.2 SPD

Sets the speed of the arpeggiator. It is synchronized to the BPM of the project. A setting of 6 equals 16th
notes, a setting of 12 equals 8th notes and so on.

10.6.3 RNG

Sets the octave range of the arpeggiator. After each finished arpeggiator cycle, the arpeggiated notes
will be transposed one octave up. When the notes have reached the octave offset specified by the RNG
setting the notes will be reset to their initial values. From there the octave transpose will be started all
over again.

10.6.4 LEG

Controls the legato of the arpeggiator. This setting will affect the note trigs of the track even if the MOD
setting is set to OFF.
ON will play overlapping notes legato, releasing the old note after the new one. The NLEN setting
adjusts the length of the notes when the arpeggiator is activated. If not activated the LEN setting will
adjust the length of the notes.
OFF will send out a MIDI note off message before the start of each arpeggiated note.

10.6.5 LEN

Controls the length of the arpeggiated notes.

10.6.6 NO2-NO4

Selects the offset in semi-tones for three additional arpeggio notes. The offset is made from the origi-
nal note trig. The TRK KEY SCALE and TRK KEY NOTE settings found in the NOTES SETUP menu will
affect the note values of the arpeggiated notes.
Please note only the NO2-NO4 parameters can be parameter locked.
