Because the Machinedrum is connected to the Analog Four MKII inputs, the internal effects of the Analog
Four MKII can be used to affect the incoming signal. This can be used to add sudden washes of reverb or
delay to the beat.

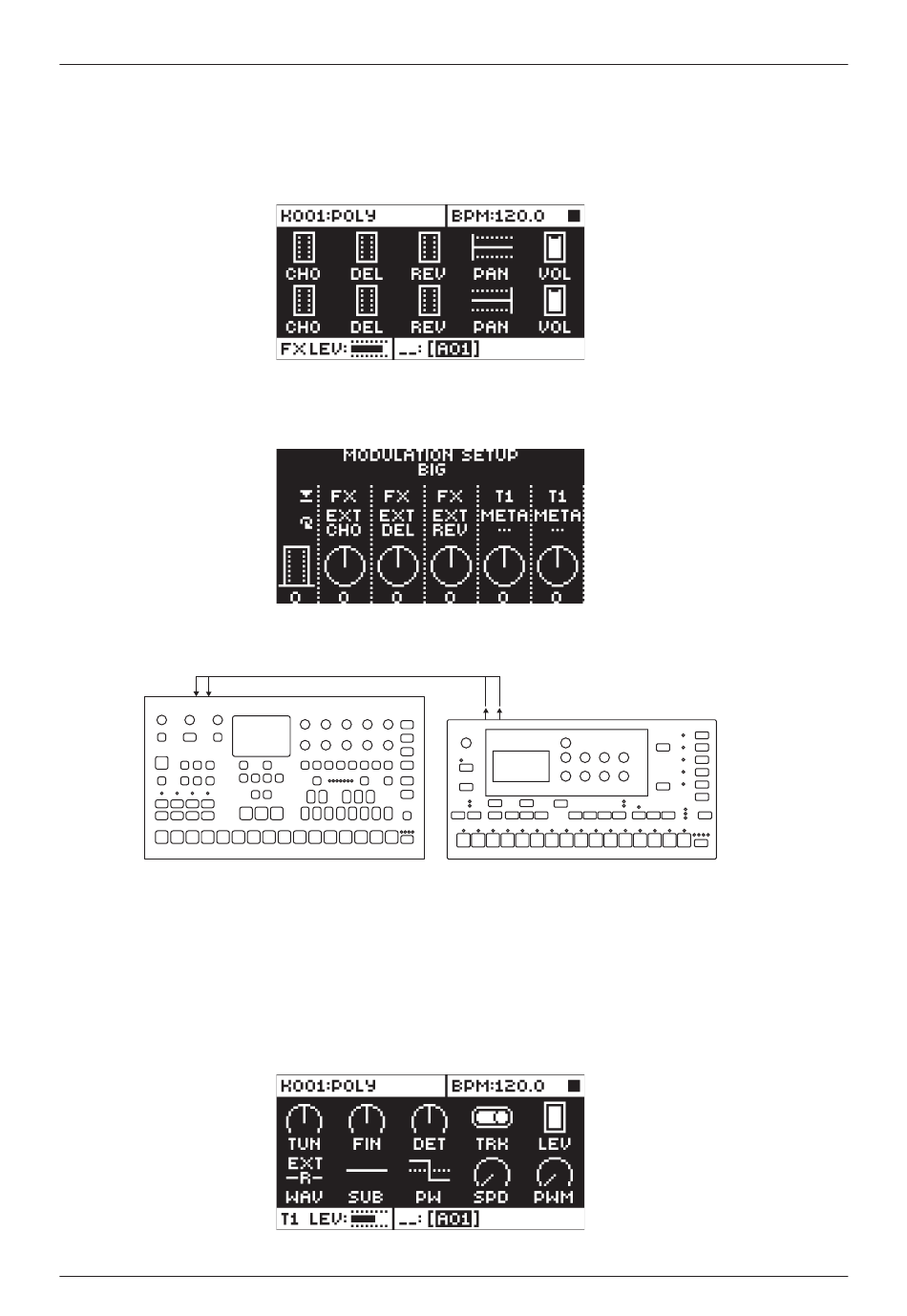

1. Press the [FX] track key, the FX track, on the Analog Four MKII. Select the EXT IN page.
2. Turn up the volume on both channels to 100.
3. Make a performance macro controlling the CHO, DEL and REV parameters, located on the EXT IN page
of the FX track, for both the left and right channel. For more information, please see "9.3.1 PERFOR-
MANCE SETUP MENU" on page 25.

15.3 ANALOG FOUR MKII AS A FILTER BANK

Thanks to the neighbor routing, all the filters of the Analog Four MKII can be used for providing an immense
mono filter bank consisting of 8 filters plus 4 overdrive circuits. The setup can be either serial or parallel.
It can, of course, be set up for stereo filtering as well. In this scenario, 4 filters are available for the left and
right channels.
In this example, the two filters of each track will be used in parallel with the filters of the other tracks.
1. Connect the outputs of for example a Monomachine to the inputs of the Analog Four MKII.
2. For all four synth tracks, set the WAV parameter in the OSC1 page to IN R, and the WAV parameter of
OSC2 to IN L. This will sum the left and right channels.
