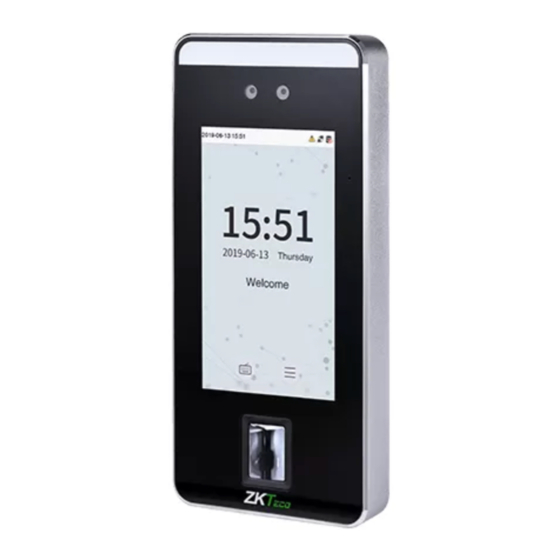

- Page 1 Quick Start Guide SpeedFace series Version: 1.0 Date: October 2018...
-
Page 2: Device Installation
Overview Flash Camera Microphone 5 inch touch screen Card reading area Fingerprint sensor Auxiliary input Power RXD2 Magnetic tamper Sensor TXD2 RS232 switch Ethernet Exit Button +12V RXD1 INWD0 TXD1 RS232 Lock Wiegand INWD1 Speaker Reset 485A Wiegand RS485 Alarm 485B Device Installation ①... -
Page 3: Standalone Installation
Standalone Installation Alarm Smoke detector Door Sensor Exit Button ZKBioAccess Card TCP/IP Lock Reader Note: In this document, we only guide you to connect some common components, if you want more guidance on connection of SRB, external fingerprint reader and so on, please refer to user manual document. -
Page 4: Lock Relay Connection
Lock Relay Connection The system supports Normally Opened Lock and Normally Closed Lock. The NO LOCK (normally opened at power on) is connected with 'NO1' and 'COM' terminals, and the NC LOCK (normally closed at power on) is connected with 'NC1' and 'COM' terminals. T NC Lock as an example below:... - Page 5 RS485 and RS232 Connection RS232 RXD2 Reader TXD2 RS232 RXD1 Reader TXD1 485+ RS485 485A 485- Reader 485B Wiegand Input Connection +12V +12V Wiegand Reader...
-
Page 6: Power Connection
Power Connection 12V DC Recommended power supply 1) 12V ± 10%, at least 00mA. 2) To share the power with other devices, use a power supply with higher current ratings. Ethernet Connection ZKBioAccess RJ 45 IP address: 192.168.1.130 Subnet mask: 255.255.255.0 Default IP address: 192.168.1.201 Subnet mask: 255.255.255.0 Click [Settings] >... -
Page 7: Quick Start
Quick Start User Registration View records User Authentication Verified User registration Register on the device Click > Employee > to register new employee. Enter employee name, ID, register fingerprint, face, badge number (ID and Mifare card are optional), and password. Note: 1. - Page 8 Register on the software Please set the IP address and cloud service server address on the device. 1. Click [Access] > [Access Device] > [Device] > [Search Device] to add the device to the software. When the device has set the server address and port, it can be added automatically. Step 1 Step 2 Step 3...
-
Page 9: User Authentication
Register on the phone Once ZKBioAccess software installation, users could enroll face via broswer application on their own mobile phone. Cloud server IP address Server port Login onto http://X.X.X.X:XX/app/v1/adreg with mobile phone browser application to register users. The users will display in [Personnel] > [Temporary Personnel], click [Review]. User Authentication Terminal could detect face in 0.3m to maximum 3m distance. - Page 10 View records View records in the device Click > Record Search Att Log Record Search Att Log > enter Name Name Employee ID Employee ID (if user ID field is empty, records of all users will be displayed) > select Time Range Time Range >...
-
Page 11: Device Name
SpeedFace T5 www.zkteco.eu © Copyright 2018. ZKTECO CO., LTD. ZKTeco Logo is a registered trademark of ZKTeco or a related company. All other product and company names mentioned are used for identification purposes only and may be the trademarks of their respective owners. All specifications are...
