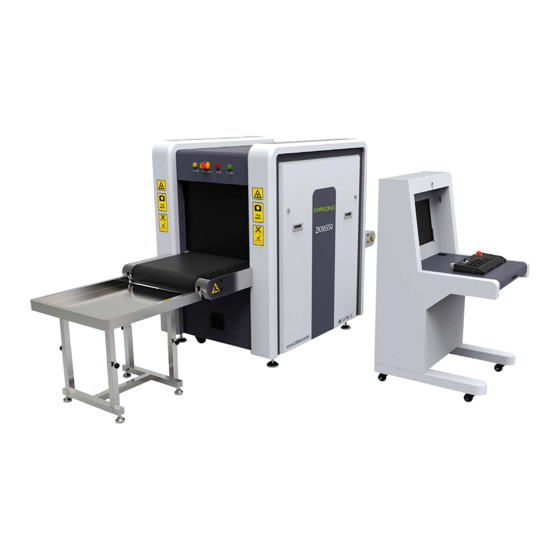

- Page 1 Installation Guide ZKX6550 Micro Dose X-ray Security Inspection Device Version: 1.2 Date: June, 2018...
- Page 2 1 Unpacking ① Open the side panel with the triangle key. Notice: You have to lift the side panel up and then remove it because there are two positioning nails connecting the side panel and the device. Loose and take out the four internal hexagon bolts. ②...
- Page 3 2 Assemble shelf ① Use 8 M6 X 20 Allen screws to connect the H shape trusses to the tray. Use 8 M6 X 20 Allen screws to connect the shelf and the device. ② Put the roller on the shelf holder. ③...
- Page 4 3 Wiring Open the back door of the console with the triangle key, unscrew the thin ① metal round nut at the front end of the bellows, and fix the bellows with the thin metal round nut to console. Connect the power cables, VGA cable, DB15 cable, and USB cable in the ②...
- Page 5 4 Boot Connect the power cord to the main power supply. ① After connecting the wires correctly and properly, you can reverse the key ② switch to "ON", then press the start button beside it and wait for the device to start.
- Page 6 5 Check the scan image Put a baggage on the belt at the entrance and use the mouse to click on the ① "Forward" direction key to move the belt forward. After the baggage is conveyed to the shelf via the belt, the scanned image will ②...
- Page 7 6 Power Off Reverse the key switch from "ON" to "OFF", when switching off the equipment. ① Note: Do not unplug the power cable of the device until it is completely shut down. The screen will prompt "Shutdown" message followed by "Windows will shut ②...
- Page 8 © Copyright 2018.ZKTeco Inc. ZKTeco Logo is a registered trademark of ZKTeco or a related company. All other product andcompany names mentioned are used for identification purposes only and may be the trademarks of their respective owners. All specifications are subject to change without notice. All rights reserved.
