CLOCK
The CLOCK menu allows you to set the primary and secondary clock sources and enable the Auto
Detect routine for each source.

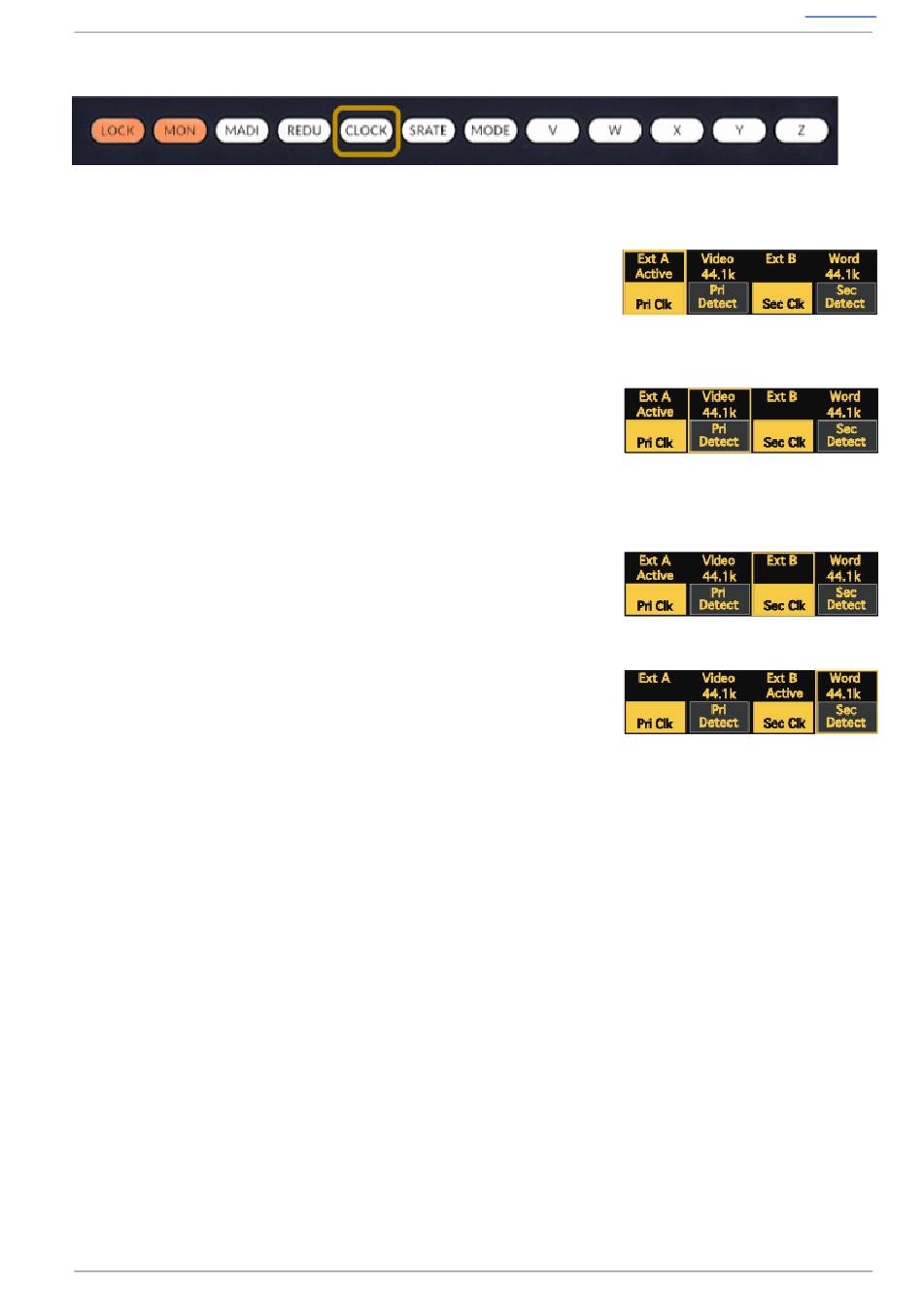

Pressing the CLOCK menu button brings up the Clock page. With
Pri Clk in the focus window pressing the SELECT encoder cycles
through the clock options ( Ext A , MADI , Dante ).
The clock source selected in Pri Clk is not enabled until the Auto
Detect routine is enabled in Pri Detect .
Turning SELECT clockwise moves the focus box to Primary Detect.
Pressing and holding SELECT for 3 seconds starts the auto detect
routine; this lasts for 20 seconds.
When Ext A is the Pri Clk source the Auto Detect will determine if
the attached clock is video or wordclock. If the source is wordclock
it will determine the sample rate; if the source is video the video
sample rate will need to be set in the SRATE menu.
Turning SELECT again moves the focus to Sec Clk , pressing
SELECT cycles through the options ( Ext B , MADI , Dante , None ).
None should be used to disable the secondary clock input if
nothing is required.
Again the secondary clock Auto Detect routine can be enabled by
pressing and holding the SELECT encoder when Sec Detect is in
focus.
N.B. With SRC on, the clocking options do not include Dante. Dante clocking is determined in Dante
Controller.
The CLOCK LED will flash if the MADI Bridge has swapped over to the secondary clock. A manual
detection of the primary clock is needed to force it to the primary clock.
