MADI Bridge User Guide
Clock

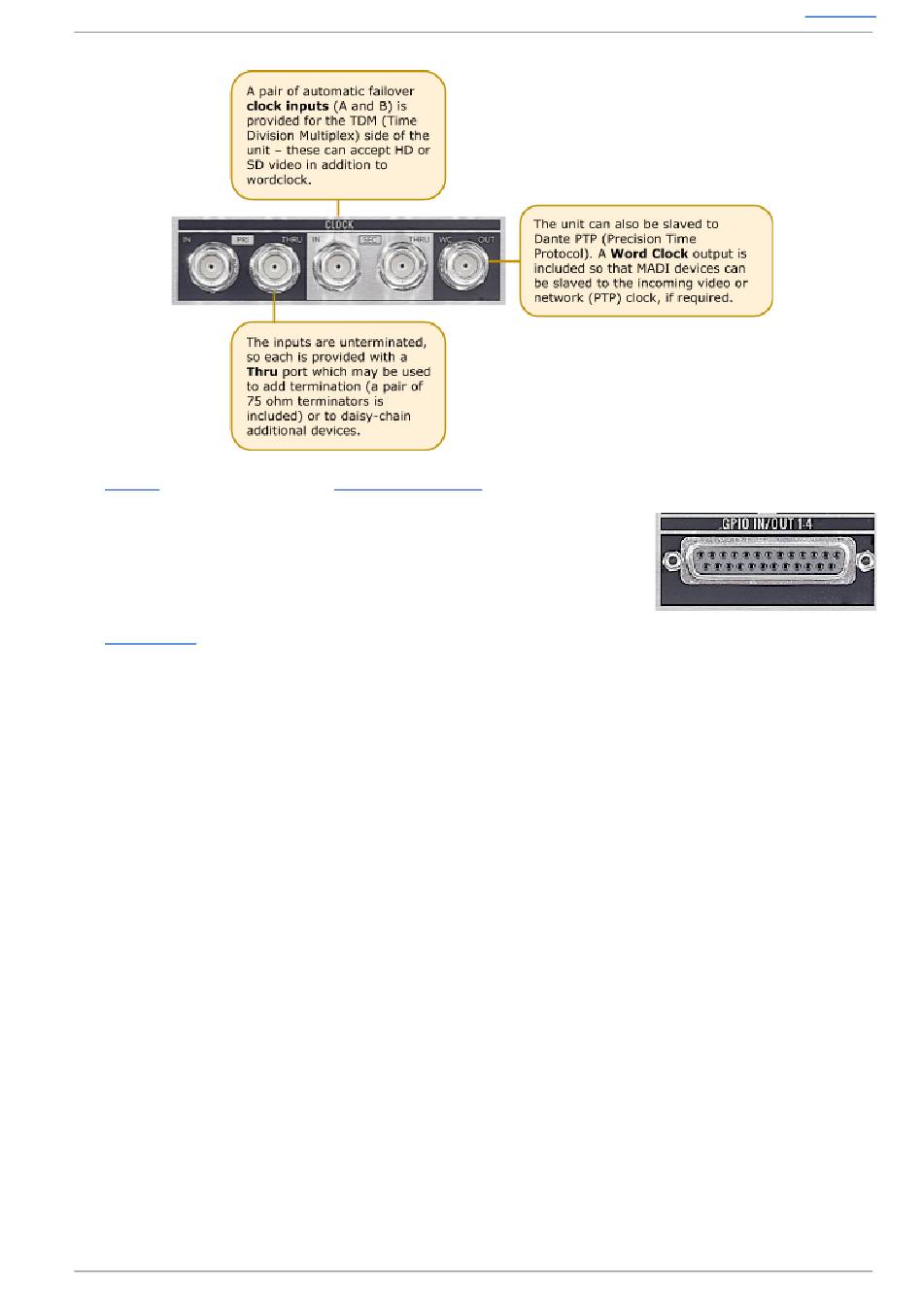

See CLOCK for setup details and
GPIO
4 General Purpose opto-coupled inputs and 4 General Purpose relay
outputs allow embedding and de-embedding of logic signals across the
network.
See Appendix D for pinout information.
Clocking Scenarios for additional information.
