MADI Bridge User Guide
Software Features

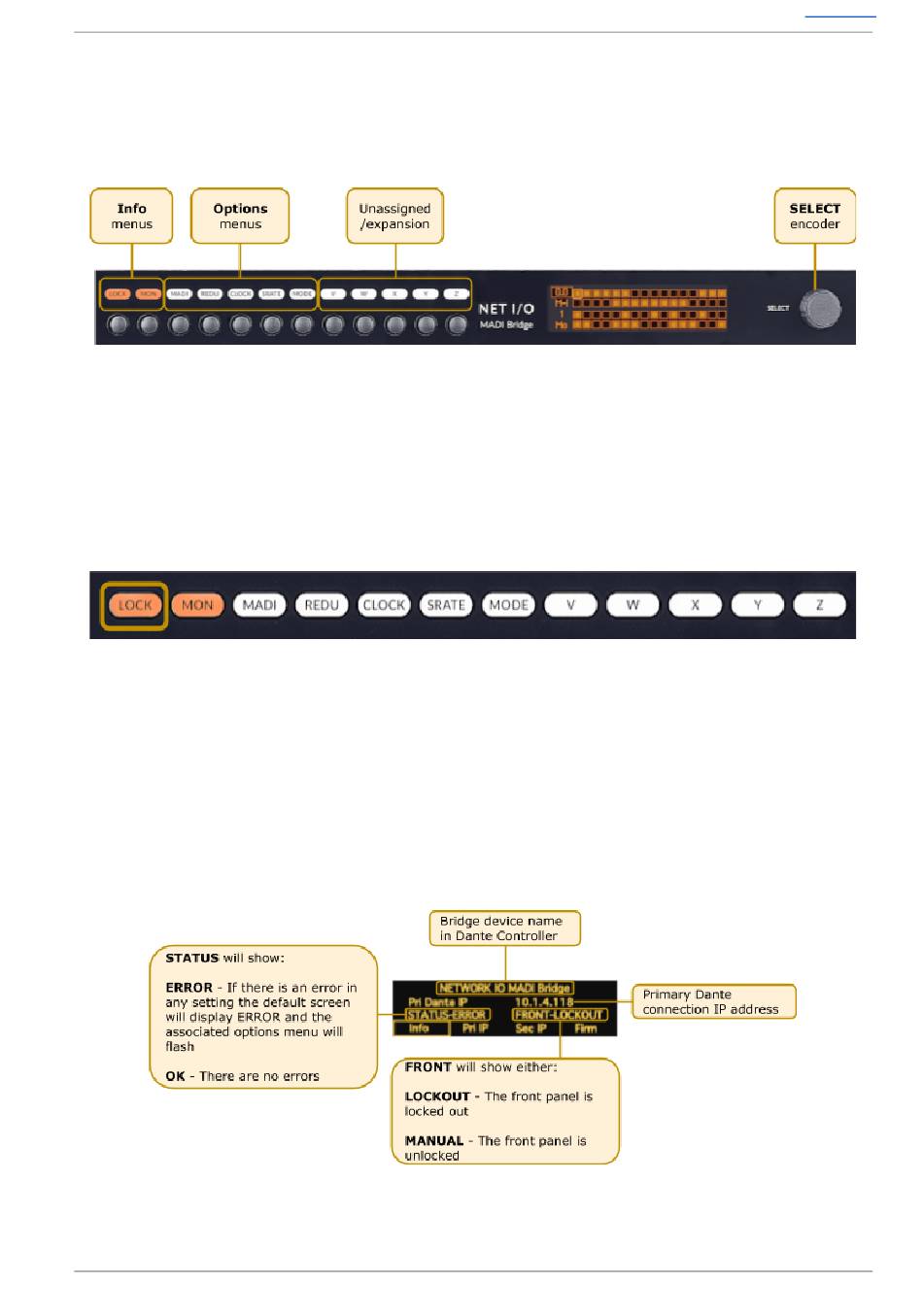

The front panel interface is designed to be intuitive to allow access to any function that needs to
change using minimal button presses. Each menu has its own individual radio button that navigates
to the desired page on the OLED. The other front panel control is the SELECT encoder which can be
rotated, pushed or pushed-and-held.
Info Menus
The info menus are accessed by individual buttons to instantly navigate to the desired settings page
on the OLED display. These menus are:
LOCK – Front panel lockout and device information
MON – Metering and headphone monitoring
LOCK
The LOCK button is dual function: it both locks the front panel and displays the info screen on the
OLED Display. MADI Bridge automatically locks-out the front panel after 60 seconds of the SELECT
encoder or button inactivity. After a total of 2 minutes of inactivity the OLED display enters a
screensaver mode. To unlock the front panel, press and hold the LOCK button for 3 seconds. When
already in the LOCK menu, pressing and holding the LOCK button for 3 seconds will lock the front
panel.
Note that the Monitor ( MON ) menu remains accessible even whilst in front panel lockout.
N.B. Holding both the LOCK and Z buttons together for 3 seconds restarts the MADI Bridge.
The default Info page shows the following information:
