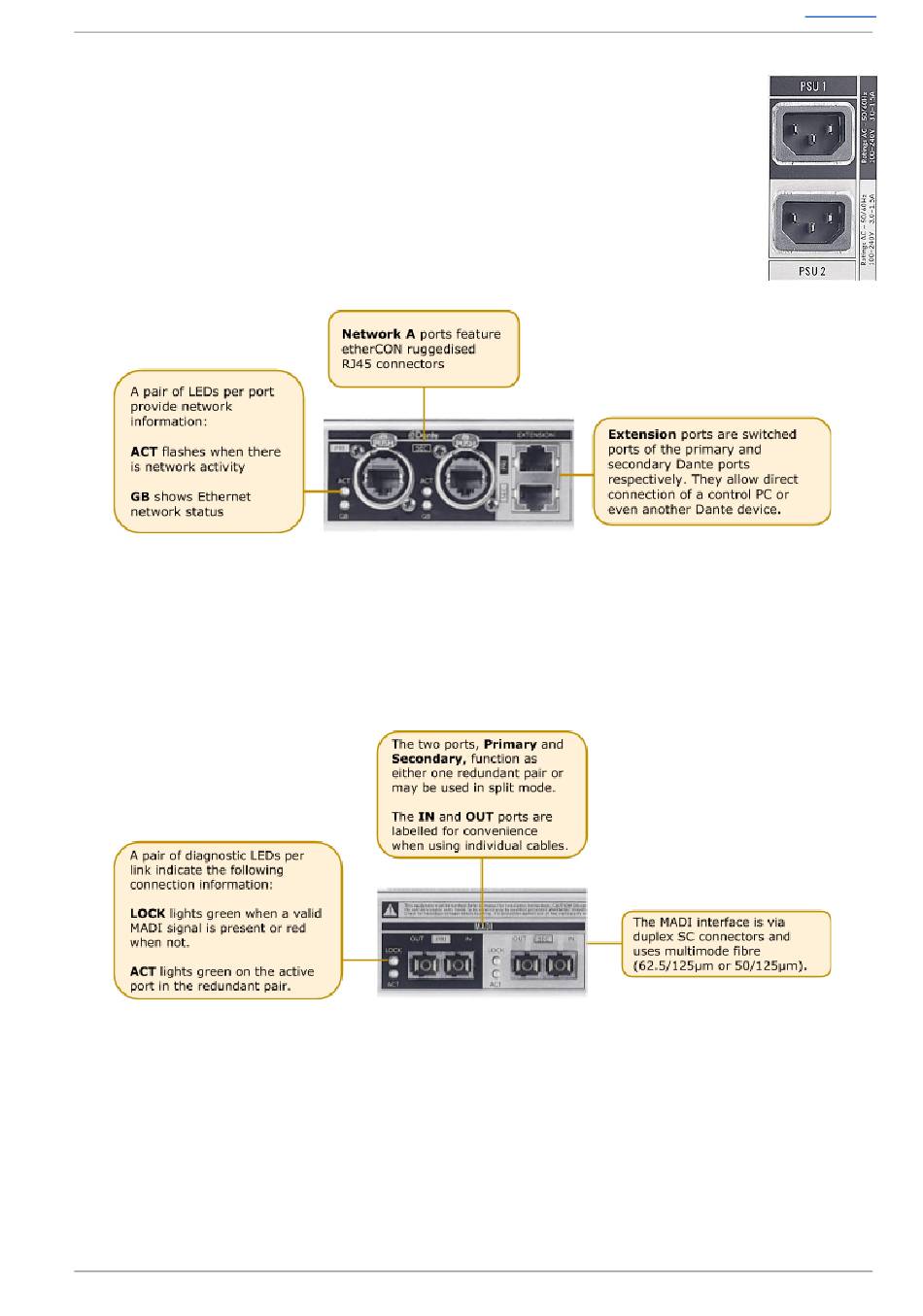

Hardware Connections
Mains Power Connections
The MADI Bridge includes redundant PSUs with IEC connectors; either supply can
individually power the unit. Ideally these should be connected to separate power
circuits to provide redundancy of incoming AC power.
Dante Connections
MADI Bridge has two redundant sets of network connections.
Note: Some Dante devices allow Dante ports to be set to Switched mode rather than Redundant
mode. MADI Bridge uses the extension ports to provide this functionality, without loss of
redundancy.
Never connect Primary and Secondary ports to the same single Dante network.
MADI
