Usage Cases
N.B. The following diagrams omit secondary network connections for clarity.

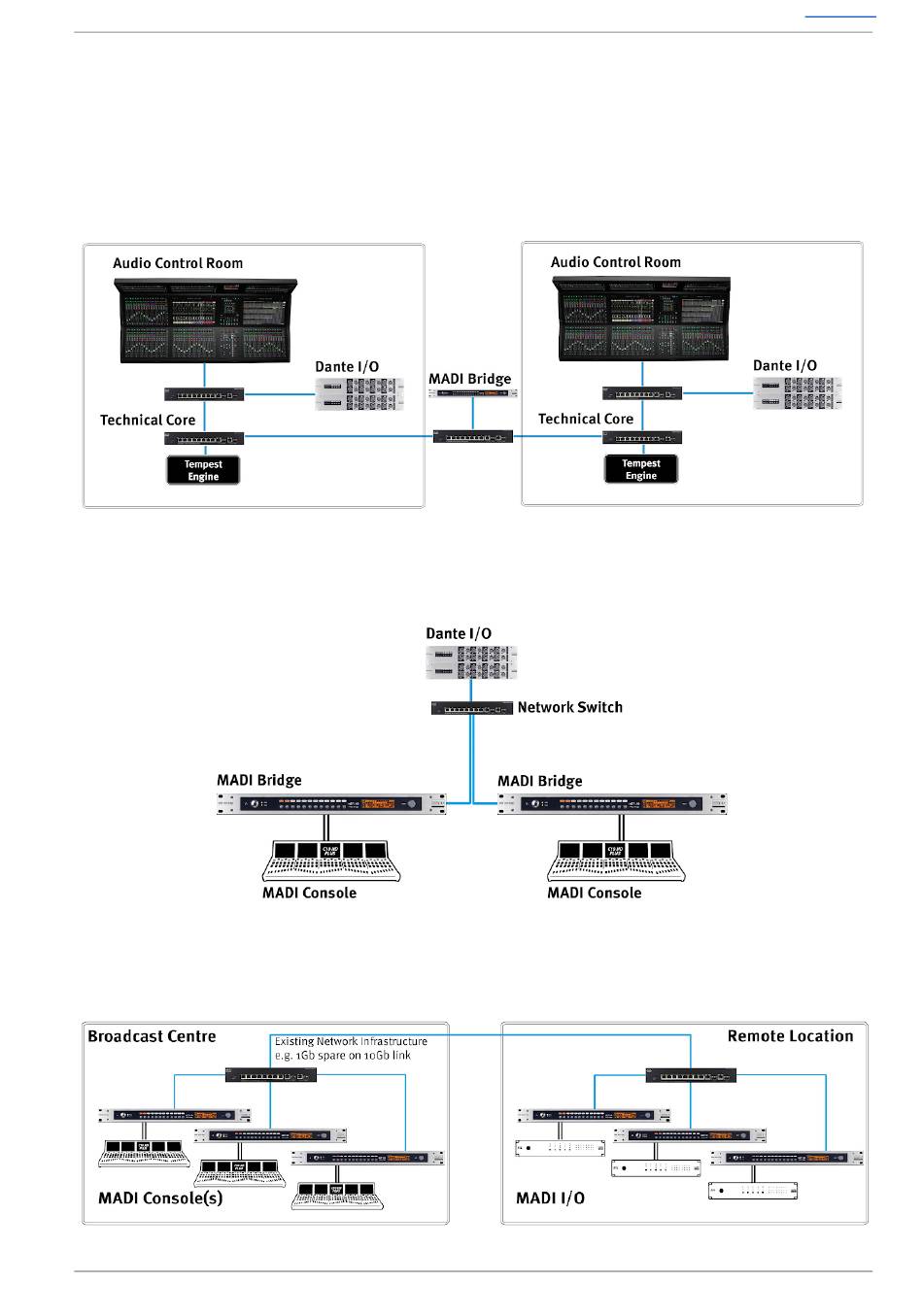

MADI Connectivity for a System T Network
This provides MADI connectivity available to all networked System T consoles. The MADI Bridge can
also be used as a clock master for the Dante network or to provide external TDM devices with a
clock source.
Dante Network I/O Integration for MADI Consoles
This allows the addition of Dante networked devices to existing MADI infrastructure.
Leveraging Existing Network Infrastructure
Up to 8 MADI streams can be transmitted through 1Gb bandwidth - 512 channels at 48 kHz in each
direction.
