MADI Bridge User Guide

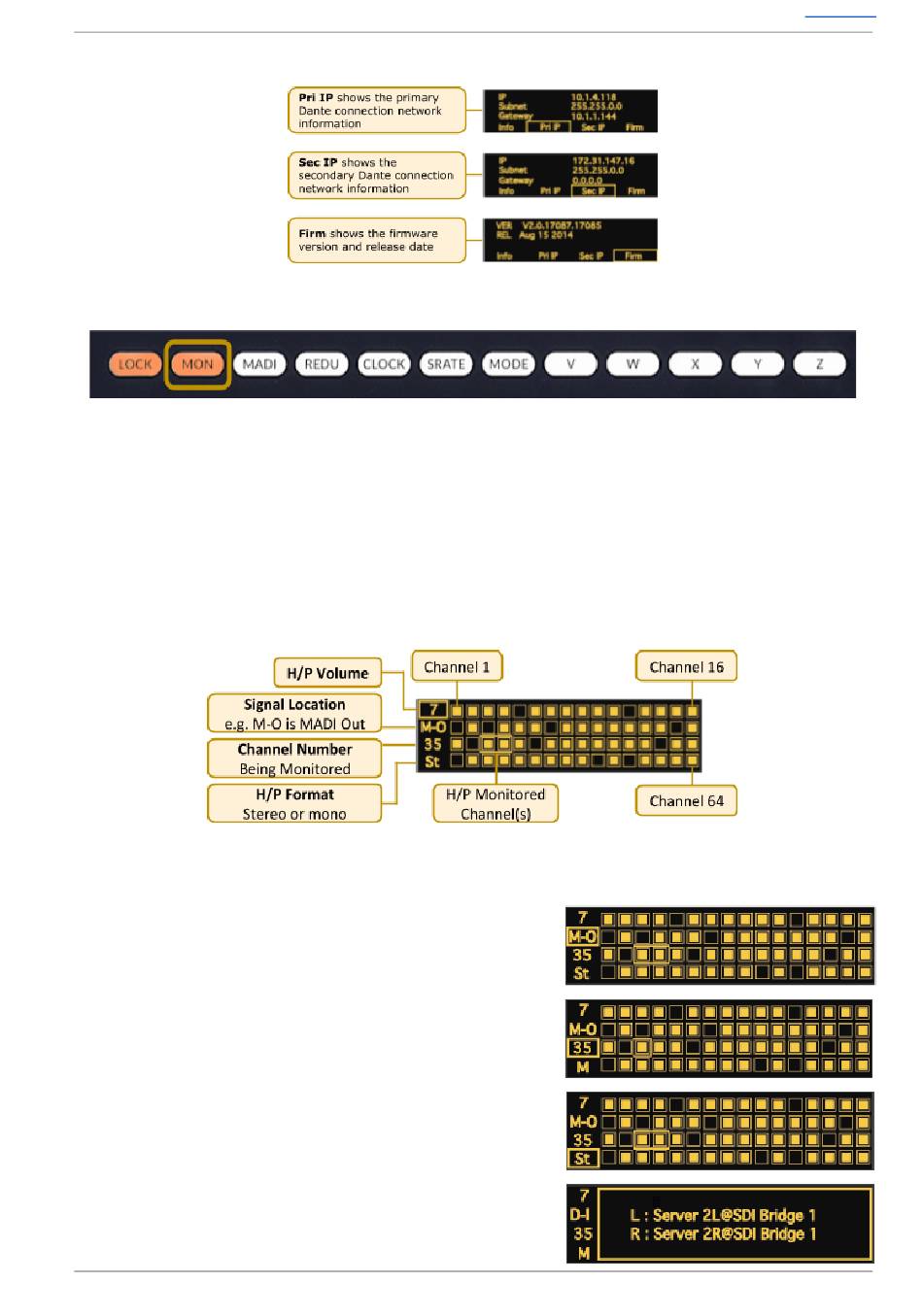

Turning the SELECT encoder scrolls through the info pages:
MON
Pressing the MON button brings up the Monitor menu or Channel Name page. Press the MON
button again to navigate between these pages. The chosen page will be remembered when
navigating to the MON page in future.
When in the Monitor menu, rotating the SELECT encoder alters the parameter highlighted by the
focus box on the left. Pushing the encoder scrolls down through the 4 options. These options are:
Headphone volume
●
Signal location
●
Channel number
●
Format
●
By default when entering the monitoring page the encoder will adjust the headphone volume.
Pressing the SELECT encoder will move the focus to alter Signal Location . The options are:
M-I MADI Input
●
M-O MADI Output
●
D-I Dante Input
●
D-O Dante Output
●
When Channel Number is in the focus box rotating the
encoder moves through the channels. This is displayed both
by the channel number and the focus box around the signal
present meters.
Format. When a Stereo channel is selected the left channel
number is displayed and the focus box surrounds 2 signal
present meters.
The Channel Name view displays the 'Channel Label' name
as entered in Dante Controller. When looking at D-I or M-O
the name displayed will be the channel label and the device
that is routed to the unit across the network.
