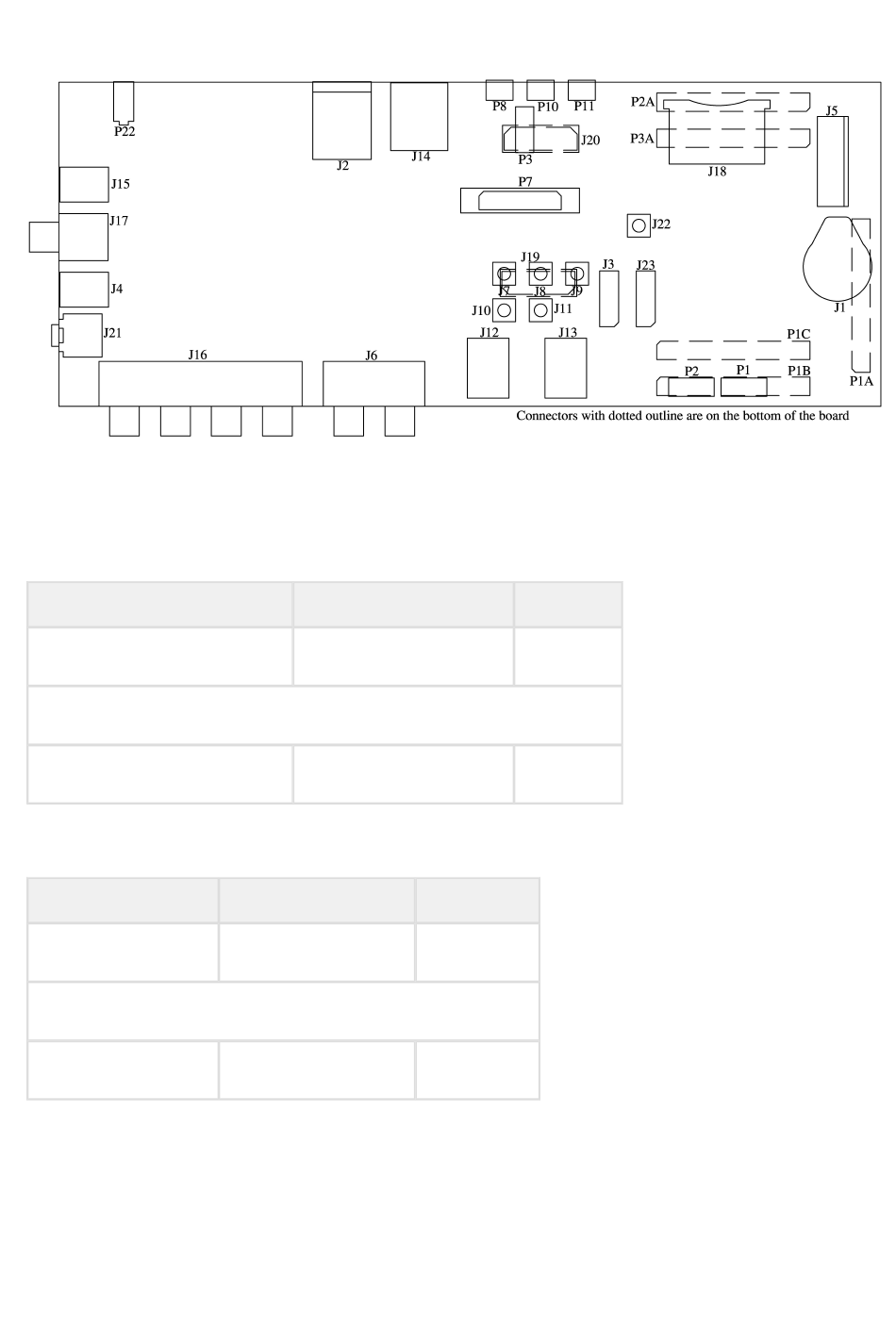

3.6.1 Battery Holder (J1)

The battery holder is not populated on the board. To use the holder, purchase the part listed in the
table and solder onto the board.
Part Description
16 mm Coin Cell Battery Holder
Battery
3V Battery

3.6.2 Ethernet Connector (J2)

Part Description
RJ45
Mating Cable
Standard Ethernet cable

3.6.3 Link Port_JTAG Connectors (J3, J23)

The link port/JTAG connectors provide access to the link port and JTAG signals of the ADSP-SC589
processor. J3 supports link port 0 and the J23 connector supports link port 1.
ADSP-SC589 EZ-Board® Evaluation System Manual
Manufacturer
Memory Protection Devices
Panasonic
Manufacturer
PULSE ELECTRONICS
Part Number
BH600
CR1632
Part Number
J0011D21BNL
