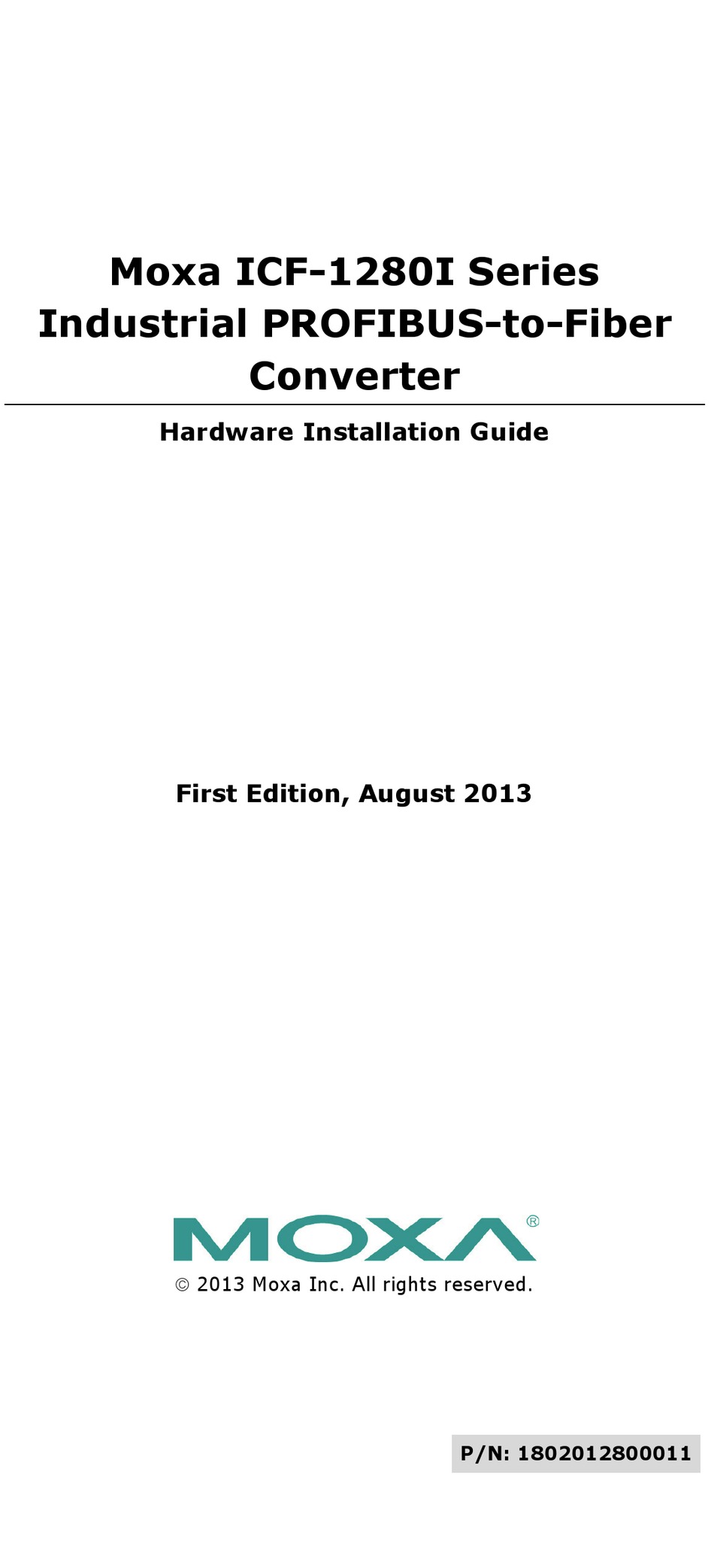

- Page 1 Moxa ICF-1280I Series Industrial PROFIBUS-to-Fiber Converter Hardware Installation Guide First Edition, August 2013 2013 Moxa Inc. All rights reserved. P/N: 1802012800011...
-
Page 2: Auto/Manual Baudrate Settings
PROFIBUS transmission up to 4 km (for multi-mode models) or up to 45 km (for single-mode models). In addition, the ICF-1280I series converters have dual fiber ports that can be used to form a ring topology for redundant transmission, and avoid package lost when a fiber path is broken. -
Page 3: Reverse Power Protection
When this occurs, the engineers will not be able to easily locate the failed device because the entire PROFIBUS network is down. To avoid this situation, the ICF-1280I series converter has a mechanism to detect and recognize noise signals. If the bus fails on one side, the noise signal will not propagate through the ICF-1280I converter and affect additional bus segments. -
Page 4: Redundant Ring
Further descriptions and troubleshooting can be found in the Troubleshooting table. Redundant Ring The ICF-1280I series converters can connect PROFIBUS devices in a redundant ring topology. Use the DIP switch to configure all the ICF- 1280I converters to Redundant Ring mode. When a PROFIBUS master... -
Page 5: Package Checklist
Features Redundant Ring mode for fiber communication backup with zero • recovery time Remote Fiber Diagnosis • Auto baudrate detection and data speeds up to 12 Mbps • PROFIBUS bus fail safe • Alarm by relay output • Provide 2 kV galvanic isolation •... -
Page 6: Top View
Insert the top of the DIN rail into the slot just below the stiff metal spring. STEP 2: The DIN-rail attachment unit will snap into place as shown below. To remove the ICF-1280I series converter from the DIN rail, simply reverse Steps 1 and 2 above. - 6 -... -
Page 7: Fiber Cable
Slot Time Settings Although ICF-1280I series converters can be connected in different topologies with a large number of units, the total cable length and network topology can give rise to frame delays. A sufficient slot time is required to prevent the PROFIBUS master from timing out. -
Page 8: Dip Switch Settings
≥ 3, and the slot time < 262128. DIP Switch Settings There are 8 DIP switches on the top panel of the ICF-1280I series converter. All DIP switches except SW5 are set to the factory default OFF position. -
Page 9: Led Indicators
In such cases, it is recommended to use an ICF-1180I series converter. Please use the ICF-1180I series with Rev. 1.3, or higher versions, to connect with the ICF-1280I series. LED Indicators There are 7 LED indicators on the front panel of the ICF-1280I series converter. Color Description... - Page 10 Troubleshooting LED Indicators and Fiber Diagnosis Status Description Status/Troubleshooting Ready Flashing Fiber diagnosis Check Fault LED; green finished At least one converter is in Fiber Diagnosis mode; Check PROFIBUS master settings; Tx and Rx cables crossed Flashing Detecting No PROFIBUS node; baudrate No PROFIBUS signal received;...
-
Page 11: Specifications
ATTENTION This is a Class 1 laser/LED product. Do not stare into the laser beam. Specifications PROFIBUS Communication PROFIBUS Interface PROFIBUS DP Number of Ports Connector DB9 female Isolation Protection 2 kV Baudrate 9.6 Kbps to 12 Mbps Auto Baudrate Compliant with EN 50170 Fiber Communication Connector type... - Page 12 Power Input Power Voltage 12 to 48 VDC Connector Terminal block Power Line Protection IEC 6000-4-5 Level 3 (2 kV) Surge Protection Power Polarity Protection Protects against V+/V- reversal Support over Currents 1.1 A Protection Power Consumption Single mode: 165 mA @24 V Multi mode:140 mA @24 V Relay Output Supports 1 digital output relay to alarm...
