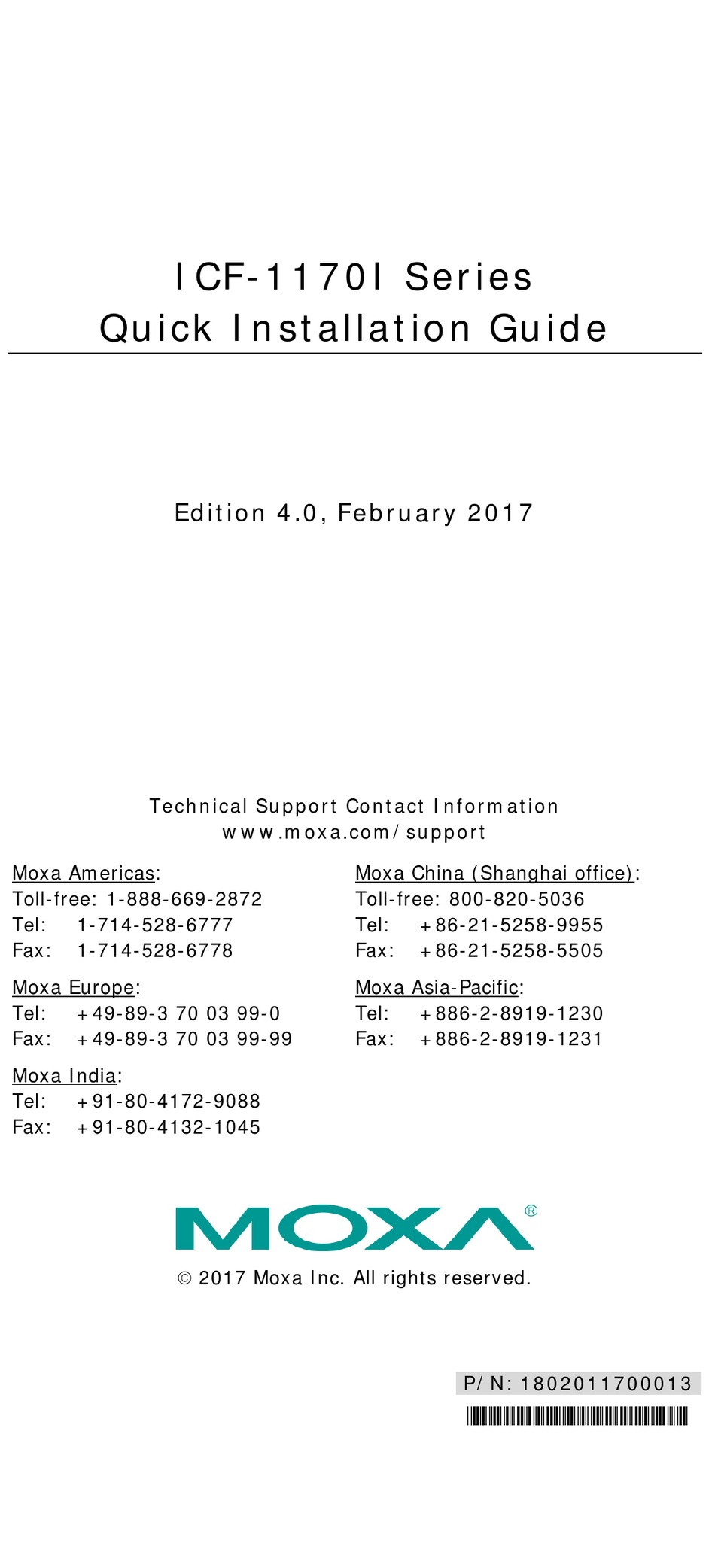

Quick Installation Guide
Moxa Americas:
Toll-free: 1-888-669-2872
Tel:
1-714-528-6777
Fax:
1-714-528-6778
Moxa Europe:
Tel:
+49-89-3 70 03 99-0
Fax:
+49-89-3 70 03 99-99
Moxa India:
Tel:
+91-80-4172-9088
Fax:
+91-80-4132-1045
ICF-1170I Series
Edition 4.0, February 2017
Technical Support Contact Information
www.moxa.com/support
2017 Moxa Inc. All rights reserved.
Moxa China (Shanghai office):
Toll-free: 800-820-5036
Tel:
+86-21-5258-9955
Fax:
+86-21-5258-5505
Moxa Asia-Pacific:
Tel:
+886-2-8919-1230
Fax:
+886-2-8919-1231
P/N: 1802011700013
*1802011700013*
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Moxa Technologies ICF-1170I-M-ST
Summary of Contents for Moxa Technologies ICF-1170I-M-ST
- Page 1 ICF-1170I Series Quick Installation Guide Edition 4.0, February 2017 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0 Tel: +886-2-8919-1230 Fax:...

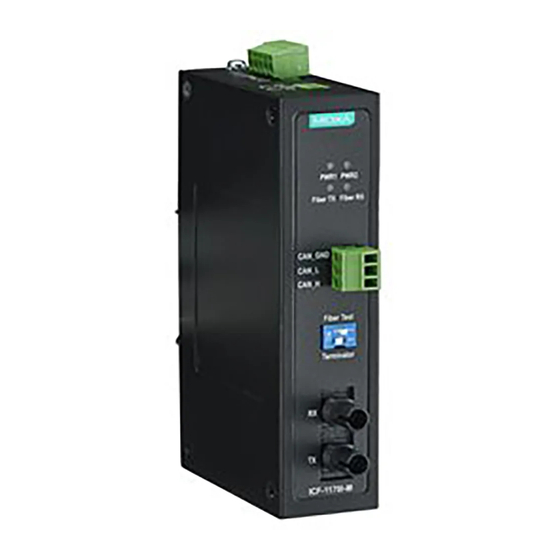

- Page 2 Overview Introduction The ICF-1170I series is a CAN-to-fiber optic converter that secures data transmission by using fiber optic transmission to provide complete isolation and protection against EMI. The ICF-1170I series can separate and protect critical segments of the system from the rest of the CAN network and is protocol independent, allowing it to work with all of the different CAN protocols and frame lengths.
-
Page 3: Package Checklist
Alarm Contact Output The ICF-1170I supports dual power inputs for redundancy. When one power input fails, the relay will be triggered. Be sure to install the dual power inputs for the ICF-1170I series, and choose the correct relay output when connecting the alarm. Features •... - Page 4 Mounting Dimensions (Unit: mm) ICF-1170I-M-ST Top View Front View - 4 -...
-
Page 5: Fiber Cable
ATTENTION Electrostatic Discharge Warning! To protect the product from damage due to electrostatic discharge, we recommend wearing a grounding device when handling your ICF-1170 series. Mounting The aluminum DIN-rail attachment plate should be fixed to the back panel of the ICF-1170I series when you take it out of the box. If you need to reattach the DIN-rail attachment plate to the ICF-1170I, make sure the stiff metal spring is situated towards the top, as shown in the figures below. -
Page 6: Switch Settings
Switch Settings There are two DIP switches on the front panel of the ICF-1170I series. 120 Ω Terminator Switch 1 Enable Disable OFF (default) Fiber Test Mode Switch 2 Enable Disable OFF (default) LED Indicators There are 4 LEDs on the front panel of the ICF-1170I. Color Function PWR 1... -
Page 7: Ordering Information
EN61000-4-6 (CS), Criteria B, Level 2 En61000-4-8 (PFMF), Criteria A, Level 3 Freefall IEC 60068-2-32 MTBF 792085 hrs. Ordering Information Available models: • ICF-1170I-M-ST: CAN-to-fiber converter, multimode, ST connector. • ICF-1170I-M-ST-T: CAN-to-fiber converter, multimode, ST connector, -40 to 85°C. - 7 -...
