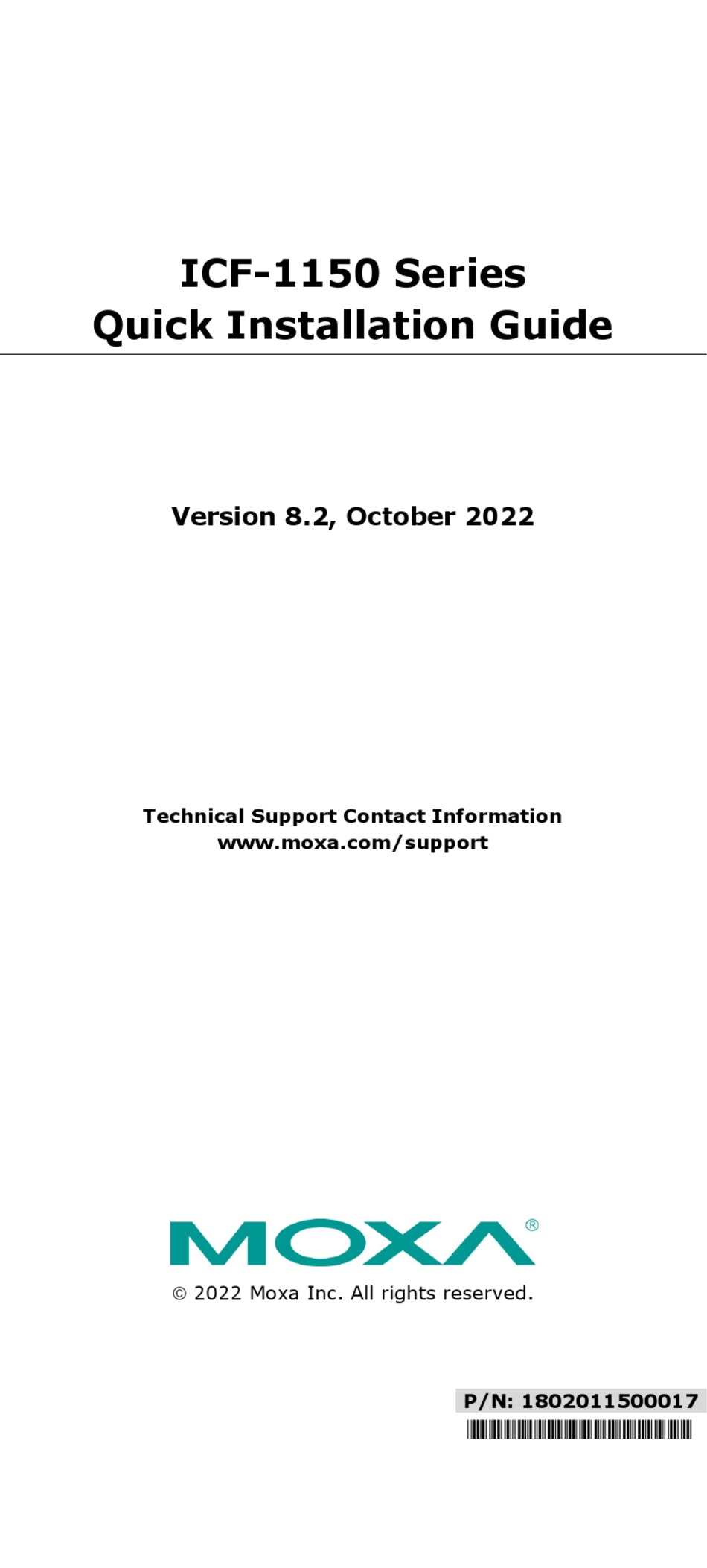

- Page 1 ICF-1150 Series Quick Installation Guide Version 8.2, October 2022 Technical Support Contact Information www.moxa.com/support 2022 Moxa Inc. All rights reserved. P/N: 1802011500017 *1802011500017*...
-
Page 2: Reverse Power Protection
3-Way Communication The ICF-1150 series supports 2 serial ports. The D-sub connector is for RS-232 communication and the removable terminal block is for RS-422 or RS-485 communication. The 3 ports (2 serial ports and one fiber port) are completely independent. - Page 3 ATTENTION The ICF-1150 is designed to receive data from one port and send data to the other ports. If the ICF-1150 receives data from 2 ports at the same time, a data error may occur on all the RX ports. Rotary Switch for Setting the Pull Up/Down Resistor Since the RS-485 port can support multi-drop connections or daisy-chain connections, system...
-
Page 4: Package Checklist

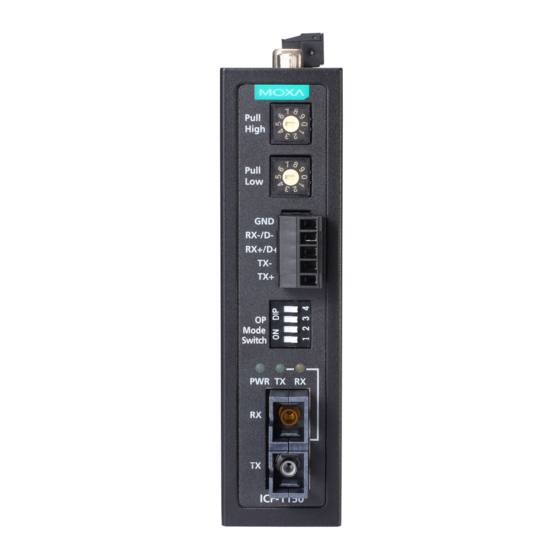

the transmitting unit, which then blocks the signal. Users should ensure that the total fiber ring length is less than 100 km when using either single-mode models or multi-mode models. Features • “Ring” or “Point to Point” transmission • Extend RS-232/422/485 transmission distance: up to 40 km with single-mode—ICF-1150-S series ... - Page 5 ICF-1150-ST Top View Front View - 5 -...
-
Page 6: Pin Assignment
STEP 2: The DIN rail attachment rail into the slot just below the stiff unit will snap into place as shown metal spring. below. To remove the ICF-1150 series from the DIN rail, simply reverse Steps 1 and 2 above. Pin Assignment RS-232 –... -
Page 7: Fiber Cable
RS-422 4-wire RS-485 2-wire RS-485 Data - Rx + Rx + Data + Tx - Tx - – Tx + Tx + – Fiber Cable SC-Port Pinouts SC-Port to SC-Port Cable Wiring ST-Port Pinouts ST-Port to ST-Port Cable Wiring ATEX and IECEx Information 1. -
Page 8: Federal Communications Commission Statement
ATTENTION This is a Class 1 laser/LED product. Do not stare into the laser beam. Federal Communications Commission Statement FCC: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. -
Page 9: Led Indicators
NOTE Direction Control and Data Format Setting require the model version v1.2.0 or later. RS-485 Data Direction Control Settings RS-485 Data Direction Control S3 Pin 1 Auto Baudrate Fixed Baudrate Data Format Settings Data Format S3 Pin 2 S3 Pin 3 S3 Pin 4 7 Bits 8 Bits... -
Page 10: Specifications
Fiber Tx Green When sending serial data from the fiber port Fiber Rx Yellow When receiving data from the fiber port Specifications Serial Communication Signals for RS-232 TxD, RxD, SGND Signals for RS-422 TxD+, TxD-, RxD+, RxD-, SGND Signals for 4-wire RS-485 TxD+, TxD-, RxD+, RxD-, SGND Signals for 2-wire RS-485 Data+, Data-, SGND... - Page 11 Power: 4 kV; Signal: 1 kV EN 61000-4-6 (CS): 150 kHz to 80 MHz: 3 V/m EN 61000-4-8 (PFMF) Freefall IEC 60068-2-32 MTBF ICF-1150 : 2,298,766 hrs ICF-1150I : 1,770,450 hrs Pay specific attention to the following: 1. For indoor use and pollution degree II, wipe with a dry cloth when cleaning up the labeling.
