INSYS Modem 56k AC/DC 4.2

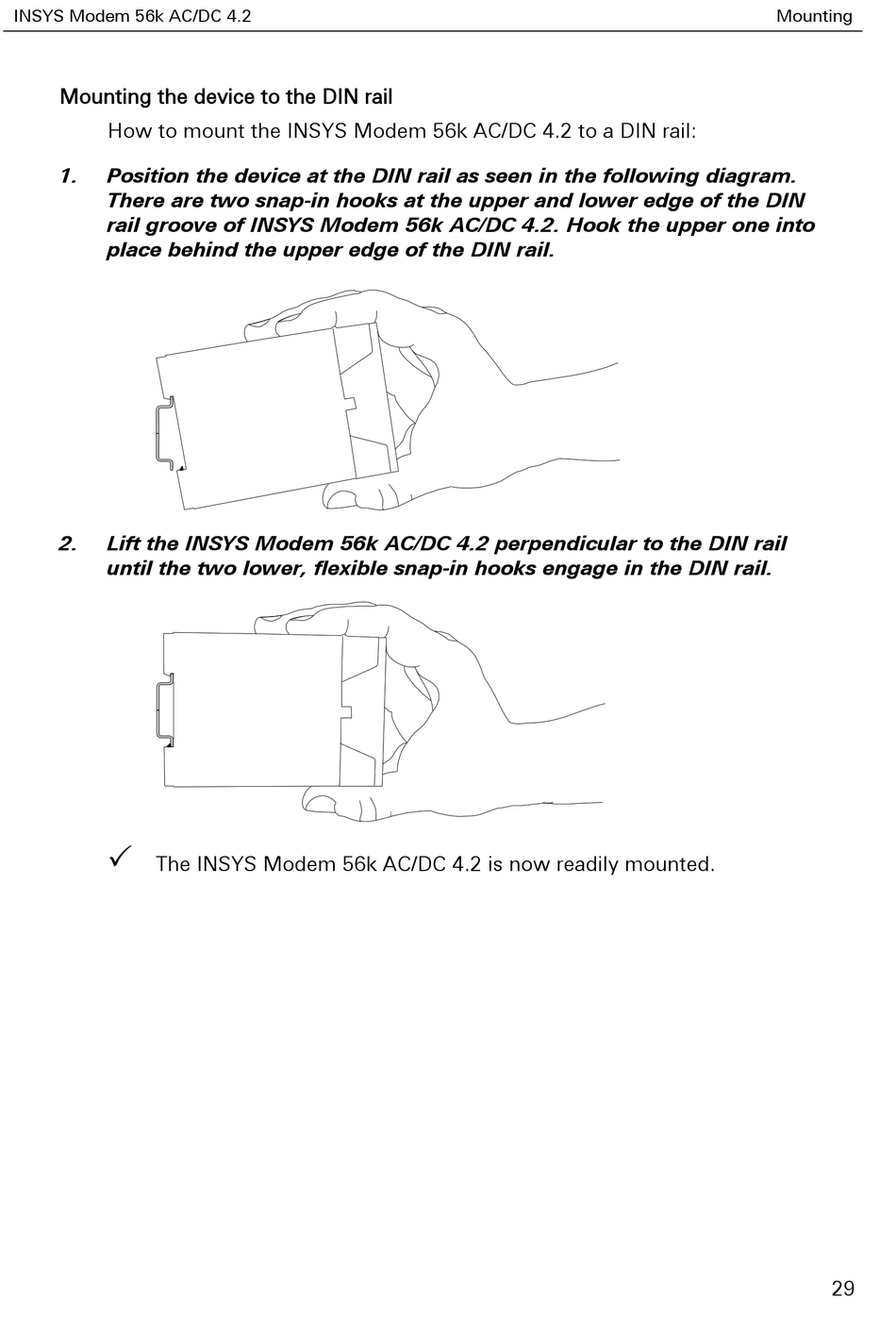

Mounting the device to the DIN rail
How to mount the INSYS Modem 56k AC/DC 4.2 to a DIN rail:
1.
Position the device at the DIN rail as seen in the following diagram.
There are two snap-in hooks at the upper and lower edge of the DIN
rail groove of INSYS Modem 56k AC/DC 4.2. Hook the upper one into
place behind the upper edge of the DIN rail.
2.
Lift the INSYS Modem 56k AC/DC 4.2 perpendicular to the DIN rail
until the two lower, flexible snap-in hooks engage in the DIN rail.
The INSYS Modem 56k AC/DC 4.2 is now readily mounted.
Mounting
29
