Starting the Nano ITC

Once you have completely set up the calorimeter and computer system, you can start the instrument as
follows:
1 Turn on the surge suppressor power switch and the computer system and monitor.
2 Turn on the power switch to the calorimeter, which is located on the back panel. The front LED will
light up green when in the "on" position.
Power LED light

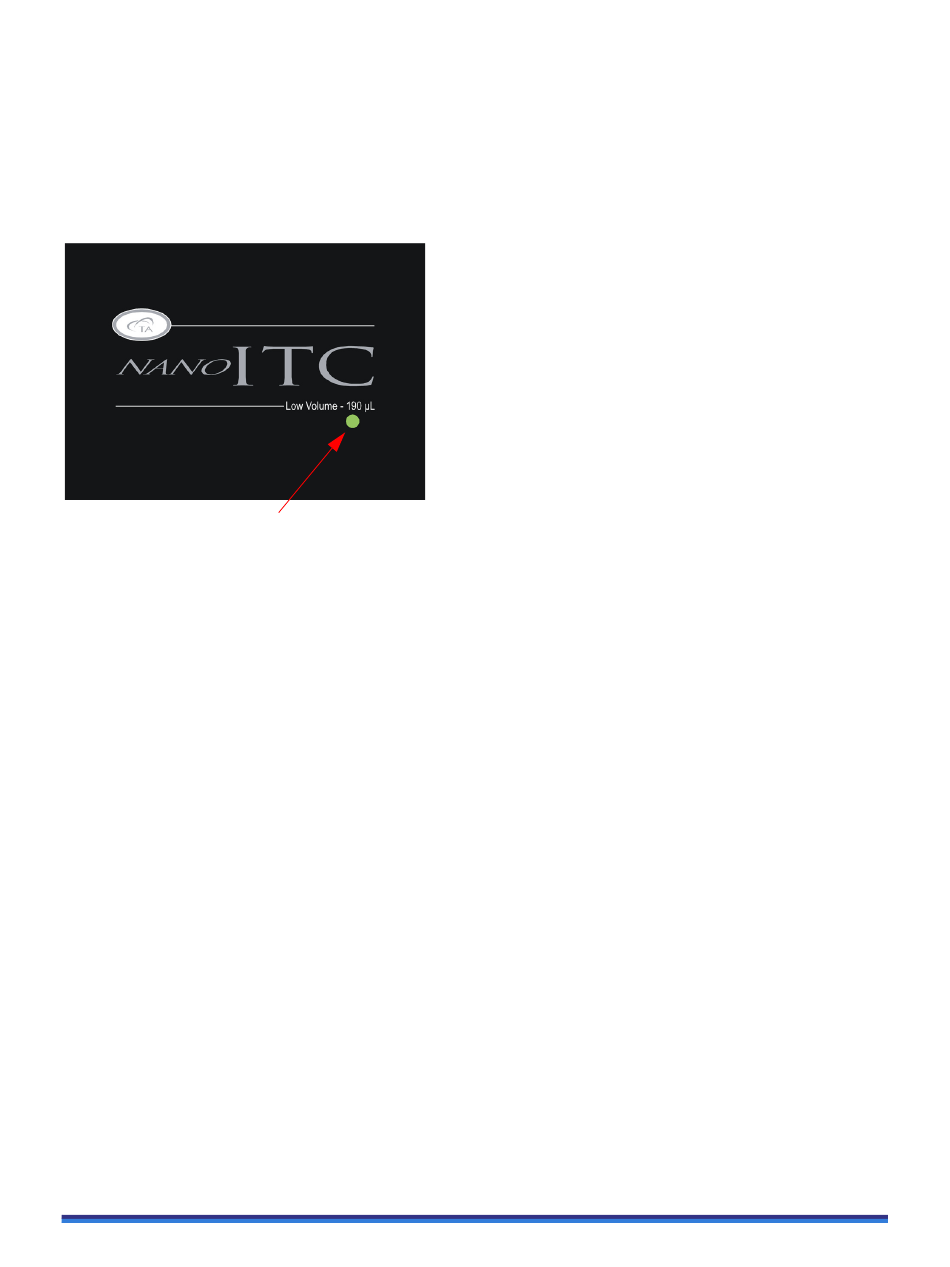

Figure 8 LED location on Nano ITC Low Volume instrument.
3 Start the ITCRun software on the computer. You are now ready to begin preparing to run an experiment.
Page 20 Nano ITC Getting Started Guide
