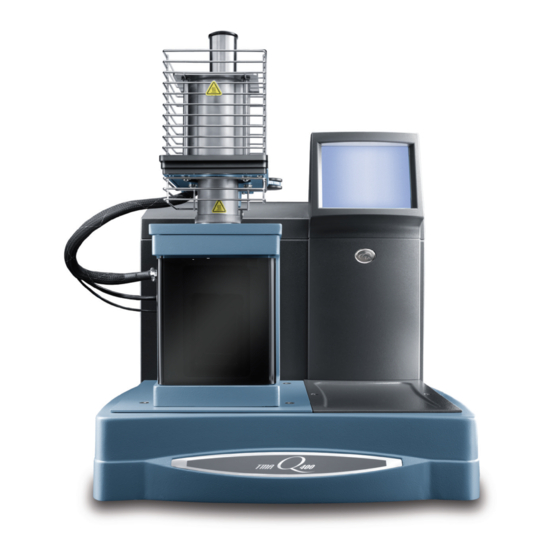

This procedure covers the steps for properly packing up the TMA Q400 for shipment.

Packing Procedure

1
Remove the probe and stage from the instrument
2
Remove the outer cover around the shuttle assembly.
3

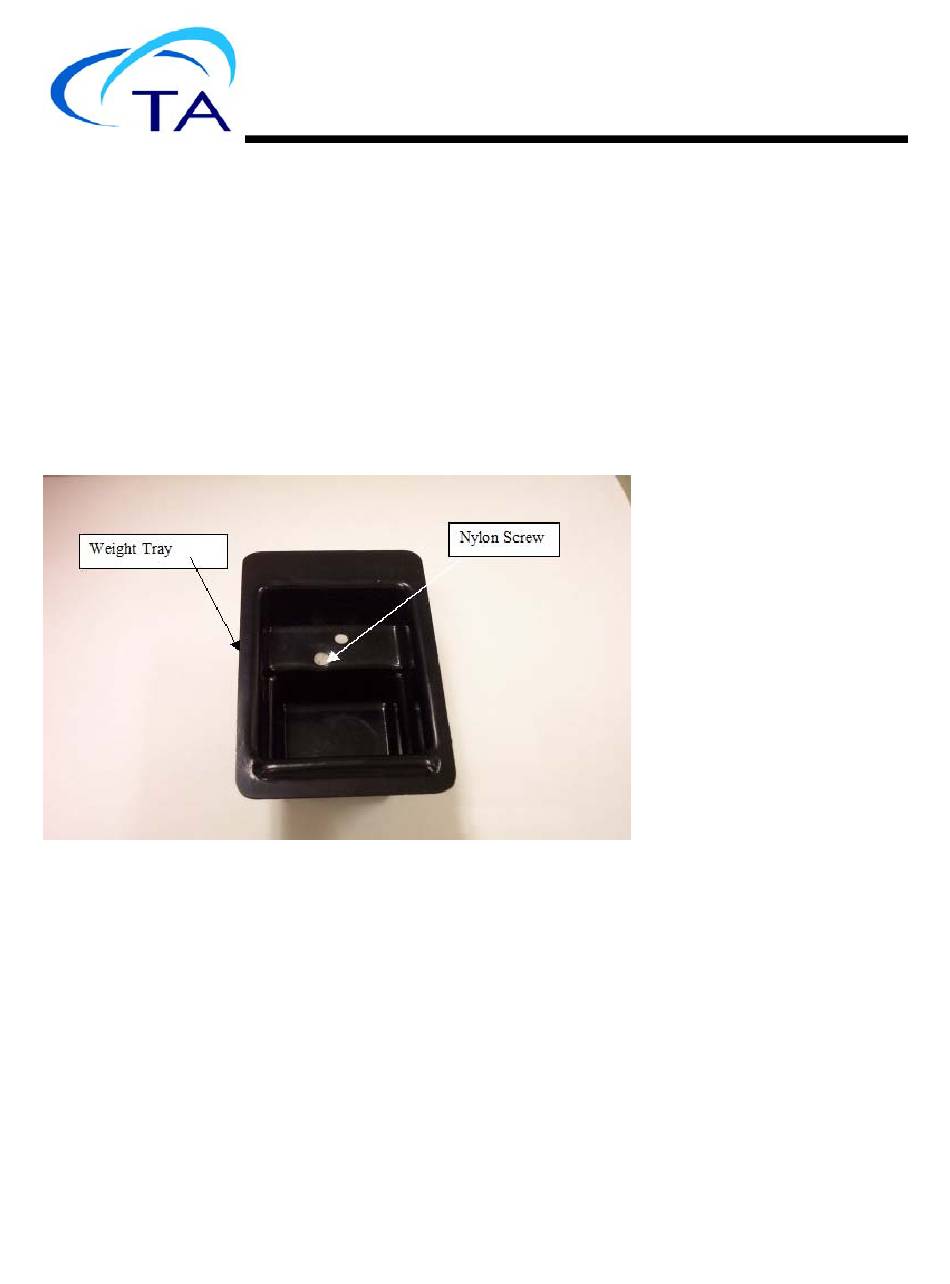

Remove the weight tray. Tape the nylon screw in place and lay the weight tray in the top of the furnace.
See Figures 1 and 2.
Figure 1
Issued June 2017
TA Instruments
Packing the TMA Q400
Page 1 of 6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TMA Q400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TA Instruments TMA Q400

Summary of Contents for TA Instruments TMA Q400

  • Page 1 TA Instruments Packing the TMA Q400 This procedure covers the steps for properly packing up the TMA Q400 for shipment. Packing Procedure Remove the probe and stage from the instrument Remove the outer cover around the shuttle assembly. Remove the weight tray. Tape the nylon screw in place and lay the weight tray in the top of the furnace.
  • Page 2 Figure 2 Remove the 8 shoulder screws from the front support bracket. Figure 3 Carefully slide the front support bracket between the upper and lower suspensions, behind the weight tray mounting bracket. Figure 4 Page 2 of 6...
  • Page 3 Carefully slide the rear supports between the upper and lower suspensions. Figure 5 Install the shoulder bolts through the front support bracket and thread them into the rear support brackets. Figure 6 Remove one of the bolts from the outer clamp and install the outer clamp. The clamp should go above and below the upper and lower suspensions.
  • Page 4 Install the bolt in the other end of the outer clamp and tighten. The suspension is now immobilized. Figure 8 10 Install the rear shipping foam support under the lower weights. Figure 9 11 Lower the furnace. Tape the weight tray into the top of the furnace. Page 4 of 6...
  • Page 5 12 Place the cardboard sleeve over the furnace lift shaft See Figures 10 and 11. Figure 10 Figure 11 Page 5 of 6...
  • Page 6 13 Tighten the lockdown cap into the top of the furnace lift shaft. This immobilizes the furnace. Figure 12 14 On the Q400 display panel, press the Control button. 15 Press the Shutdown button, then press Apply. Wait for the display screen to show that the instrument is shutdown and it is safe to turn off the instrument.
