1. Remove the probe and stage from the instrument.
2. Remove the outer cover around the shuttle assembly.
3. Remove the weight tray. Tape the nylon screw in place and lay the weight tray in
the top of the furnace. (Fig 1 & 2).
Weight Tray
Ehc

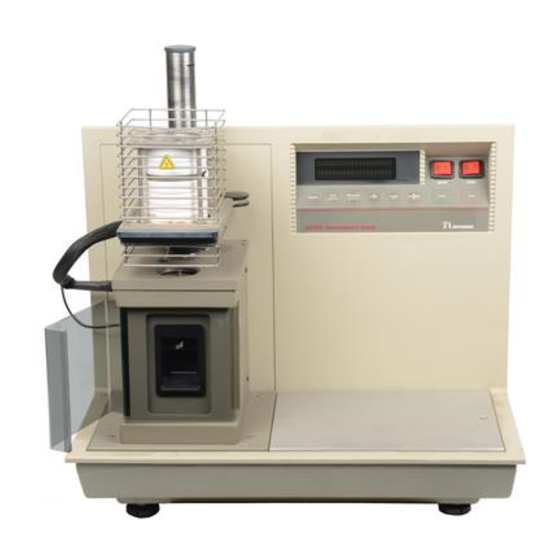

TMA 2940/Q400 Packup instructions
Figure 1
Figure 2
Back to Thermal Menu
Nylon Screw
1 of 1
Back to Top
Advertisement
Related Manuals for TA Instruments TMA 2940
Summary of Contents for TA Instruments TMA 2940
- Page 1 TMA 2940/Q400 Packup instructions Back to Thermal Menu 1. Remove the probe and stage from the instrument. 2. Remove the outer cover around the shuttle assembly. 3. Remove the weight tray. Tape the nylon screw in place and lay the weight tray in the top of the furnace.
- Page 2 TMA 2940/Q400 Packup instructions Back to Thermal Menu 4. Remove the 8 shoulder screws from the front support bracket. (Figure 3). Outer Clamp Rear Supports (2) Front Support Shoulder bolts (8) Figure 3 5. Carefully slide the front support bracket between the upper and lower suspensions, behind the weight tray mounting bracket (Fig.
- Page 3 TMA 2940/Q400 Packup instructions Back to Thermal Menu 6. Carefully slide the rear supports between the upper and lower suspensions. (Fig 7) Rear Supports Shuttle Lift Arm Figure 7 7. Install the shoulder bolts through the front support bracket and thread them into the rear support brackets (Fig 8).
- Page 4 TMA 2940/Q400 Packup instructions Back to Thermal Menu 8. Remove one of the bolts from the outer clamp and install the outer clamp. The clamp should go above and below the upper and lower suspensions. (Fig 9) Outer Clamp Upper Suspension...
- Page 5 TMA 2940/Q400 Packup instructions Back to Thermal Menu 9. Install the bolt in the other end of the outer clamp and tighten. (Fig 10). 10. The suspension should now be immobilized. Figure 10 11. Install the rear shipping foam support under the lower weights. (Fig 11)
- Page 6 TMA 2940/Q400 Packup instructions Back to Thermal Menu 12. Lower the furnace. Tape the weight tray into the top of the furnace. 13. Place the cardboard sleeve over the furnace lift shaft. (Fig 12 & 13) Lockdown Cap Cardboard Sleeve...
- Page 7 TMA 2940/Q400 Packup instructions Back to Thermal Menu 14. Tighten the lockdown cap into the top of the furnace lift shaft. This will immobilize the furnace. 15. If this is a 2940, turn off the power switch. If this is a Q400, go to the next step.
