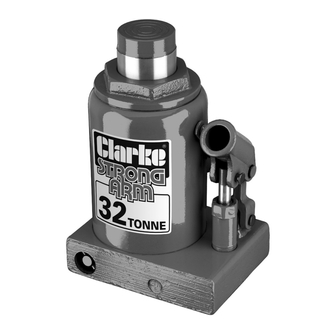

- Page 1 BOTTLE JACK MODEL NO: CBJ32 PART NO: 7620052 OPERATION AND MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS DL0122 - ISS 2...
-
Page 2: Specifications
INTRODUCTION Thank you for purchasing this CLARKE Bottle Jack. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS 1. DO NOT exceed the rated capacity of the jack. 2. DO NOT let anyone operate the jack unless they have read these safety precautions. 3. DO NOT operate the jack if damaged in any way. 4. Use the jack in a well lit work area. 5. -
Page 4: Lifting Operations And Lifting Equipment Regulations 1998
21. DO NOT push a vehicle off the jack or start the engine while supported only by the jack. 22. DO NOT use if an oil leak is apparent. Consult the Clarke Service Department. 23. If more than one jack is used in unison, they must all be of the same rating and be raised at the same speed to reduce the possibility of the load slipping. - Page 5 OVERVIEW Actuating Lever 3 x Handle Tubes Release Valve Oil Filler Plug (behind unit) UNPACKING During transit or storage, it is possible that an air pocket may have developed within the hydraulic ram, and the ram action may therefore appear to be ‘spongy’.
-
Page 6: Operation
OPERATION WARNING: MAKE SURE THAT THE SAFETY PRECAUTIONS ARE STRICTLY FOLLOWED. NO RESPONSIBILITY CAN BE ACCEPTED FOR INCORRECT USE OF THE JACK RAISING A VEHICLE 1. Make sure that the vehicle is stable and is on firm level ground with the wheels chocked before positioning the jack directly below the lifting point. -
Page 7: Maintenance
Do not use the jack unless it is perfectly serviceable. • A slight dampness on the ram is normal, but where leakage is found, the ram seals must be renewed by your CLARKE Spares Department. 2. The jack must be fully inspected annually: •... -
Page 8: Purging Air From The Jack
4. Do not overfill. Only use the correct type of oil such as CLARKE hydraulic oil, part number 3050830 (1 litre). 5. Replace the filler plug. 6. Check the jack for correct operation and purge any air from the system as described below. -
Page 9: Parts Diagram
PARTS DIAGRAM Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 10: Parts List
PARTS LIST ESCRIPTION Top cup O-ring Rectangular ring Reservoir Oil plug T-ring Release valve assembly Ball 6mm Plastic plug Adjusting screw assembly Spring Spring holder Steel ball 3mm Base parts Oil filter pipe Cylinder ring Cylinder O-Ring Bowl washer Piston rod assembly Handle assembly and Hexagon bolts Cutter pin Handle socket assembly... -
Page 11: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
