Menu Settings; Menu Structure; Basic Guide To Setting The Menu Options; Operating Mode (Mode) - IKA RC 5 basic Operating Instructions Manual

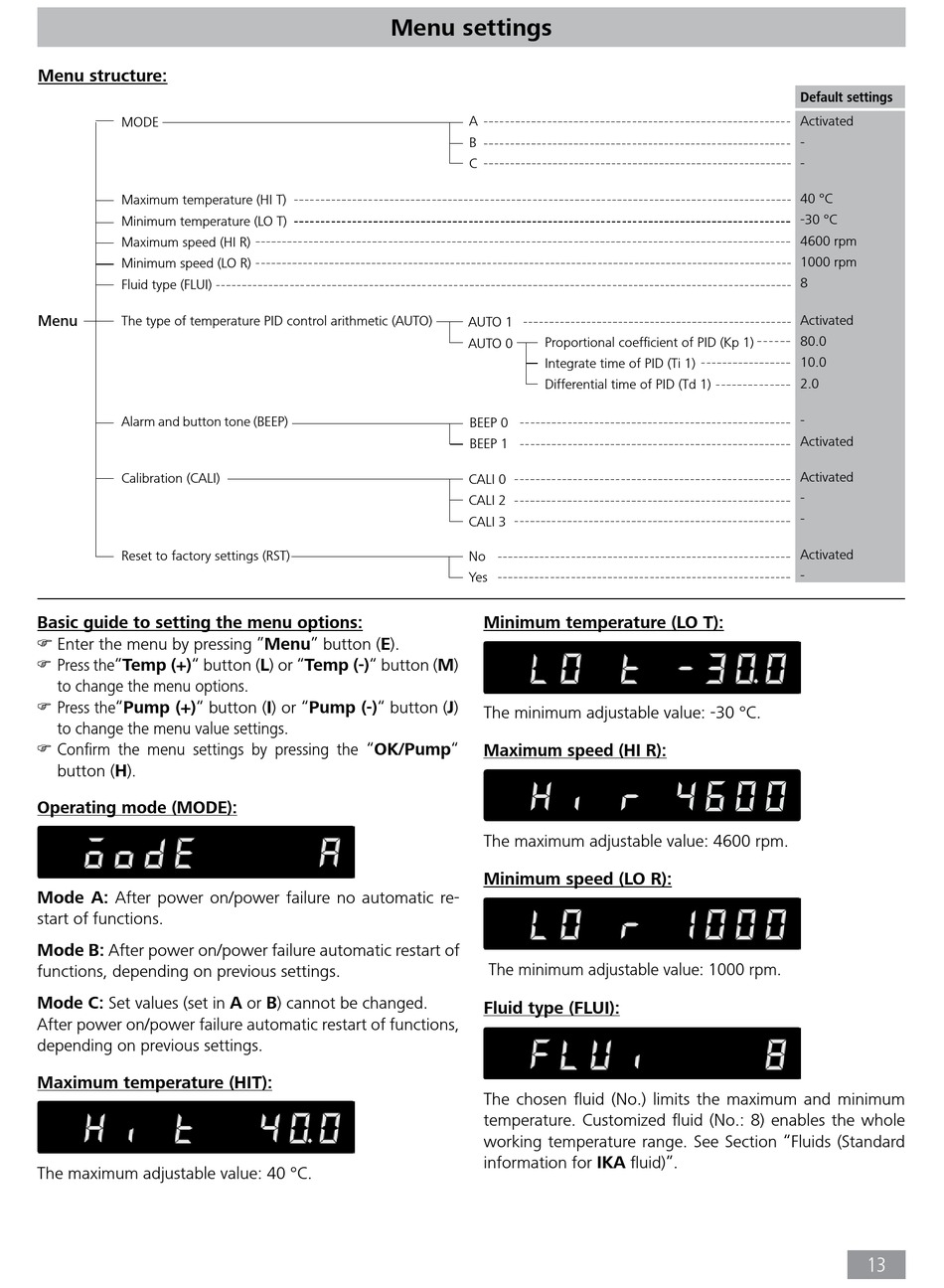

Menu structure:

MODE
Maximum temperature (HI T)
Minimum temperature (LO T)
Maximum speed (HI R)
Minimum speed (LO R)

Fluid type (FLUI)

Menu
The type of temperature PID control arithmetic (AUTO)
Alarm and button tone (BEEP)
Calibration (CALI)
Reset to factory settings (RST)

Basic guide to setting the menu options:

F Enter the menu by pressing "Menu" button (E)�
F Press the"Temp (+)" button (L) or "Temp (-)" button (M)
to change the menu options�
F Press the"Pump (+)" button (I) or "Pump (-)" button (J)
to change the menu value settings�
F Confirm the menu settings by pressing the "OK/Pump"
button (H)�

Operating mode (MODE):

Mode A: After power on/power failure no automatic re-
start of functions�
Mode B: After power on/power failure automatic restart of
functions, depending on previous settings�
Mode C: Set values (set in A or B) cannot be changed�
After power on/power failure automatic restart of functions,
depending on previous settings�
Maximum temperature (HIT):
The maximum adjustable value: 40 °C�

Menu settings

A
B
C
AUTO 1
Proportional coefficient of PID (Kp 1)
AUTO 0
Integrate time of PID (Ti 1)
Differential time of PID (Td 1)
BEEP 0
BEEP 1
CALI 0
CALI 2
CALI 3
No
Yes
Minimum temperature (LO T):
The minimum adjustable value: -30 °C�
Maximum speed (HI R):
The maximum adjustable value: 4600 rpm�
Minimum speed (LO R):
The minimum adjustable value: 1000 rpm�
Fluid type (FLUI):
The chosen fluid (No�) limits the maximum and minimum
temperature� Customized fluid (No�: 8) enables the whole
working temperature range� See Section "Fluids (Standard
information for IKA fluid)"�
Default settings
Activated
-
-
40 °C
-30 °C
4600 rpm
1000 rpm
8
Activated
80�0
10�0
2�0
-
Activated
Activated
-
-
Activated
-
13
