Moving the device:

Empty all fluid in the bath before moving device from one
place to other place�
The device must be lifted by two persons with the upper
handles�
It can also be moved on flat surface by lifting and pushing
the front of the device� It is easy to move the device with
the help of the wheels�
The angle of inclination should never be more than 10 º at
any direction when move the device!
Note: The device must not be moved during operation�
After moving the device, you must wait at least one hour
before restarting the unit�
N
Item Designation
A On/Off button:
B LED, set:
C LED, cooling:
D LED display:
E "Menu" button:
F LED, lock:
G Lock button:
H "OK/Pump" button:
I "Pump (+)" button:
J "Pump (-)" button:
K "Temp" button:
L "Temp (+)" button:
M "Temp (-)" button:
N Fluid level indicator:

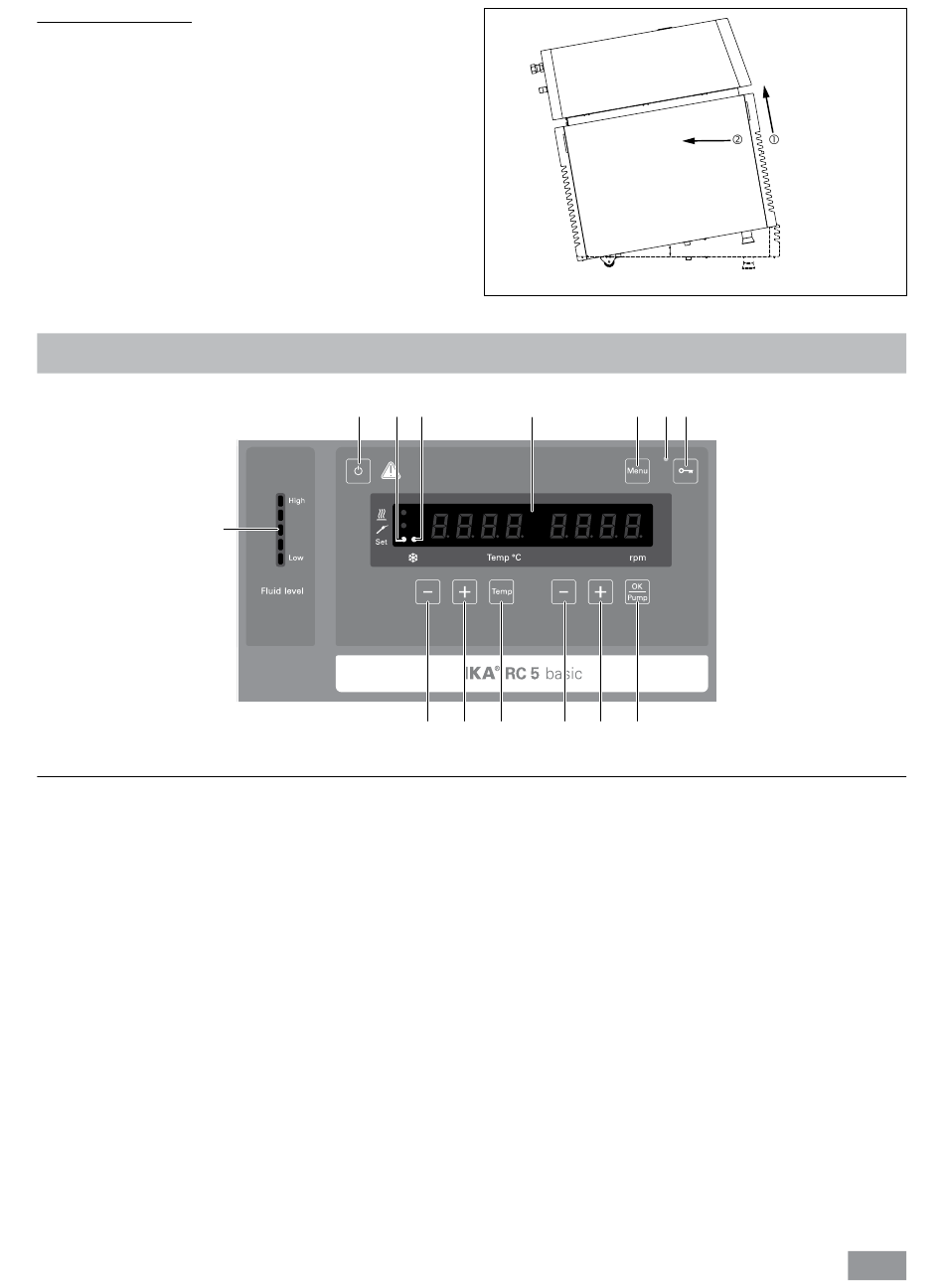

Operator panel and display

A B
Fig. 10
Function
Switch on/off the circulator�
The LED lights up at the same time as the set value is displayed�
The light LED indicate the refrigerating function is activated�
Display the settings and actual values�
Press it once: menu option is display�
Press it once again: back to working screen�
Indicate the buttons are deactivated�
Lock/unlock buttons�
Start/stop the pump function�
Confirm the menu options�
Increase the pump speed setting�
Change the menu value setting�
Decrease the pump speed setting�
Change the menu value setting�
Start/stop the refrigerating function�
Increase the temperature setting�
Navigation, selecting the settings in the menu�
Decrease the temperature setting�
Navigation, selecting the settings in the menu�
Indicate the fluid level (when the fluid level is too low or too high, the bottom or
the top LED segment change into red color)�
Fig. 9
C D
M L K J
max. 10˚
E
F G
I H
