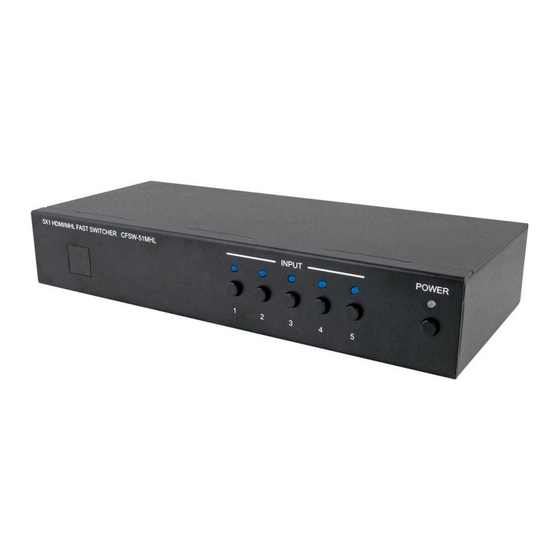

CYP CFSW-51MHL Operation Manual

5 by 1 hdmi/mhl fast switcher
Hide thumbs Also See for CFSW-51MHL:
Table of Contents

Advertisement

Quick Links

Download this manual
CFSW-51MHL
5 by 1 HDMI/MHL Fast Switcher
Operation Manual
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CFSW-51MHL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CYP CFSW-51MHL

Summary of Contents for CYP CFSW-51MHL

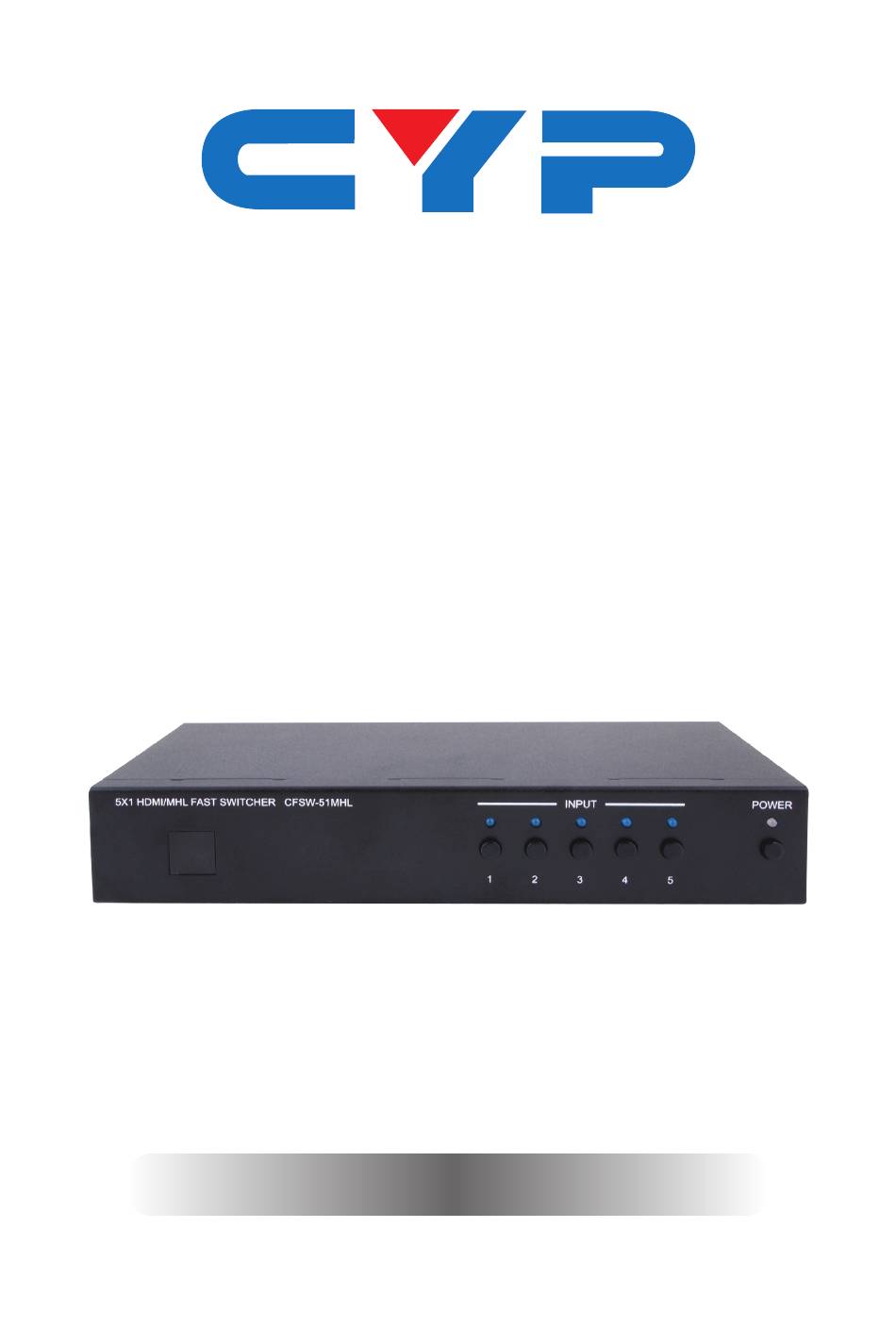

  • Page 1 CFSW-51MHL 5 by 1 HDMI/MHL Fast Switcher Operation Manual Operation Manual...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 Remote Control ........5 6.4 RS-232 Protocol .........6 6.5 Remote Command Protocol ..7 7.

  • Page 6: Introduction

    1. INTRODUCTION The 5 by 1 HDMI/MHL Fast Switcher has MHL (Mobile High-Definition Link) interface integrated on its fifth input which can be used to share high definition video and audio from any of your MHL-ready mobile devices on an HDTV, and simultaneously charge the device whilst connected.

  • Page 7: Features

    5. FEATURES • Supports InstaPort Technology™ • Supports five HDMI input ports, the fifth port is an HDMI/MHL port • Supports one HDMI output • Supports video resolutions up to 1080p@60 Hz • Supports HDMI specification features, including data rates up to 2.25Gbps and12-bit Deep Color •...

  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel 5X1 HDMI/MHL FAST SWITCHER CFSW-51MHL INPUT POWER Receiver Supports reception of IR codes from the system's IR remote control only. INPUT Press the 'INPUT' source button to select the required input source, the blue LED will indicate the selected source.

  • Page 9: Rear Panel

    6.2 Rear Panel HDMI IN RS232 MHL/HDMI HDMI OUT DC 5V IR IN IR IN Connect to the supplied IR extender cable for receiving the IR remote signal for this device only. RS232 Connect to a PC or control system with D-Sub 9-pin cable for RS- 232 control.

  • Page 10: Remote Control

    6.3 Remote Control Power HDMI 1 HDMI 2 HDMI 3 Press this button to switch the HDMI 4 HDMI 5 HDMI 6 device on or to put the device HDMI 7 HDMI 8 Vol + into standby mode. Mute Vol - HDMI 1~5 HDMI Input selection keys.

  • Page 11: Rs-232 Protocol

    6.4 RS-232 Protocol CFSW-51MHL REMOTE CONTROL Assignment Assignment ► ◄ Baud Rate: 19200 bps Data Bit: 8-bit Parity: None Flow Control: None Stop Bit: 1-bit COMMANDS ACTION POWER 00 Power Off (standby) POWER 01 Power On PORT 01 Output Select Input 1...

  • Page 12: Remote Command Protocol

    6.5 Remote Command Protocol Opcode Key Name Opcode Key Name Opcode Key Name 0x00 0x2B 0x4D-0x4F Select Enter Reserved 0x01 0x2C 0x50 Clear Angle 0x02 0x2D-02xF 0x51 Down Reserved Subpicture 0x03 0x30 0x52-0x5F Left Channel Up Reserved 0x04 0x31 0x60 Right Channel Play Function...

  • Page 13: Connection Diagram

    7. CONNECTION DIAGRAM Set-top Box Blu-ray Player Smartphone Satellite Recever Media Player HDMI HDMI HDMI HDMI HDMI to HDMI RS-232 Power Supply HDMI IN RS232 MHL/HDMI HDMI OUT DC 5V IR IN RS-232 Equipped PC or Notebook HDMI IR Extender 60°...

  • Page 14: Specifications

    8. SPECIFICATIONS Video Bandwidth 225 MHz/6.75 Gbps Input Ports 5×HDMI Output Port 1×HDMI Resolution Support VGA~WUXGA@60 (RB) 480i/p, 576i/p, 720p@50/60/120 1080i@50/60, 1080p@24/30/50/60 (MHL only supports 1080p@30 & 1080i@60) ESD Protection Human body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) Power Supply 5 V/2.6 A DC (US/EU standards, CE/FCC/ UL certified)
  • Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
