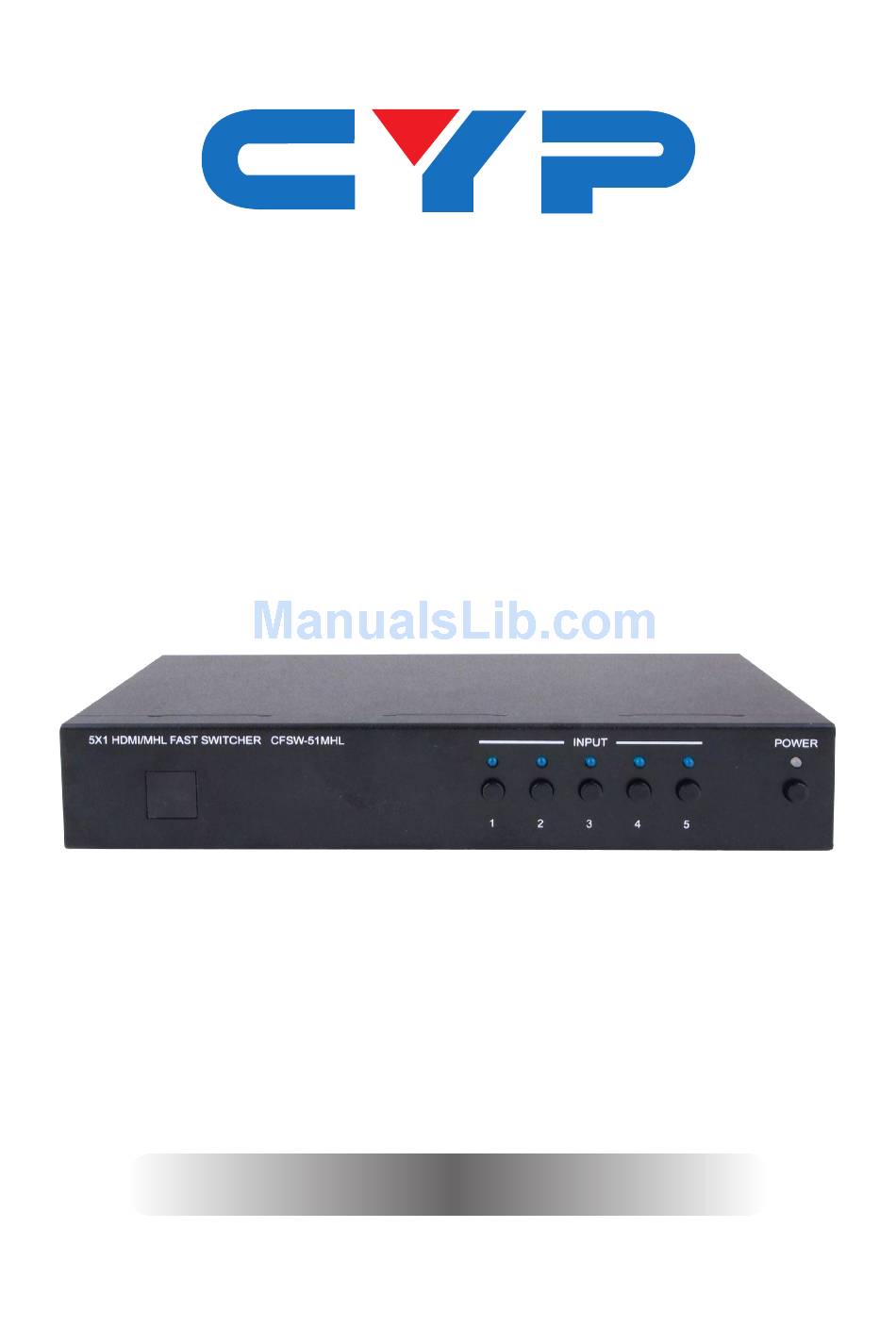

- Page 1 CFSW-51MHL 5 by 1 HDMI with MHL Switcher Operation Manual Operation Manual...
- Page 2 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 3: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents ........1 4. System Requirements ......1 5. Features ............ 2 6. Hardware Description ......3 6.1 Front Panel ..........3 6.2 Rear Panel ...........4 7. Remote Control ........5 8. -
Page 5: Introduction
1. INTRODUCTION This is five input and one output HDMI switcher which has MHL (Mobile High-Definition Link) support integrated on its fifth input port. With the MHL port, you can share high definition video and audio from any of your MHL-ready mobile devices on an HDTV, and charge the connected device at the same time. -
Page 6: Features
5. FEATURES • With Silicon Image’s new InstaPort Technology™ • Supports five HDMI type A with one MHL to HDMI port • Supports one HDMI type A output • Supports video resolution up to 1080p@60Hz • MHL port can charge the connected mobile device •... -
Page 7: Hardware Description

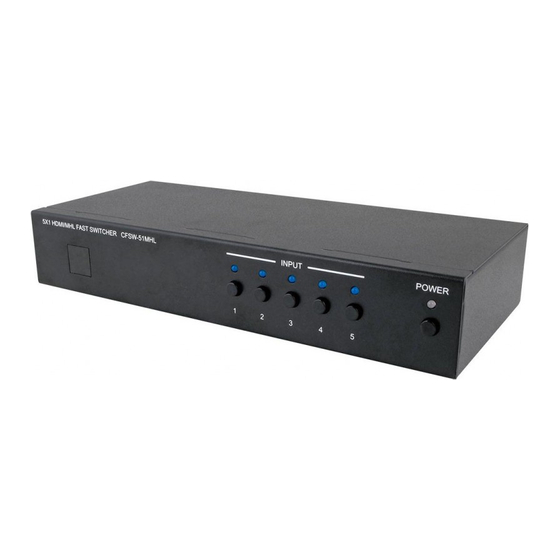

6. HARDWARE DESCRIPTION 6.1 Front Panel 5X1 HDMI/MHL FAST SWITCHER CFSW-51MHL INPUT POWER IR Remote Control Sensor Input selection with LED: Press input button to select input source, the Blue LED will illuminate accordingly. Power button: Press this button to switch on the device or press it again to set it to standby mode. -
Page 8: Rear Panel
6.2 Rear Panel HDMI IN RS232 MHL/HDMI HDMI OUT DC 12V IR IN RS232: This slot is to connect with a PC or control system with D-Sub 9pin cable for RS-232 control. For detail RS-232 commands please refers to section 9. IR IN: Infrared control in port for included infrared receiver cable. -
Page 9: Remote Control
7. REMOTE CONTROL Power button: Press this button to switch on or turn the device to standby mode. HDMI 1 HDMI 2 HDMI 3 HDMI 4 HDMI 5 HDMI 6 HDMI 1~8: HDMI 7 HDMI 8 Vol + This buttons are the input HDMI Mute Vol - hot switching keys for selecting... -
Page 10: Rs-232 Protocols
8. RS-232 PROTOCOLS 8.1 Pin Assignment CS-801H Remote Control Assignment Assignment ► ◄ Baud Rate: 19200bps Data Bit: 8 bits Parity: None Flow Control: None Stop Bit: 1 8.2 Commands Command Action POWER 00 Power Off (standby) POWER 01 Power On PORT 01 Output Select Input 1 PORT 02... -
Page 11: Connection And Installation
AUTO 00 AUTO switch off AUTO 01 AUTO switch on ISP 01 Software ISP process RCP 00-7f (RCP(remote command protocol) command) 9. CONNECTION AND INSTALLATION HDMI HDMI IN RS232 MHL/HDMI HDMI OUT DC 12V IR IN HDMI IR Receiver HDMI HDMI HDMI HDMI... -
Page 12: Specifications
10. SPECIFICATIONS Input Ports 5 x HDMI type A connector ( 1 x MHL to HDMI type A connector Output port 1 x HDMI ESD Protection Human body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) Dimensions (mm) 240(W) x 110(D) x 49(H) Weight(g) Chassis Material Metal... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
