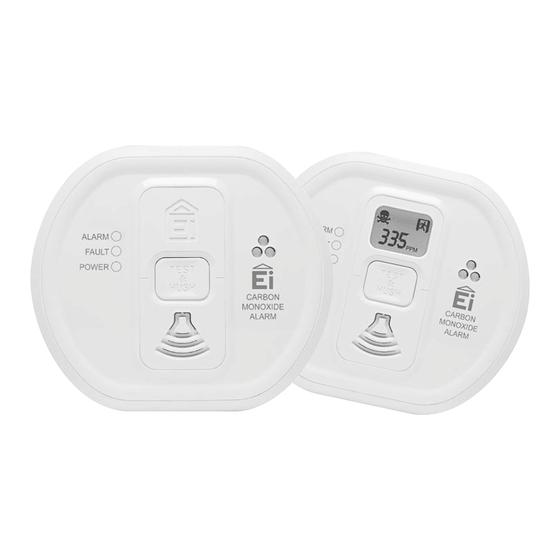

Battery powered carbon monoxide alarm for use in homes, caravans, motor caravans and boats
Hide thumbs Also See for Ei207 Series:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual
Battery Powered
Carbon Monoxide Alarms
Ei207/208 Series
Ei207 / Ei208 Carbon Monoxide Alarm Series
for use in Homes, Caravans, Motor Caravans and Boats
Read and retain carefully for as long as the product is being used. It contains vital information on the
operation and installation of your Alarm. This booklet should be regarded as part of the product.
If you are just installing the Alarm, this booklet must be given to the householder. This booklet is to be
given to any subsequent user.
Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ei207 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ei Electronics Ei207 Series

Summary of Contents for Ei Electronics Ei207 Series

  • Page 1 Battery Powered Carbon Monoxide Alarms Ei207/208 Series Ei207 / Ei208 Carbon Monoxide Alarm Series for use in Homes, Caravans, Motor Caravans and Boats Instructions Read and retain carefully for as long as the product is being used. It contains vital information on the operation and installation of your Alarm.

  • Page 3: Table Of Contents

    page Table of Contents Read This First ..............Carbon Monoxide – The Silent Killer ........Where to place CO Alarms ..........Installation ................Monitoring / Testing & Maintenance ........What to do when the alarm sounds ........How to Protect your Family ..........Technical Specification ..........
  • Page 4 The models listed below are designed for domestic premises, caravans, motor caravans & boats in accordance with EN 50291-1:2010 & EN 50291-2:2010 Model Chart Ei207 Series with Replaceable Batteries (2 x AAA) RF Module Model Capability Supplied Display Ei207 Ei207D...

  • Page 5: Read This First

    1. Read This First Congratulations on becoming the owner of an Ei Carbon Monoxide Alarm. This will help protect you and your household from the dangerous effects of Carbon Monoxide- the silent killer. onto the mounting plate which activates the on/off switch. The indicator lights connecting the power before button testing.

  • Page 6: Carbon Monoxide - The Silent Killer

    2. Carbon Monoxide – The Silent Killer 2.1 What is Carbon Monoxide ? Many people are killed each year, and many more suffer ill health from Carbon toxic gas. It is produced by appliances and vehicles burning fuels, such as coal, oil, natural/bottled gas, paraffin, wood, petrol, diesel, charcoal etc.
  • Page 7 2.3 Symptoms of Carbon Monoxide Poisoning Table A Concentration of CO in Air Inhalation Time (approx) and Symptoms Developed The maximum allowable concentration for continuous exposure in any 8 hour period according to OSHA *. Slight headache after 1.5 hours. Slight headache, fatigue, dizziness, nausea after 2-3 hours.
  • Page 8 2.4 Pre-Alarm When the Alarm detects over 43 ppm CO the red light flashes in accordance with straight away. triggered by CO coming for example, from cooking with gas, from car engines or from nearby barbecues. This is usually not a concern, unless the pre-alarm signal persists until the Alarm sounds and the CO source is unknown.
  • Page 9 * There are two variations of the LCD display as outlined in the tables below Table B-1: CO Alarm Response - (version 1) Sounder Red Light Display Icon Display Icon (Pre Alarm) (before horn sounds) (after horn sounds) (Alarm) CO Gas Level Off* Blank Blank...
  • Page 10 Table B-2: CO Alarm Response - (version 2) Sounder Red Light Display Icon Display Icon (Pre Alarm) (before horn sounds) (after horn sounds) (Alarm) CO Gas Level Off* Blank Blank 0 < ppm < 10 ppm PPM level (flash) PPM level (flash) Off* 10 <...

  • Page 11: Where To Place Co Alarms

    Table C: CO Alarm Memory Indicators CO Gas Level Red Light Response 24 Hours On Demand (Button Press) ppm > 43 ppm 2 flashes every minute (approx) 2 flashes ppm > 80 ppm 4 flashes every minute (approx) 4 flashes ppm >...
  • Page 12 - In a bedsit, the CO Alarm should be placed as far away from the cooking appliance as possible, but near to where the person sleeps - If the appliance is in a room not normally used, such as a boiler room, the CO Alarm should be placed just outside the room so that the Alarm will be heard more easily.
  • Page 13 3.3 If locating the CO Alarm in a room with a fuel burning appliance (see figure 1) any door or window but still be at least 150mm from the ceiling. fitting. potential CO source. of the partition as the potential source. 3.4 If locating the CO Alarm in a bedroom or in rooms remote from a fuel burning appliance (see figure 3) Whatever position is chosen make sure it is possible to view the three light...
  • Page 14 CO Alarm Figure 1 Location in room with a fuel burning appliance...
  • Page 15 CO Alarm CO Alarm Figure 2 Figure 3 Location in rooms with sloped ceilings, Location in bedrooms & other rooms the CO alarm should be located at the remote from the appliance high side of the room 3a. Additional information on where to place CO Alarms in recreational vehicles Caravans and boats Caravans and boats may have additional risks of carbon monoxide ingress through air vents due to the nearby presence of other vehicles, engines, generators or...
  • Page 16 or boat has a single living space which incorporates the sleeping accommodation, it can be considered to be equivalent to a bedsit, and a single Alarm is sufficient. However, any sleeping accommodation which is in a separate room from the 3.4.

  • Page 17: Installation

    4. Installation Warning: The Installation of this CO Alarm should not be used as a subsitute for proper installation, use and maintenance of fuel buring appliances including appropriate ventilation and exhaust systems. 4.1 Installation Procedure 1. Select a location complying with the advice in ‘Where to place CO Alarms’...
  • Page 18 7. Carefully line up the Alarm on the base, gently Light lights will immediately flash in sequence to show Amber Light they are working. In addition, the icons on the LCD Green display on the Display models will briefly light up. Light Test Button...

  • Page 19: Monitoring, Testing & Maintenance

    If necessary it is possible 5. Monitoring, Testing & Maintenance Monitoring The CO Alarm self checks vital functions to ensure that it is operating correctly. Low battery fault – the battery voltage is measured and compared against a low voltage threshold. Sensor Fault –...
  • Page 20 Low Battery: When the battery is starting to be depleted the CO Alarm will beep and the Amber LED will flash every minute. The low battery beeps can be supressed for 24 hours by pressing the button. entire CO Alarm. Battery Replacement (For Ei207 Models Only): Check the ‘Replace by’...
  • Page 21 printed on the batteries is exceeded. The life will be reduced if the CO Alarm regularly goes into alarm or if it is exposed Sensor Fault: If a sensor fault has been detected the Alarm will beep and flash the amber light 2 times every minute.
  • Page 22 2. If there is a fault condition the yellow LED will flash and the horn will beep in accordance to Table D. 3. If the memory has been set the Red light will flash and the horn will give a full Quick Test with Carbon Monoxide: Position The Carbon Monoxide Alarm checks for CO gas...
  • Page 23 To check the Alarm sound, momentarily press the test button and within seconds the horn will sound briefly. Slide the power switch to the OFF position and replace the Alarm on its mounting plate. Maintenance Silencing (Hush) When the Alarm sounds, after sensing CO, pressing the test/hush button will the red light and the horn will turn on again after about 4 minutes.

  • Page 24: What To Do When The Alarm Sounds

    6. What to do when the Alarm sounds can be silenced immediately by pushing the test/hush button provided the CO poisoning is suspected. number in a prominent place. silenced by pressing the test/hush button, wait at least 5 minutes so the Alarm registered installer or equivalent expert.

  • Page 25: How To Protect Your Family

    7. How to Protect your Family Follow these guidelines to reduce the risk of Carbon Monoxide poisoning. These include:- - The CO Alarm warning of abnormal levels. - Staining, sooting or discolouration on or around appliances. - A pilot light frequently going out. - A strange smell when an appliance is operating.
  • Page 26 open if the car is running. to touch, or interfere with the CO Alarm. Do not allow small children to press the test/hush button as they could be subjected to excessive noise when the CO Alarm sounds. reduce the risk of high levels of CO occurring. The high levels of draught-proofing in modern houses reduces ventilation and can allow dangerous gases to build up.

  • Page 27: Technical Specification

    8. Technical Specification Power : CO Sensitivity : Electromagnetic Compatibility : Test/Hush Button : Checks electronics and horn. When the Alarm sounds, after sensing CO, pressing the test/hush button will the red light and the horn will turn on again after about 4 minutes. The CO Alarm can only be silenced once during a CO incident.

  • Page 28: Getting The Co Alarm Serviced

    These guarantees exclude incidental and consequential damage. If the Carbon Monoxide Alarm should become defective within the guarantee period, it must be returned to where it was purchased or alternatively to Ei Electronics, Getting the CO Alarm Serviced...

  • Page 29: Limitations Of Co Alarms

    11. Limitations of CO Alarms return from holidays and other long absences. prevent the CO reaching the Alarm. For these reasons we recommend CO Alarms are fitted both near and in bedrooms, particularly if bedroom doors are closed at night. Additionally install in rooms where members of the household spend much of their time, and in rooms with potential sources of CO gas.
  • Page 30 for their own insurance. The CO Alarm warns of increasing CO levels, but we do not guarantee that this will protect everyone from CO poisoning. Carbon Monoxide, but the response characteristics of these CO Alarms are such that they would not give sufficient warning of fire. Smoke Alarms must be fitted to give early warning of fire.

  • Page 31: Troubleshooting

    12. Troubleshooting ALARM DOES NOT WORK WITH THE TEST BUTTON: ALARM SOUNDS FOR NO APPARENT REASON: Follow the detailed instructions in ‘What to do when the alarm sounds’ section. If there are still problems: cleaners, aerosol sprays, damp proofing done with and aqueous emulsion such as Aminofunctional siloxane and Alkylalkoxysilane.
  • Page 32 the other RF interconnected Alarms and that all Alarms are housecoded correctly. If the CO Alarm continues to sound it is possibly defective and should be replaced Getting the CO Alarm Serviced WHAT TO DO IF THE ALARM BEEPS: The CO Alarm will beep and the amber light will flash to indicate a fault condition. CO Alarm Fault Chart Fault Condition Fault Indication...

  • Page 33: Display & Indicator Summary

    13. Display & Indicator Summary (version 1) (version 2)
  • Page 34 Ei207 & 208 Indicator Summary Normal Operation Red LED Amber LED Green LED Sounder Power Up 1 flash 1 flash 1 flash Standby Button Test (Weekly) 1 Flash (every sec) Flashing Unit Sensing CO gas itself (as per table B) Alarms Activated via RF interconnect Fault Mode...
  • Page 35 Ei207 & 208 Service Diagnostics Diagnostics Modes Action Red LED Yellow LED Sounder Action Fault Checks Low battery Press & hold 1 flash 1 beep with See Note* button flash 2 beeps with Replace Faulty Sensor Press & hold 2 flashes flashes Alarm button...

  • Page 36: Contact Us

    14. Contact Us Aico Ltd Tel: 0870 758 4000 www.aico.co.uk Ei Electronics. Shannon, Co Clare, Ireland. Tel: 061 471277 www.eielectronics.com The crossed out wheelie bin symbol that is on your product indicates that this product should not be disposed of via the normal household waste stream. Proper disposal will prevent possible harm to the environment or to human health.
  • Page 37 RadioLINK Module Ei200MRF for Battery Powered Carbon Monoxide Alarms Ei208W Series Ei200MRF Module (for use with Ei208W & Ei208DW Alarms only) Instructions Read and retain carefully for as long as the product is being used. It contains vital information on the operation and installation of your Module.
  • Page 38 Table of Contents page Introduction ..................Installation and House Coding ............Additional Features ................. Indicator Summary ................System Examples ................Testing the system ................Interconnected Carbon Monoxide Alarms & Smoke/Heat Alarms ... RadioLINK + Troubleshooting ............Technical Specifications ..............Guarantee ..................Limitations of Radio Communications ..........

  • Page 39: Introduction

    Ei200MRF RadioLINK Module, but now with added features. The primary function of the Ei200MRF is to interconnect all Ei Electronics Alarms in a system by the means of an RF signal i.e. when one Alarm senses Carbon Monoxide (CO), the Ei200MRF module fitted to the CO Alarm will transmit an RF signal that will activate the sounders in all the other Alarms in the system.

  • Page 40: Installation And House Coding

    Installation and House Coding To fit the Ei200MRF module, plug it into the base of the Alarm while being careful to align the pins and insert the flexible antenna into the antenna hole (See Fig 1). N.B. Ensure that the Ei200MRF is fully inserted. House Coding the Unit Power supply to the Ei200MRF will be Antenna...
  • Page 41 N.B. We recommend, for ease of installation and RF communication, that up to 12 RF devices can be installed in any one RF coded system. Please contact us for further advise if additional RF devices are required. You can exit this mode by pressing the House Code button on one of the RF Alarms. Keep the button pressed until the blue light comes on solid and then release.

  • Page 42: Additional Features

    Additional Features The Ei200MRF RadioLINK + Module provides additional features not available with Ei Electronics RadioLINK products. The following features will only work with RadioLINK + devices. 1. Remote House Coding (required if you want to add an Alarm to an installed system) 2.
  • Page 43 3. Data Extraction The Ei200MRF RadioLINK+ Module allows for the extraction of information from an Ei Electronics Compatible Alarm, using an Ei Electronics download device. Once the system has been set up, information can be accessed securely from within or outside a property if access is an issue The event log can contain very useful information about any recorded events in the history of the Alarm such as: CO Events, Alarm Head removals, Button Tests, and so on.

  • Page 44: Indicator Summary

    Event logs can be retrieved as many times as necessary. For more information on using this feature, please visit www.eielectronics.com and refer to the relevant section on the RadioLINK+ Data Extraction feature. Ei200MRF Indicator Summary Normal Operation Blue LED Red LED Green LED Sounder Power Up...

  • Page 45: System Examples

    System Examples (RadioLINK & RadioLINK + ) RF System RadioLINK RadioLINK CO Alarm CO Alarm RadioLINK RadioLINK CO Alarm CO Alarm RF Tool RadioLINK + CO Alarm Data Extraction RadioLINK + CO Alarm Note: Data Extraction only available on RadioLINK + Alarms...
  • Page 46 RadioLINK + System RadioLINK + RadioLINK + RadioLINK + RadioLINK + RadioLINK + CO Alarm CO Alarm CO Alarm CO Alarm CO Alarm RF Tool Data Extraction...

  • Page 47: Testing The System

    Testing the System Frequent testing of the system is a requirement to ensure its reliable operation. Guidelines and best practices for testing are as follows: 1. After the system is installed. 2. Regularly (monthly testing is recommended). 3. After prolonged absence from the dwelling (e.g. after holiday period).
  • Page 48 The local Alarm will stop sounding but you will hear the other Alarms still sounding in the distance. Module Battery Check It is important to ensure that the batteries on both the Alarm and the module itself are in full working order. Depending on the Alarm that the Ei200MRF is inserted to, there will be slightly different indicators for low battery on the Alarm itself (see table below).

  • Page 49: Interconnected Carbon Monoxide Alarms & Smoke/Heat Alarms

    Interconnected Carbon Monoxide Alarms & Smoke/Heat Alarms Identifying source of Alarm Ei Electronics Carbon Monoxide Alarms and Smoke/Heat Alarms can be interconnected via RadioLINK or RadioLINK+ so that one device sensing danger will cause all the other Alarms to sound.

  • Page 50: Radiolink + Troubleshooting

    RadioLINK + Troubleshooting It is important that all Alarms in your system communicate with each other. The number of walls, ceilings and metal objects in the signal path will reduce the strength of the RadioLINK + signals between the Alarms. Accordingly, one or more CO/ Smoke/Heat Alarms may have difficulties in communicating to all the other Alarms in the system.
  • Page 51 (Note: The RadioLINK + module can be returned to the original factory settings by pressing and holding the House Code switch until the blue light flashes and then releasing. This will take about 7 seconds. This clears the House Codes that have been learnt).

  • Page 52: Technical Specifications

    Technical Specifications Supply Voltage: 3V internal lithium battery (non-replaceable) RF Range: A minimum of 100 metres in free space RF Visual Indicator: Blue light flashes continuously for 0.5 to 3.5 seconds while transmitting RF signal RF Frequency: 868.499MHz (1% duty cycle) Max RF Power: +10dBm Dimensions:...

  • Page 53: Guarantee

    This guarantee excludes incidental and consequential damage. If this RF RadioLINK + Module should become defective within the guarantee period, it must be returned to Ei Electronics, with proof of purchase, carefully packaged, with the problem clearly stated. We shall at our discretion repair or replace the faulty unit.

  • Page 54: Limitations Of Radio Communications

    Limitations of Radio Communications Ei Electronics radio communication systems are very reliable and are tested to high standards. However, due to their low transmitting power and limited range (required by regulatory bodies) there are some limitations to be considered: (i) Receivers may be blocked by radio signals occurring on or near their operating frequencies, regardless of the House Coding.
  • Page 55 Hereby, Ei Electronics declares that this Ei200MRF RadioLINK + Module is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The Declaration of Conformity may be consulted at www.eielectronics.com/compliance The crossed out wheelie bin symbol that is on your product indicates that this product should not be disposed of via the normal household waste stream.
  • Page 56 Aico Ltd. Mile End Business Park, Maesbury Rd, Oswestry, Shropshire SY10 8NN, U.K. Tel: 01691 664100 www.aico.co.uk Ei Electronics. Shannon, Co Clare, Ireland. Tel: 061 471277 www.eielectronics.com © Ei Electronics 2016 P/N B18149 Rev2...
