230V~ SMOKE & HEAT ALARMS
RECHARGEABLE LITHIUM CELL BACKUP
IONISATION
with Hush
MODEL Ei151TL
If you are the installer see separate
"Sitting & installation Instructions'
USER INSTRUCTIONS
KEEP FOR REFERENCE
IMPORTANT USER INFORMATION
REGULARLY CHECK THAT THE GREEN MAINS
INDICATOR LIGHT IS ON.
IF A NUISANCE ALARM OCCURS, FAN THE ALARM
VIGOROUSLY WITH A NEWSPAPER TO HELP CLEAR
THE SENSOR. (ON THE PFS-ITL PRESS THE HUSH
BUTTON IN THE CORNER OF THE COVER).
TEST WEEKLY - PRESS THE BUTTON FOR 10
SECONDS AND A RED LIGHT BEHIND THE BUTTON
OR
ON
INTERCONNECTED ALARMS WILL ALSO SOUND.
CLEAN YOUR SMOKE ALARM REGULARLY. THIS
WILL REDUCE THE RISK OF FALSE ALARMS.
REMOVE OR COMPLETELY COVER YOUR SMOKE
ALARM WHEN REDECORATING TO PREVENT DUST
OR OTHER CONTAMINATION DAMAGING THE UNIT.
© Ei Electronics 2013

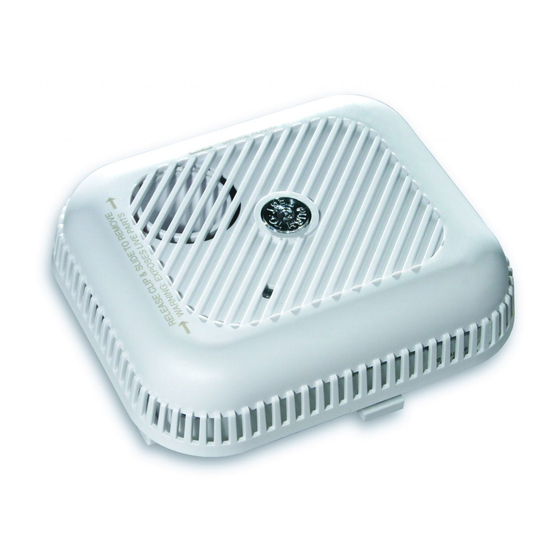

OPTICAL
with Hush
MODEL Ei156TL
READ THIS FIRST
THE
COVER
HEAT
MODEL Ei154TL
SHOULD
FLASH.
P/N B12930 Rev7
CONT.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ei Electronics Ei156TL
Summary of Contents for Ei Electronics Ei156TL
- Page 1 INTERCONNECTED ALARMS WILL ALSO SOUND. CLEAN YOUR SMOKE ALARM REGULARLY. THIS WILL REDUCE THE RISK OF FALSE ALARMS. REMOVE OR COMPLETELY COVER YOUR SMOKE ALARM WHEN REDECORATING TO PREVENT DUST OR OTHER CONTAMINATION DAMAGING THE UNIT. CONT. © Ei Electronics 2013 P/N B12930 Rev7...
- Page 2 READ THIS FIRST CONT. DO NOT ALLOW PAINT, WATER OR DUST TO CONTAMINATE YOUR ALARM. YOUR ALARM IS A MAINS 230V AC ELECTRICAL APPLIANCE. DO NOT REMOVE THE COVER OR INSERT ANYTHING INTO THE ALARM. DO NOT PAINT YOUR SMOKE ALARM - IT MAY ALARM OR CEASE TO OPERATE.
- Page 3 button is released. Pressing the test button simulates the effect of smoke or heat during a real fire and is the best way to ensure the Alarm is operating correctly. WARNING: DO NOT TEST WITH FLAME. This can set fire to the Alarm and Figure 2 damage the house.
- Page 4 40 seconds for up to 15 minutes. Press the test button to cancel hush mode beeps. (iii) The cells may be depleted. The beeps should cease within 2 hours as they charge up. Fully charged, the cells will provide up to 6 months back-up without mains power. (iv) On the Optical Smoke Alarms only (Ei156TLH) if the unit beeps and the red light does not flash at the same time it indicates a problem with the smoke chamber - see Cleaning...
-
Page 5: Nuisance Alarms
If you experience persistent false alarms, in particular locations, due to contamination of the smoke chamber you could consider replacing Optical Smoke Alarms (Ei156TL) with Ionisation Smoke Alarms (Ei151TL). Ionisation type alarms are less susceptible to dust than Optical type alarms. - Page 6 If, when the alarm goes off, there is no sign of smoke, heat or noise to indicate that there is a fire, you should get your family into a safe place, before you start investigating. Check the house carefully in case there is a small fire smouldering somewhere.
-
Page 7: Important Safeguards
4. After installation, your Smoke Alarm (Ei151TL only) may beep approximately every 40 seconds for 15 minutes. This indicates it is in the Hush mode. To put it into normal operating mode, push and hold the Test Button until the alarm sounds. IMPORTANT SAFEGUARDS When using household protective devices, basic safety precautions should always be followed, including those listed... - Page 8 2. If smoke is heavy, crawl out, staying close to floor. Take short breaths, if possible, through a wet cloth or hold your breath. More people die from smoke inhalation than from flames. 3. Get out as fast as you can. Do not stop for packing.
-
Page 9: Getting Your Alarm Serviced
Smoke Alarm was purchased and the date of purchase. FIVE YEAR PRODUCT GUARANTEE Ei Electronics guarantees this Smoke Alarm for five years from date of purchase against any defects that are due to faulty materials or workmanship. This guarantee only applies to normal conditions of... -
Page 10: Troubleshooting
TROUBLESHOOTING ALARM SOUNDS FOR NO APPARENT REASON: (1) Identify the alarm source. On interconnected units the red light under the test button or on the cover will flash rapidly only on the unit which is the source of the alarm. (2) Check for fumes, steam etc. - Page 12 0086 Ei Electronics, Shannon, Co. Clare, Ireland DoP No.13-0001 EN14604:2005 + AC:2008 Smoke Alarm Devices: Ei151TL, Ei151TLR, Ei156TLH, Ei156TLR...
- Page 13 ALARM WITH DUST COVER UNTIL REQUIRED FOR USE. DON’T MEGGER THE ALARM. DISCONNECT THE ALARM BEFORE APPLYING HIGH VOLTAGE TO HOUSE WIRING. CHECK OPERATION OF ALARM GREEN MAINS LIGHT IS ON. TEST BUTTON OPERATES ON ALL ALARMS. CONT. © Ei Electronics 2013 P/N B12931 Rev4...
-
Page 14: Read This First
READ THIS FIRST CONT. ALL INTERCONNECTED ALARMS OPERATE WHEN EACH TEST BUTTON IS PRESSED FOR 10 SECONDS. REMOVE UNIT FROM MOUNTING PLATE RELEASING CATCH AS SHOWN IN FIGURE 1, SWITCH OFF MAINS FIRST. DO NOT ATTEMPT TO OPEN THE ALARM AS IT IS PERMANENTLY SEALED FOR SAFETY. - Page 15 LOCATING ALARMS SMOKE ALARMS Sufficient smoke must enter the Smoke Alarm before it will respond. The Smoke Alarm needs to be within 7.5 metres (25 ft) of the fire to respond quickly. It also needs to be in a position where its alarm can be heard throughout your home, so it can wake the occupants in time for all to escape.
- Page 16 and other areas where there are normally high levels of fumes, smoke or dust i.e. places where Smoke Alarms cannot be installed without the risk of excessive nuisance alarms. A Heat Alarm should only be used in a room adjoining an escape route, in conjunction with Smoke Alarms on the escape routes.
- Page 17 Single Storey Dwelling If the Home is on one level (a bungalow or mobile home for example) you should put the first Smoke Alarm in a corridor or hallway between the sleeping and living areas. Place it as near to the living area as possible, but make sure you can hear it loudly enough to wake a person in the bedrooms.
- Page 18 If a Smoke Alarm is too far away for it to wake a person, it is best to link it to another Smoke Alarm or Heat Alarm near the bedroom. These alarms can be interconnected - when one alarm senses smoke, all interconnected alarms respond (see below for further details).
- Page 19 POSITIONING SMOKE & HEAT ALARMS The location must comply with applicable building regulations. Ceiling Mounting Hot smoke rises and spreads out, so a central ceiling position is the preferred location. The air is “dead” and does not move in corners, therefore Smoke & Heat Alarms must be mounted away from corners.
- Page 20 installed, cover it completely, particularly around the edges, with a dust cover (eg. with the elasticated cover supplied or a plastic bag), until all cleaning is finished. The Alarm must not be connected when the house wiring insulation is being checked with high voltages i.e. DON’T USE A MEGGER ON THE ALARM.
- Page 21 box ensure the orientation of the box will leave the Smoke Alarm squarely aligned to the rectangular walls. We recommend the use of 6243Y mains cable - use the third core for the interconnect line. Do not use an earth wire for the interconnect line. 4.
-
Page 22: Interconnecting Smoke & Heat Alarms
CAUTION: Do not attempt to remove the Alarm without first releasing the tamper clip as shown in Figure 1. 8. Connect the mains power to the Alarm circuit. Check the operation of the Alarm as outlined below . INTERCONNECTING SMOKE &... - Page 23 CHECKING THE OPERATION OF THE ALARMS INSPECTION & TESTING PROCEDURE After installation check all the Alarms (i) Check that the green mains indicator light is on. (If it is off check circuit breakers, fuses and wiring etc.) Check the red light behind the button or on the cover flashes every 40 seconds.
- Page 24 2 hours with the green light on - the rechargeable cells may be defective. The Alarm must be returned to Ei Electronics for repair or replacement (see section Getting Your Smoke Alarm Serviced - in the “User Instructions”...
- Page 25 FIVE YEAR PRODUCT GUARANTEE Ei Electronics guarantees this Smoke Alarm for five years from date of purchase against any defects that are due to faulty materials or workmanship. This guarantee only applies to normal conditions of...
- Page 26 AICO Ltd., Mile End Business Park, Maesbury Rd, Oswestry, Shropshire SY10 8NN Telephone: 0870 758 4000 www.aico.co.uk Ei Electronics, Shannon, Co. Clare, Ireland. www.eielectronics.com...
