Model: Ei171RF
Deaf & Hearing Impaired
RadioLINK Alarm System
Strobe Light Module
For use with RadioLINK Smoke/Heat/Fire Alarms
(Smoke / Heat / Fire Alarm
supplied separately)
Note: At least one RadioLINK Smoke/Fire/Heat Alarm is required to make the Ei171RF
Alarm operational. This is not supplied with the Ei171RF and must be obtained separately.
Important: Read these instructions, together with those from the separate RadioLINK
Smoke/Heat/Fire alarms and accessories before installation. All instruction leaflets must be
left with the end user after installation.

Advertisement

loading
Need help?

Need help?

Do you have a question about the RadioLINK Ei171RF and is the answer not in the manual?

Questions and answers

Related Manuals for Ei Electronics RadioLINK Ei171RF

Summary of Contents for Ei Electronics RadioLINK Ei171RF

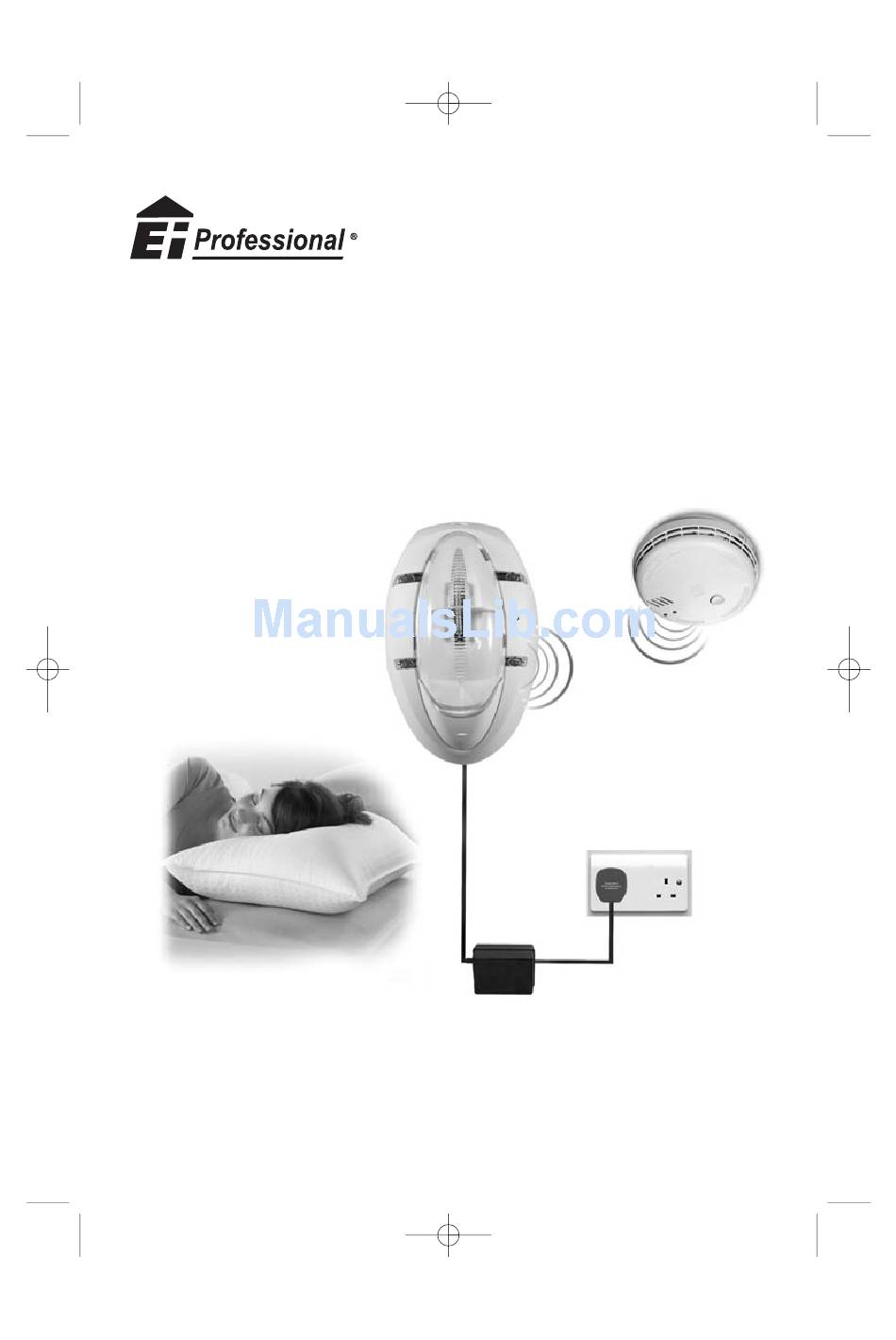

  • Page 1 B16566-R0-Ei171RF-ENG-UC 2/9/09 2:54 PM Page 1 Model: Ei171RF Deaf & Hearing Impaired RadioLINK Alarm System Strobe Light Module For use with RadioLINK Smoke/Heat/Fire Alarms (Smoke / Heat / Fire Alarm supplied separately) Note: At least one RadioLINK Smoke/Fire/Heat Alarm is required to make the Ei171RF Alarm operational.

  • Page 2: Installation

    B16566-R0-Ei171RF-ENG-UC 2/9/09 2:54 PM Page 2 The Ei171RF is for use with the following Ei RadioLINK Smoke/Fire/Heat Alarms and Accessories. Mains Multisensor/Smoke/Heat/Fire Alarms: Ei2110, Ei160RC & Ei140 Series Alarms in conjunction with an Ei168RC RadioLINK Base. Battery Powered Smoke / Heat Alarms: Ei3100RF, Ei3103RF, Ei3105RF, Ei405, Ei405TY, Ei605C (with RF module), Ei605TYC (with RF module).
  • Page 3 B16566-R0-Ei171RF-ENG-UC 2/9/09 2:54 PM Page 3 Battery Battery Plug Latch Figure 2 Plug the battery into the socket at the rear of the battery compartment as shown in Figure 2 (while holding the small latch on the battery plug, open). Place the battery in the compartment ensuring the notch in the battery is used to leave clearance for the plug and sockets (see Figure 3).
  • Page 4 B16566-R0-Ei171RF-ENG-UC 2/9/09 2:54 PM Page 4 If connecting to a mains Junction Box It is preferable to permanently wire the unit into a mains junction box. In this case remove the plug and wire as follows. Warning: If the plug is being removed and the unit is being wired to a junction box it should be installed by a qualified electrician in accordance with the Regulations for Electrical Installations published by the Institute of Engineering &...
  • Page 5 B16566-R0-Ei171RF-ENG-UC 2/9/09 2:54 PM Page 5 Strobe Module until the blue light turns on, then release. The blue light should stop flashing and an ‘exit House Code Mode’ radio signal will be sent to all other units. Check that the amber/blue lights on all other units have stopped flashing.
  • Page 6 B16566-R0-Ei171RF-ENG-UC 2/9/09 2:54 PM Page 6 4. TESTING AND MAINTAINING YOUR SYSTEM 4.1 AFTER INSTALLATION 4.1.1 Check that all RadioLINK Alarms and Accessories are powered correctly. 4.1.2 Check that the green light on the Ei171RF Strobe Module is continuously lit. 4.1.3 Press the test button on all RadioLINKED Smoke/Heat/Fire Alarms, Remote Controls and Manual Call Points in turn, and check that all other Smoke/Heat/Fire Alarms in the system alarm after about 4 seconds and that the Strobe Light Module activates.

  • Page 7: Troubleshooting

    B16566-R0-Ei171RF-ENG-UC 2/9/09 2:54 PM Page 7 The battery also needs to be replaced if it is over 5 years old (see “replace battery by” date on side panel). To remove the battery reverse the instructions in the first part of section 2. Contact nearest address at the end of this leaflet on obtaining a replacement battery.

  • Page 8: Five Year Guarantee

    RadioLINK system, including the Ei171RF. 5. FIVE YEAR GUARANTEE Ei Electronics guarantees this device for five years from the date of purchase against any defects that are due to faulty materials or workmanship. This guarantee only applies to normal conditions of use and service, and does not include damage resulting from accident, neglect, misuse, unauthorised dismantling, or contamination howsoever caused.
  • Page 9 B16566-R0-Ei171RF-ENG-UC 2/9/09 2:54 PM Page 9 Conversion Jack Remove protection plug before connecting accessories 180mA(max) 20mA(max) Aux1 Aux2 Template for Mounting Screws Drill Holes Here Figure 5...
  • Page 10 B16566-R0-Ei171RF-ENG-UC 2/9/09 2:54 PM Page 10...

  • Page 11: Indicator Summary

    B16566-R0-Ei171RF-ENG-UC 2/9/09 2:54 PM Page 11 INDICATOR SUMMARY Control Panel Indicators RadioLINK Mains Signalling Indicator Blue Green (mains disconnected = amber flash/ 4 seconds) Strobe Fault Alarm Indicator ALARM FAULT Amber TEST...
  • Page 12 Aico Ltd. Mile End Business Park, Maesbury Rd, Oswestry, Shropshire SY10 8NN, U.K. Tel: 0870 758 4000 www.aico.co.uk Ei Electronics. Shannon, Co Clare, Ireland. Tel:+353 (0)61 471277 www.eielectronics.com P/N B16566 Rev0 © Ei Electronics 2009...
