Ei Electronics Ei600 Series Instructions Manual

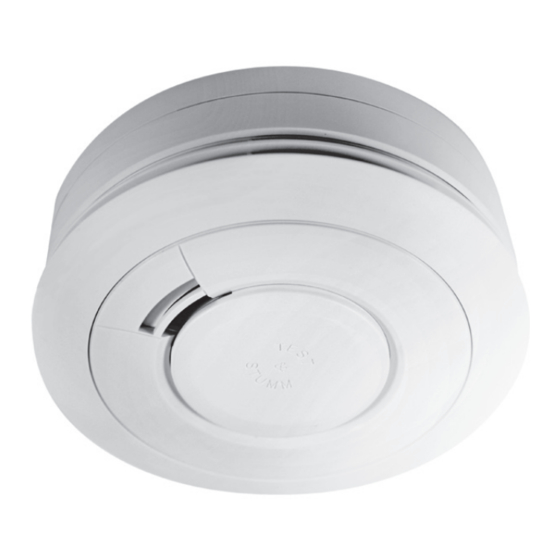

Battery powered smoke & heat alarms
Hide thumbs Also See for Ei600 Series:
Table of Contents

Advertisement

Quick Links

Battery Powered
Smoke & Heat Alarms
Ei600 Series
Ei605 Smoke Alarm Series
Read and retain carefully for as long as the product is being used. It contains vital information on the operation and installation
of your Alarm. The leaflet should be regarded as part of the product.
If you are just installing the unit, the leaflet must be given to the householder. The leaflet is to be given to any subsequent
user.
Ei603 Heat Alarm Series
Instructions

Advertisement

Table of Contents
loading

Related Manuals for Ei Electronics Ei600 Series

Summary of Contents for Ei Electronics Ei600 Series

  • Page 1 Battery Powered Smoke & Heat Alarms Ei600 Series Ei605 Smoke Alarm Series Ei603 Heat Alarm Series Instructions Read and retain carefully for as long as the product is being used. It contains vital information on the operation and installation of your Alarm. The leaflet should be regarded as part of the product.
  • Page 2 Table 1 9V Replaceable Battery Optional Hardwired Model Alarm Capability RF Module Type Interconnect Supplied Model No. Ei605 Optical None Ei605C Optical Ei605MRF Optical Ei605W Ei605MRF Ei603C Heat Ei605MRF Heat Ei603W Ei605MRF 10 Year Lithium Battery Built-in Optional Hardwired Model Alarm Capability RF Module...

  • Page 3: Table Of Contents

    CONTENTS Page QUICK START GUIDE LOCATION & POSITIONING INSTALLATION INTERCONNECTION - HARD WIRED TESTING, MAINTENANCE & POWER SUPPLY MONITORING FIRE SAFETY ADVICE SMOKE ALARM LIMITATIONS RADIOLINK ACCESSORIES GETTING YOUR ALARM SERVICED FIVE YEAR GUARANTEE TROUBLESHOOTING CONTACT US...

  • Page 4: Quick Start Guide

    1. Quick Start Guide LOCATE CORRECT SITING POINT FIX BASEPLATE TO CEILING ALARM SHOULD BE CEILING MOUNTED AT LEAST 300MM FROM WALLS & OBSTRUCTIONS, IDEALLY CENTRALLY IN ROOM/AREA CONNECT BATTERY SNAPS 9V BATTERY MODELS ONLY 9 VOLT BATTERY BATTERY CONNECTORS BASE OF ALARM CONNECT THE BATTERY TO THE...
  • Page 5 Quick Start Guide PLACE ALARM & TWIST ON TO BASE ON 10 YEAR LITHIUM BATTERY ALARM MODELS - TWISTING THE UNIT ON TO THE BASE AUTOMATICALLY CONNECTS THE BATTERY TEST ALARM PRESS THE TEST BUTTON TEST ALARM AT LEAST WEEKLY...

  • Page 6: Location & Positioning

    2. Location & Positioning Introduction Congratulations on purchasing an Ei600 Series Alarm. You can easily install these alarms throughout the property on escape routes, on each storey, in corridors & in closed rooms to give warning of fire. The Heat Alarms can be installed in kitchens and other areas where Smoke Alarms are unsuitable.
  • Page 7 Your first Smoke Alarm should be located between the sleeping area and the most likely sources of fire (living room, kitchen for example), but it should not be more than 7.5 metres from the door to any room where a fire may start and block your escape from the house.
  • Page 8 Multi-Storey Dwellings If your home has more than one floor, at least one Alarm should be fitted on each level (see Figure 1). Preferably the units should be interconnected (if feature is present on unit) so as to give sufficient warning throughout the property. RadioLINK plug-in modules are ideal in this situation as the units will then interconnect using Radio Frequency (RF) signals - so no wiring is required.
  • Page 9 Figure 1 For minimum protection - Smoke Alarm on each storey - in each sleeping area Kitchen Bedroom - every 7.5 metres of hallways and Bathroom Living Room rooms - within 3 metres of all bedroom doors - all units interconnected (where Dining Room Bedroom feature is present)
  • Page 10 start at night, followed by the kitchen (where a Heat Alarm is recommended) and then the dining room. Consideration should be given to installing Smoke Alarms in any bedrooms where fires might occur, for instance, where there is an electrical appliance such as an electric blanket or heater, or where the occupant is a smoker.
  • Page 11 On a Sloping Ceiling With a sloping or peaked ceiling install a Smoke Alarm within 600mm of the peak or a Heat Alarm within 150mm of the peak (measured vertically). If this height is less than 600mm for Smoke Alarms or 150mm for Heat Alarms the ceiling is regarded (see Figure 4).
  • Page 12 detector chamber can cause intermittent alarms. DON’T place Heat Alarms in any of the following areas: steam or condensation. DON’T place Smoke or Heat Alarms in any of the following areas: attics, furnace rooms, directly above ovens or kettles etc.) as the heat/steam could cause nuisance alarms.

  • Page 13: Installation

    3. Installation Installation Procedure 1. Select a location complying with the advice in Section 2. 2. Remove the mounting plate from the Smoke/Heat Alarm by twisting it in an anti-clockwise direction (see Figure 5). 3. Place the mounting plate on the ceiling exactly where you want to mount the Alarm.
  • Page 14 orientation with respect to this (see figure 6). 6. Connect the battery to the battery snaps as shown in the Quick Start Guide (for Front Wall Front Wall Mounting Plate Mounting Plate Orientate all mounting plates in the same direction Large hole nearest...
  • Page 15 7a for Smoke Alarm & 7b for Heat Alarm). 9. For hard-wired interconnected Alarms, hold down the Test button on each Alarm in turn and check that all other interconnected Alarms sound. using RadioLINK Smoke Alarm Heat Alarm & Heat Alarms. Figure 7a Figure 7b Install all the other Alarms similarly.
  • Page 16 PUSH UP CATCH & TWIST ALARM ANTI-CLOCKWISE TO REMOVE BREAK OFF SMALL PILLAR How to Tamperproof How to Remove Figure 8a Figure 8b Line up the screw (not supplied) on the SELF TAPPING “U” shaped recessed SCREW area shown in figure 8c and screw firmly home.

  • Page 17: Interconnection - Hard Wired

    4. Interconnection - Hard Wired A combined maximum of 12 Smoke Alarms and/or Heat Alarms may be wired together such that when one unit senses fire all other units sound a warning - (see Table 1 for the alarms with hardwired interconnect option). This helps ensure the alarm will be heard throughout the property.
  • Page 18 making it insensitive. It is essential that all such ceiling openings be closed with silicone sealant or similar. 1. Run the two core cable to the Alarm locations. the ceiling) see figure 9b. 3. If you are bringing the wiring along the surface, break out the two notches (see figure 10a).

  • Page 19: Testing, Maintenance & Power Supply

    Install and connect all the other Alarms similarly. Now test the first Alarm by pressing and holding the Test button (this may take up to 5 seconds). The red indicator light will flash about once a second on the first Alarm and all other Alarms should sound.
  • Page 20 - If they are interconnected using RadioLINK modules, hold down the Test button until the blue light on the cover of the Alarm illuminates. Check that all other Alarms sound. - Release the Test button. The Alarm and all connected Alarms should stop sounding.
  • Page 21 If you installed Alarms with RadioLINK modules and did not House Code them, you may be receiving alarm signals from a neighbouring system. This can be easy Powered Smoke & Heat Alarms. 1. To cancel a false alarm from a Smoke Alarm (which has its red light flashing rapidly), press the Test/Hush button (the Smoke Alarm will automatically switch to a reduced sensitivity condition).
  • Page 22 2. A Heat Alarm is beeping about every 40 seconds. - If it is a 9V Replaceable Battery model then replace the battery. - If it is a 10 Year Lithium Battery model then replace the entire unit. light flashes every 10 seconds it indicates that the RF battery is depleted and the RadioLINK module must be replaced.
  • Page 23 The latest design, materials and manufacturing techniques have been used in the construction of Ei Electronics Alarms to minimise the effects of contamination. However it is impossible to completely eliminate the effect of dust and insect contamination, and therefore, to prolong the life of the Alarm you must ensure that it is kept clean so that excess dust does not build up.
  • Page 24 In certain circumstances even with regular cleaning, contamination can build up in the smoke sensing chamber causing the alarm to sound. If this happens the Smoke Alarm must be returned for servicing or replacement. Contamination is beyond our control, it is totally unpredictable and is considered normal wear and tear. For this reason, contamination is not covered by the guarantee and a charge is made for all such servicing work.

  • Page 25: Fire Safety Advice

    6. Fire Safety Advice When using household protective devices, basic safety precautions should always be followed, including those listed below case the alarm sounds. show each member at least 2 escape routes from each room in the house. Children windows, and use roll up fire ladders and stools without adult help. Make sure they know what to do if the alarm goes off.
  • Page 26 attempt a repair. Return the Alarm (see Section 9). environment. instruction leaflet. manufacturer is not your insurer. Fire Safety Hints Store petrol and other flammable materials in proper containers. Always use a metal fireplace screen and have chimneys cleaned regularly. Replace worn or damaged sockets, switches, home wiring and cracked or frayed electrical cords and plugs.
  • Page 27 This device cannot protect all persons at all times. It may not protect against the three most common causes of fatal fires: 1. Smoking in bed. 2. Leaving children at home alone. 3. Cleaning with flammable liquids, such as petrol. Planning Your Escape Route For When The Alarms Sound a hot door.
  • Page 28 mobile phone. Remember to give your name and address. 5. NEVER re-enter a burning house. NEVER 7. Alarm Limitations Limitations of Smoke/Heat Alarms Smoke/Heat Alarms have significantly helped to reduce the number of fire fatalities in countries where they are widely installed. However independent authorities have stated that they may be ineffective in some circumstances.
  • Page 29 Smoke/Heat Alarms on both sides of closed doors and installing more than one Alarm as recommended in this leaflet very significantly improve the probability of early detection. by furniture, renovations etc. are particularly ineffective with: fires caused by smoking in bed, escaping gas, violent explosions, poor storage of flammable rags and/or liquids, (for example petrol, paint, spirits etc), overloaded electrical circuits, arson, children playing with matches.

  • Page 30: Radiolink Accessories

    8. RadioLINK Accessories Ei605MRF RadioLINK Interconnect module for the 9V Replaceable Battery models. It plugs into the rear of the Alarm. This ensures that when one Alarm senses fire, all units sound to give an alarm through-out the house - (see Table 1). Ei605MTYRF RadioLINK Interconnect module for the 10 Year Lithium Battery models.

  • Page 31: Five Year Guarantee

    10. Five Year Guarantee Ei Electronics guarantees this Alarm (excluding the battery in the 9V Replaceable Battery models) for five years from date of purchase against any defects that are due to faulty materials or workmanship. This guarantee only applies to normal...

  • Page 32: Troubleshooting

    11. Troubleshooting Alarms sound for no apparent reason may cause them to alarm. can cause nuisance alarms. described in Section 5 if necessary. be identified as the Alarm with the red light flashing rapidly) – this will silence the Smoke Alarm for 10 minutes (and also silence all other interconnected Alarms in the system).
  • Page 33 9V Replaceable Battery models. 10 Year Lithium Battery models ensure the unit is twisted fully home on the mounting plate, as this connects the battery.
  • Page 34 The crossed out wheelie bin symbol that is on your product indicates that this product should not be disposed of via the normal household waste stream. Proper disposal will prevent possible harm to the environment or to human health. When disposing of this product please separate it from other waste streams to ensure that it can be recycled in an environmentally sound manner.
  • Page 35 T C E T W E T CR T WR Pass Pass Pass Pass Pass Pass Pass Pass T C E...

  • Page 36: Contact Us

    12. Contact Us Aico Ltd Shropshire SY10 8NN, U.K. Telephone: 01691 664100 www.aico.co.uk Ei Electronics. Shannon, Co Clare, Ireland. Tel: 061 471277 www.eielectronics.com © Ei Electronics 2014...
  • Page 37 Battery Powered Smoke / Heat Alarms Ei600 Series Ei600MRF Module (for use with Ei600 Series compatible Alarms only) Instructions Read and retain carefully for as long as the product is being used. It contains vital information on the operation and installation of your Module.
  • Page 38 Table of Contents page Introduction ..................Compatibility Table ................Installation and House Coding ............Additional Features ................. Indicator Summary ................System Examples ................Testing the system ................Interconnected Smoke/Heat Alarms & Carbon Monoxide Alarms ... RadioLINK + Troubleshooting ............Technical Specifications ..............Guarantee ..................

  • Page 39: Introduction

    Ei600MRF module attached to that alarm will transmit an RF signal that will activate the sounders in all the other Alarms in the system. The Ei600MRF module is plugged into the rear of the base of an Ei Electronics compatible Alarm (see Compatibility Table on page 4). RF communication through this module eliminates the need to install long interconnect wires between all the Alarms on different floors in different rooms.

  • Page 40: Compatibility Table

    Compatibility Table Standard Smoke Alarms Model Hardwired Compatible Capability Interconnect with Ei600MRF Ei605TYC Ei650 Ei650C Ei650W Intelligent Smoke Alarms Model Hardwired Compatible Interconnect Capability with Ei600MRF Ei650i Ei650iC Ei650iW Heat Alarms Model Hardwired Compatible Capability Interconnect with Ei600MRF Ei603TYC 1. Certain Alarms may be supplied (on request) with the appropriate RF module fitted 2.

  • Page 41: Installation And House Coding

    Installation and House Coding To fit the Ei600MRF module, plug it into the base of the compatible Alarm while being careful to align the pins and insert the flexible antenna into the antenna hole (See Fig 1). N.B. Ensure that the Ei600MRF is fully inserted. House Coding the Unit Power supply to the Ei600MRF will be confirmed by an initial flash of the red, blue and green LED...
  • Page 42 House Code Button Red / Blue / Green LED Figure 2 N.B. We recommend, for ease of installation and RF communication, that up to 12 RF devices can be installed in any one RF coded system. Please contact us for further advise if additional RF devices are required. You can exit this mode by pressing the House Code button on one of the RF Alarms.

  • Page 43: Additional Features

    Additional Features The Ei600MRF RadioLINK + Module provides additional features not available with Ei Electronics RadioLINK products. The following features will only work with RadioLINK + devices. 1. Remote House Coding (required if you want to add an Alarm to an installed system) 2.
  • Page 44 3. Data Extraction The Ei600MRF RadioLINK+ Module allows for the extraction of information from an Ei Electronics Compatible Alarm, using an Ei Electronics download device. Once the system has been set up, information can be accessed securely from within or outside a property if access is an issue The event log can contain very useful information about any recorded events in the history of the Alarm such as: Fire Events, Alarm Head removals, Button Tests, and so on.

  • Page 45: Indicator Summary

    Ei600MRF Indicator Summary Normal Operation Blue LED Red LED Green LED Sounder Power Up 1 flash 1 flash 1 flash Standby Alarm 3.5 Sec flash followed by flash every 10 Sec Full Sound Head Removal 3.5 Sec flash every 6 mins for 4 hrs Low Battery (Ei603TYC) Flash every 60 Sec Low Battery...

  • Page 46: System Examples

    System Examples (RadioLINK & RadioLINK + ) RF System RadioLINK RadioLINK Smoke Alarm Smoke Alarm RadioLINK RadioLINK Heat Alarm Smoke Alarm RF Tool RadioLINK + Smoke Alarm Data Extraction RadioLINK + Heat Alarm Note: Remote House Coding / Monitoring / Data Extraction only available on RadioLINK + Alarms...
  • Page 47 RadioLINK + System RadioLINK + RadioLINK + RadioLINK + RadioLINK + RadioLINK + Smoke Alarm Heat Alarm Smoke Alarm Heat Alarm Smoke Alarm RF Tool Data Extraction...

  • Page 48: Testing The System

    Testing the System Frequent testing of the system is a requirement to ensure its reliable operation. Guidelines and best practices for testing are as follows: 1. After the system is installed. 2. Regularly (monthly testing is recommended). 3. After prolonged absence from the dwelling (e.g. after holiday period).
  • Page 49 The local Alarm will stop sounding but you will hear the other Alarms still sounding in the distance. All Alarms should be checked in a similar way. Module Battery Check It is important to ensure that the batteries on both the Alarm and the module itself are in full working order.

  • Page 50: Interconnected Smoke/Heat Alarms & Carbon Monoxide Alarms

    Interconnected Smoke/Heat Alarms & Carbon Monoxide Alarms Identifying source of Alarm Ei Electronics Smoke/Heat Alarms and Carbon Monoxide Alarms can be interconnected via RadioLINK or RadioLINK+ so that one device sensing danger will cause all the other Alarms to sound.

  • Page 51: Radiolink + Troubleshooting

    If it is a Smoke/Heat Alarm, evacuate the residence and follow the instructions in the Smoke/Heat Alarm manual. If it is a Carbon Monoxide Alarm, ventilate the residence and follow the instructions in the Carbon Monoxide Alarm manual. For added convenience we recommend that an Ei450 Alarm Controller is used with these systems.

  • Page 52: Technical Specifications

    It is important to check that all Alarms are communicating in their final installed positions. If Alarms are rotated, have had their antennas extended and/or re-sited, we would recommend that all the Alarms are returned to the factory settings and then House Coded again in their final positions (see above).

  • Page 53: Guarantee

    This guarantee excludes incidental and consequential damage. If this RF RadioLINK + Module should become defective within the guarantee period, it must be returned to Ei Electronics, with proof of purchase, carefully packaged, with the problem clearly stated. We shall at our discretion repair or replace the faulty unit.

  • Page 54: Limitations Of Radio Communications

    Limitations of Radio Communications Ei Electronics radio communication systems are very reliable and are tested to high standards. However, due to their low transmitting power and limited range (required by regulatory bodies) there are some limitations to be considered: (i) Receivers may be blocked by radio signals occurring on or near their operating frequencies, regardless of the House Coding.
  • Page 55 Hereby, Ei Electronics declares that this Ei600MRF RadioLINK + Module is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The Declaration of Conformity may be consulted at www.eielectronics.com/compliance The crossed out wheelie bin symbol that is on your product indicates that this product should not be disposed of via the normal household waste stream.
  • Page 56 Aico Ltd. Mile End Business Park, Maesbury Rd, Oswestry, Shropshire SY10 8NN, U.K. Tel: 01691 664100 www.aico.co.uk Ei Electronics. Shannon, Co Clare, Ireland. Tel: 061 471277 www.eielectronics.com © Ei Electronics 2016 P/N B18151 Rev2...
