Functions of the board APCI-3xxx

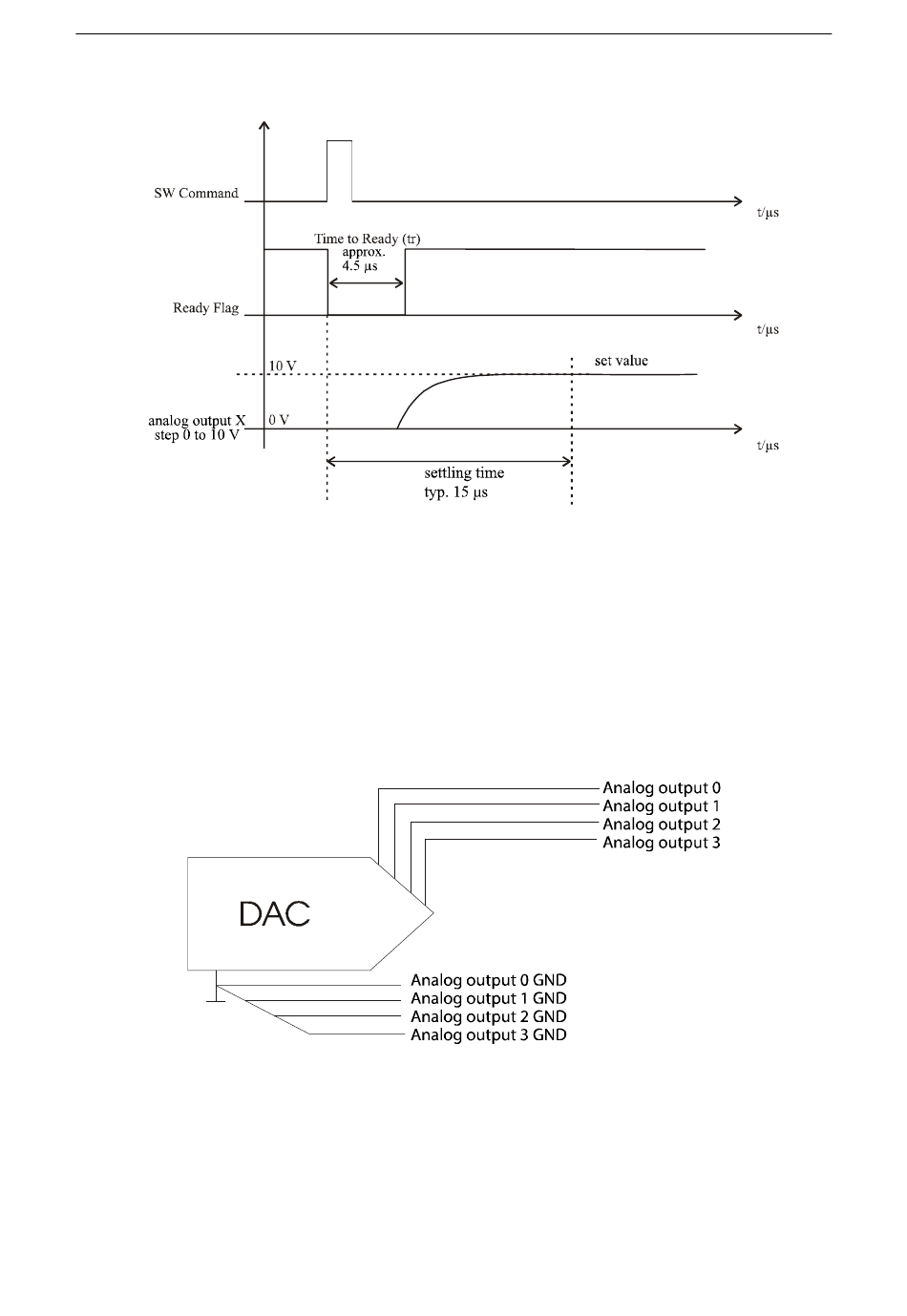

Fig. 8-4: Reaction time of the analog outputs

When the computer is switched on, the analog outputs are temporarily in an
undefined state. It is thus essential that the computer is switched on before
the connected peripherals.
After the Power ON reset of the computer, a voltage of 0 V is applied to all
analog outputs.

Fig. 8-5: Wiring of the analog ground lines (voltage version)

36
