FUNCTIONS OF THE BOARD

8.1

Block diagram

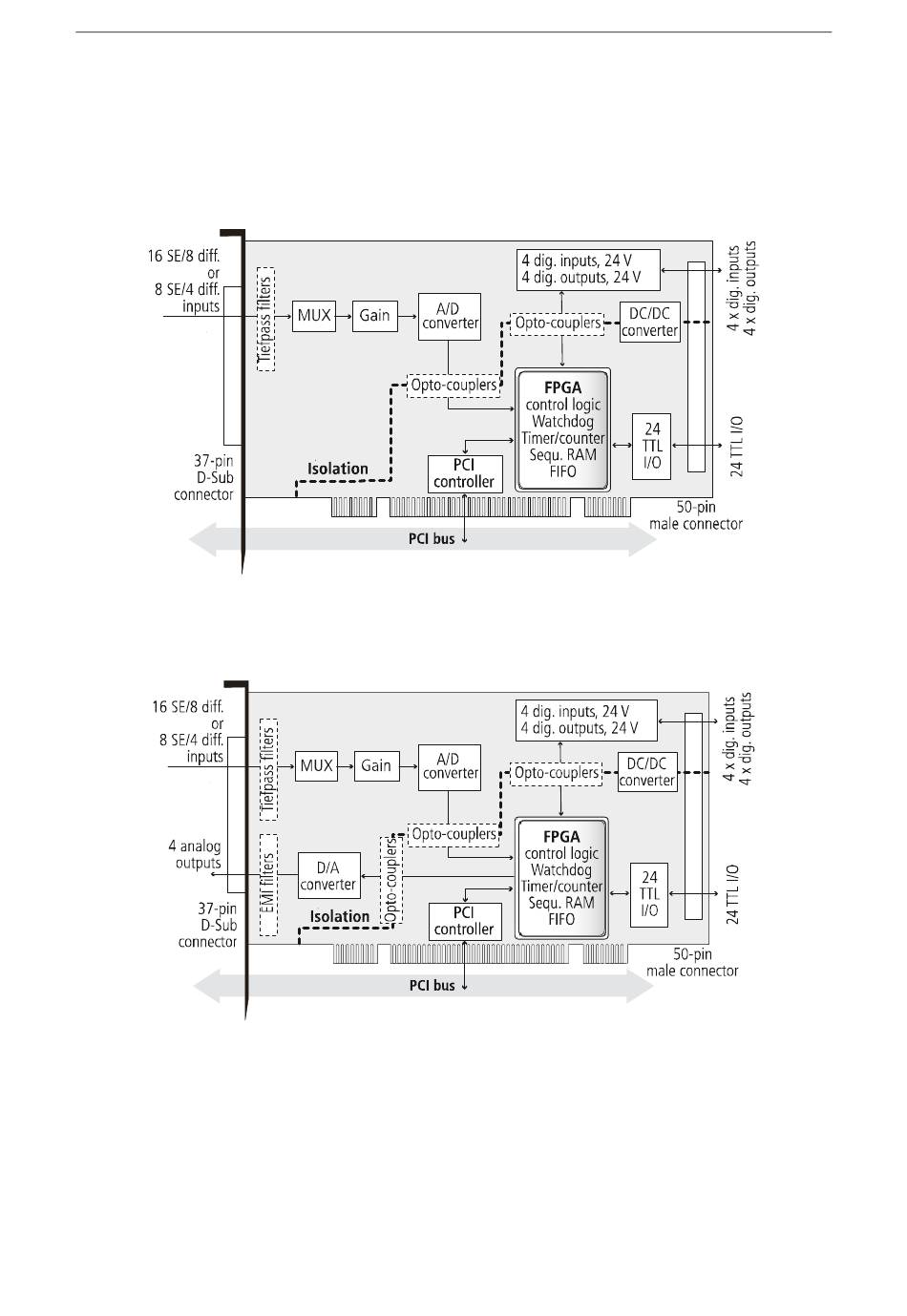

Fig. 8-1: Block diagram: APCI-3010 and APCI-3016

Fig. 8-2: Block diagram: APCI-3110 and APCI-3116

8.2

Analog inputs

There are 16 analog input channels on the boards – the resolution of the
APCI-3010 and APCI-3110 is 12-bit and of the APCI-3016 and
APCI-3116 16-bit.
