Connection Examples; Analog Inputs; Fig. 7-3: Connection Of The Screw Terminal Panel; Fig. 7-4: Connection Example: Analog Inputs - Addi-Data APCI-3010 Technical Description

Connecting the peripherals

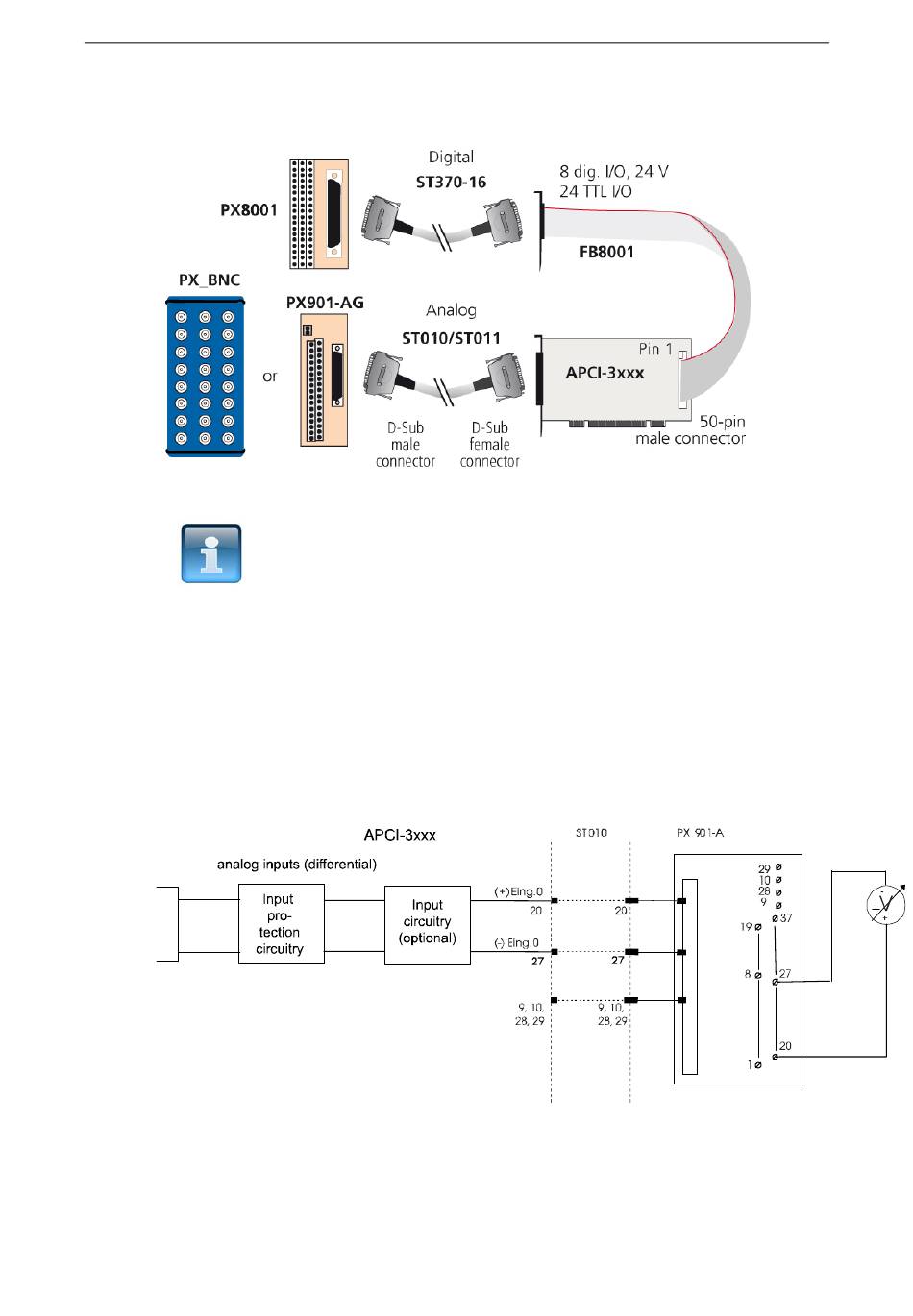

Fig. 7-3: Connection of the screw terminal panel

7.3

Connection examples

7.3.1 Analog inputs

Fig. 7-4: Connection example: Analog inputs

24
NOTICE!
Plug the FB8001 cable into the connector of the board
by inserting the red (or blue or black) cable line into
pin 1.
APCI-3xxx
