APCI-3xxx
Functions of the board

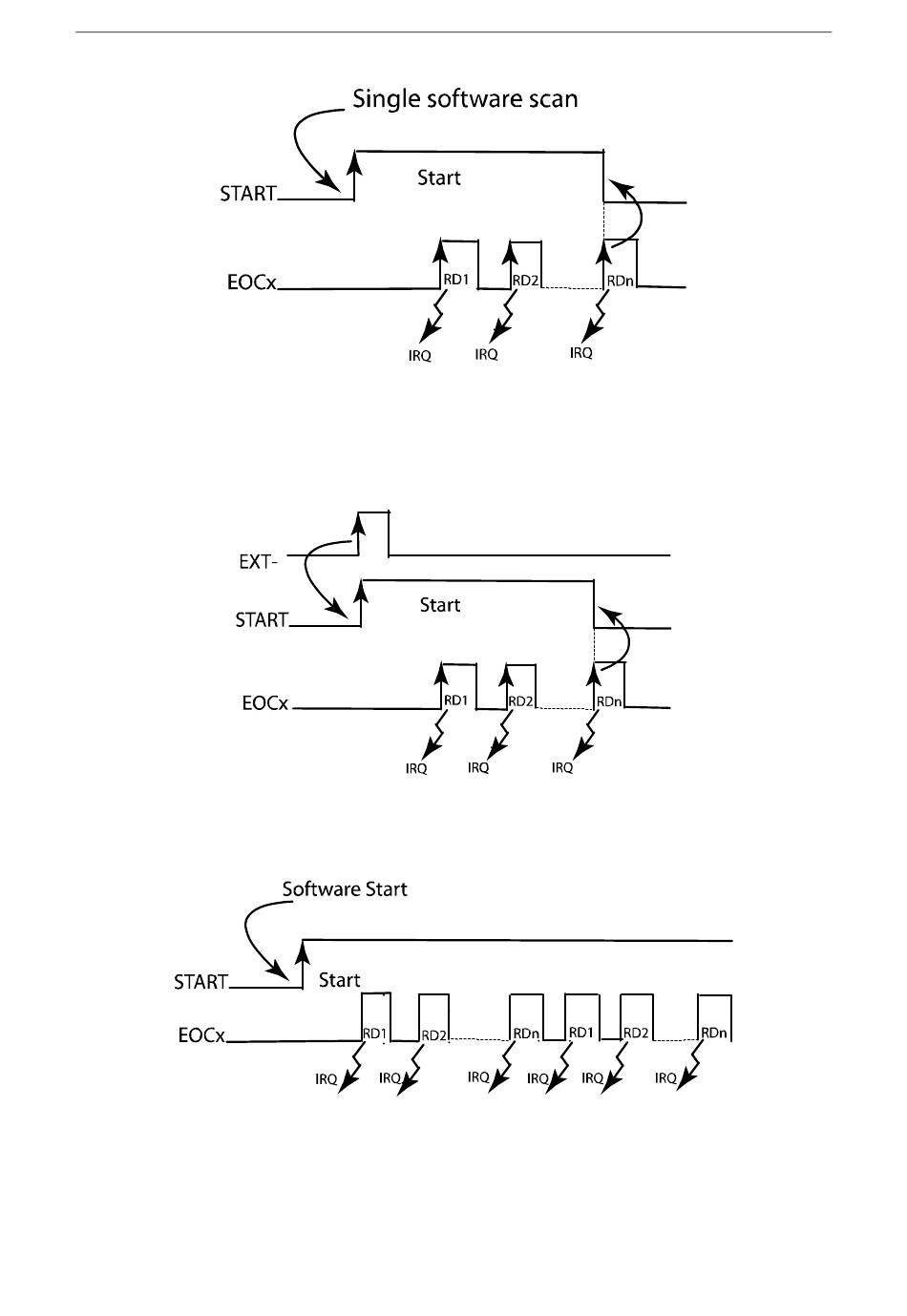

b) Single hardware triggered scan
This scan can be triggered with rising or falling edge (software initializes it).
c) Continuous software scan
31
