Installation & Maintenance Manual
•
Customer must register unit within thirty (30) days of installation in order to gain warranty coverage. See Warranty Card
for details.
•
When receiving the PRESTIGE Solo unit, any claims for damage or shortage in shipment must be filed immediately against
the transportation company by the consignee.
•
Leave all documentation received with appliance with the owner for future reference.
If the information in this manual is not followed exactly, a fire or explosion may result causing
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
• WHAT TO DO IF YOU SMELL GAS
- Do not try to light any appliance
- Do not touch any electrical switch; do not use any phone in your building.
- Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
- If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency or the gas supplier.
Revision date : 03/15/18

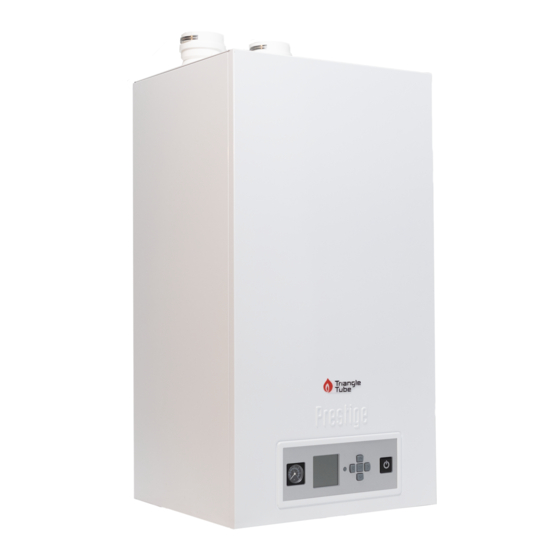

PRESTIGE
NOTICE
WARNING
substantial property damage, serious injury, or death.
FOR YOUR SAFETY
A1005229 - 664A0700 • B
Solo
PA 80, 110, 155, 175, 250, 299, 399
