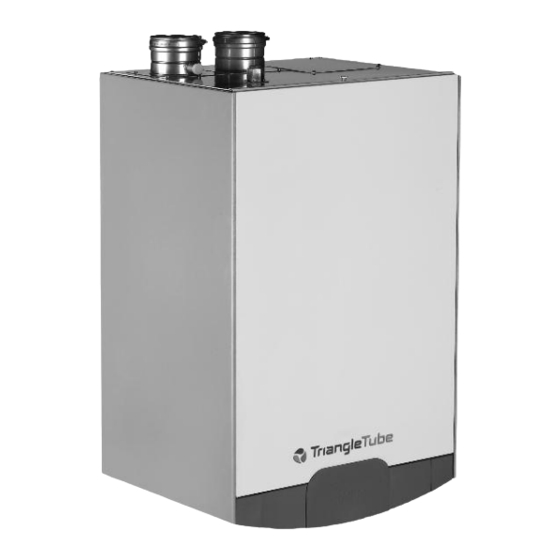

TriangleTube prestige Control Supplement
  1. Manuals
  2. Brands
  3. TriangleTube Manuals
  4. Boiler
  5. prestige
  6. Control supplement

TriangleTube prestige Control Supplement

Hide thumbs Also See for prestige:
Table of Contents

Advertisement

Quick Links

prestige
Supplement
Control Application
WARNING
This document is intended to be used by a factory trained and qualified heating
contractor or service technician only. Read all instructions within this document
and within the PRESTIGE Boiler Installation and Maintenance Manual, before pro-
ceeding. It is recommended to follow the procedures in the steps given, skipping
or missing procedural steps could result in severe personal injury, death or sub-
stantial property damage.
Revised 1/7/2008
2007-12 Prestige Control Appl. Supl.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the prestige and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TriangleTube prestige

Summary of Contents for TriangleTube prestige

  • Page 1 This document is intended to be used by a factory trained and qualified heating contractor or service technician only. Read all instructions within this document and within the PRESTIGE Boiler Installation and Maintenance Manual, before pro- ceeding. It is recommended to follow the procedures in the steps given, skipping or missing procedural steps could result in severe personal injury, death or sub- stantial property damage.

  • Page 2: Table Of Contents

    Table of Contents Product and Safety Information ........1 Operating Information .

  • Page 3: Product And Safety Information

    This document is intended to be used by a factory trained and qualified heating contractor or service technician only. Read all instructions within this doc- ument and within the PRESTIGE Boiler Installation and Maintenance Manual, before proceeding. It is recommended to follow the procedures in the steps...

  • Page 4: Operating Information

    The display should read (XX should be a random number from 00 to 99) The Prestige SOLO boiler is controlled by the MCBA Control module, which is a microprocessor electronic 5. Press the + or - button to change the display num- controller.

  • Page 5: Revising Application Setting

    The display should flash to indicate the revised based on the particular application in which the new value is stored. Prestige is installed. The parameter settings may be combined to provide the optimum application perform- ance of the Prestige.

  • Page 6: Domestic Hot Water Dhw Application Parameters General Guide

    DOMESTIC HOT WATER DHW APPLICATION PARAMETERS GENERAL GUIDE Factory Minimum Maximum Parameter Description Setting Setting Setting NTC Sensor setting for domestic hot water applications depending on the setting of 140ºF 68ºF 148ºF Parameter 35 (storage tank with NTC or storage tank with aquastat).
  • Page 7 Parameter 1 to set the operating temperature 46ºF 00ºF 54ºF of the Prestige during a DHW request. See pages 6 through 9 for additional information Selection of the DHW application. Storage tank See Warning application with NTC sensor (12). Storage tank Below with aquastat control application (13).

  • Page 8: Domestic Hot Water Applications

    24 volt terminal strip, DHW T-T connection NOT set Parameter 35 to any other setting other on the Prestige, then a “soft” lockout will occur. The dis- b_38 than 12 or 13. Failure to comply can result in errat-...
  • Page 9 Minimum Maximum NOTICE Parameter Setting Setting Setting During any DHW error condition the Prestige will P_26 02ºF 02ºF 54ºF continue to maintain normal CH circulator oper- ation on a CH request for heat, but will block the burner function for a CH request for heat. The...
  • Page 10 38ºF Parameter 1 plus Parameter 33. then the Prestige will active the DHW burner and circu- If Parameter 1 is set below 134ºF then it is recom- lator function. The burner will operate at minimum input mended that Parameter 33 be reset to a higher setting.
  • Page 11 Parameter function, with no domestic priority in this mode. Setting Setting Setting ON In this mode, factory setting, the Prestige burn- 46ºF 0ºF 54ºF er and DHW circulator will operate in a response to a “call for heat” by the IDWH. This request can be either a NTC sensor or DHW aquastat.
  • Page 12 Parameter Adjustments - ON Mode Parameter Factory Setting Revised Setting The Prestige is in factory set to this mode. However, the parameter adjustment to set the DHW operational option 2_01 2_02 to ON can be done either through the STBY mode dur- ing normal operation or by entering into the CODE mode.
  • Page 13 NOTICE DOMESTIC HOT WATER APPLICATION PUMP SETUP If the unit is currently set in an ON + Continuous At the completion of a DHW request for heat the amount Pump mode, the unit can be placed in an OFF + of time for post pump activity can be determine.
  • Page 14 DOMESTIC HOT WATER APPLICATION - DOMESTIC HOT WATER APPLICATION - DHW REQUEST FOR HEAT SETUP DHW TO CH REQUEST FOR HEAT SETUP At the completion of a DHW request for heat, the amount At the completion of a DHW request for heat, the amount of time for delay in reacting to a secondary DHW request of time for burner delay in reacting to a CH (space heat- for heat can be determined.
  • Page 15 CENTRAL HEATING (CH) APPLICATION PARAMETER GENERAL GUIDE Factory Minimum Maximum Parameter Description Setting Setting Setting CH application selection. Setting of the CH “ON” or “OFF”. Setting of the CH pump function “continuous” or “aquastat controlled”. See pages 19 through 21 for additional information CH boiler operating temperature set point.

  • Page 16: Central Heating Ch Application Parameters General Guide

    05, which are outlined in detail in this supple- ment guide. DO NOT set Parameter 34 to any other setting other than 00, 01, 04 or 05. Failure to comply can result in erratic or unreliable oper- ation of the Prestige boiler.

  • Page 17: Central Heating Applications

    CENTRAL HEATING (CH) APPLICATION Parameter Adjustment PARAMETERS GENERAL GUIDE CH OPERATIONAL TEMPERATURE The parameter adjustment of Parameter 5 in the CODE SETTING - HIGH AND LOW LIMIT mode is done by following the steps given in Program Access Section on page 2 until the display shows The boiler high operating limit is adjustable to meet the required system design temperature.
  • Page 18 System Boost Feature (Parameter 11) on page Parallel Shift / Night Setback. 22-24 To operate the Prestige under this application mode sev- eral Parameters must be revised to establish the required operating temperatures for the application. To configure the MCBA control to react based on the out-...
  • Page 19 / winter switch. The external controller will provide a 0 to 10V analog input to the Prestige AM4 interface module based on the For additional parameter setting, which relate to CH time to meet the system load requirements. The initial type -Outdoor Temperature reference: analog input of 1.8V or less will indicate the minimum...
  • Page 20 The external controller will provide a 0 to 10V analog input to the Prestige based on the system temperature to meet the load requirements. An analog input of 0V will indicate the minimum system temperature of 32ºF...
  • Page 21 Parameter Adjustments - ON Mode will be determined on a request for heat from the system. The DHW function will remain, as well The Prestige is factory set to this mode. However, the as domestic priority. parameter adjustment to set the CH operational option...
  • Page 22 The unit can also be place into the ON mode when the The parameter adjustment of Parameter 3 in the CODE unit is in normal operation without entering the PARA mode is done by following the steps given in Program mode.
  • Page 23 (Parameters 4 and 5) will create the system operating curve. Parameter Adjustment The Prestige with an outdoor sensor can respond to a To revise the warmest design temperature day adjust- request for heat through the outdoor sensor or through a ment of Parameter 7 in the CODE mode is done by fol- room thermostat.
  • Page 24 Parameter 8 during a non-heating request, then the request for heat has ended. Prestige will activate the CH circulator function. The burner will not operate during this condition unless a Once the calculated operating boiler temperature (based heat request is initiated.
  • Page 25 Min. 32 F Fig. 3: Setting the Block Temperature Set Point Fig. 4: Setting the Boost Feature Parameter...
  • Page 26 10 seconds minutes contacts on the Prestige are “open”. In the application of Heat Request - Using Outdoor Sensor (Parameter 34) on page 16, the burner is modulating to maintain a system temperature and the CH circulator is circulating through the system.
  • Page 27 SPACE HEATING APPLICATION - CH BOILER CONTROL FUNCTION - BOILER REQUEST FOR HEAT SETUP HOLD TEMPERATURE At the completion of a CH request for heat the amount of The boiler can maintain a minimum boiler temperature time for delay in reacting to a secondary CH request for based on the setting of Parameter 38.

  • Page 28: Parameter Worksheet And Recorded Settings

    PARAMETER WORKSHEET AND RECORDED SETTINGS Factory Minimum Maximum Adjusted Parameter Description Setting Setting Setting Setting NTC Sensor setting for domestic hot water applications depending on the setting of Parameter 140ºF 68ºF 148ºF 35 (storage tank with NTC or storage tank with aquastat).
  • Page 29 Factory Minimum Maximum Adjusted Parameter Description Setting Setting Setting Setting Boost feature set point. Use to compensate the calculated operating temperature. See pages 22 through 24 for additional information minutes minutes minutes Parallel shift setting. When using the optional 00ºF 00ºF 144ºF outdoor sensor this setting is a setback feature.
  • Page 30 Parameter 1 to set the operating temperature of the 46ºF 00ºF 54ºF Prestige during a DHW request. See pages 6 through 9 for additional information Selection of CH application type based on the 34 (See response for heat. Room thermostat, Outdoor WARNING temperature, external controller.
  • Page 31 Factory Minimum Maximum Adjusted Parameter Description Setting Setting Setting Setting Do Not Adjust this Parameter (-)01 Do Not Adjust this Parameter Boiler hold temperature setting. Maintains a 32ºF 32ºF 176ºF minimum boiler temperature. See page 25 for additional information Do Not Adjust this Parameter Do Not Adjust this Parameter Do Not Adjust this Parameter Do Not Adjust this Parameter...
  • Page 32 Computerized sizing available from Triangle Tube/Phase III Available in capacities from 25,000 BTU/hr to 5,000,000 BTU/hr Member of Freeway Center - 1 Triangle Lane - Blackwood, NJ 08012 Tel: (856) 228 8881 - Fax: (856) 228 3584 E-mail: Sales@triangletube.com Group...
