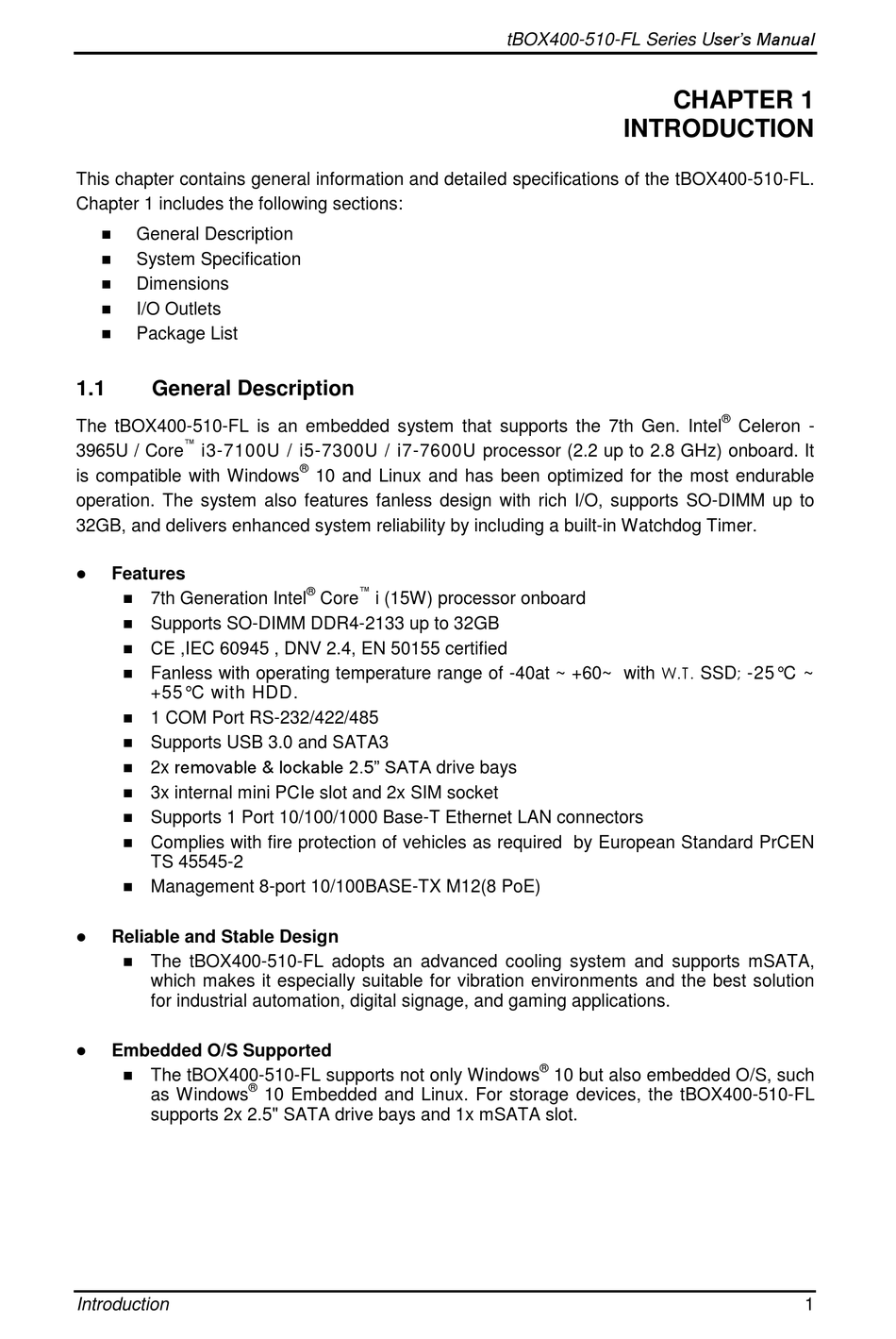

Chapter 1 Introduction; General Description - AXIOMTEK tBOX400-510-FL Series User Manual

This chapter contains general information and detailed specifications of the tBOX400-510-FL.
Chapter 1 includes the following sections:


General Description


System Specification
 Dimensions
 I/O Outlets
 Package List
1.1 General Description
The tBOX400-510-FL is an embedded system that supports the 7th Gen. Intel
™
3965U / Core i3-7100U / i5-7300U / i7-7600U processor (2.2 up to 2.8 GHz) onboard. It
is compatible with Windows
operation. The system also features fanless design with rich I/O, supports SO-DIMM up to
32GB, and delivers enhanced system reliability by including a built-in Watchdog Timer.
 Features
 7th Generation Intel
 Supports SO-DIMM DDR4-2133 up to 32GB

CE ,IEC 60945 , DNV 2.4, EN 50155 certified
 Fanless with operating temperature range of -40at ~ +60~ with
+55°C with HDD.

1 COM Port RS-232/422/485
 Supports USB 3.0 and SATA3
2x removable & lockable 2.5" SATA drive bays

 3x internal mini PCIe slot and 2x SIM socket
 Supports 1 Port 10/100/1000 Base-T Ethernet LAN connectors

Complies with fire protection of vehicles as required by European Standard PrCEN
TS 45545-2
 Management 8-port 10/100BASE-TX M12(8 PoE)
 Reliable and Stable Design
 The tBOX400-510-FL adopts an advanced cooling system and supports mSATA,
which makes it especially suitable for vibration environments and the best solution
for industrial automation, digital signage, and gaming applications.
 Embedded O/S Supported
 The tBOX400-510-FL supports not only Windows
as Windows
supports 2x 2.5" SATA drive bays and 1x mSATA slot.
Introduction
®
10 and Linux and has been optimized for the most endurable
™
®
Core i (15W) processor onboard
®
10 Embedded and Linux. For storage devices, the tBOX400-510-FL
tBOX400-510-FL Series User's Manual
CHAPTER 1
INTRODUCTION
W.T.
®
10 but also embedded O/S, such
®
Celeron -
;
SSD -25°C ~
1
