tBOX400-510-FL Series User's Manual

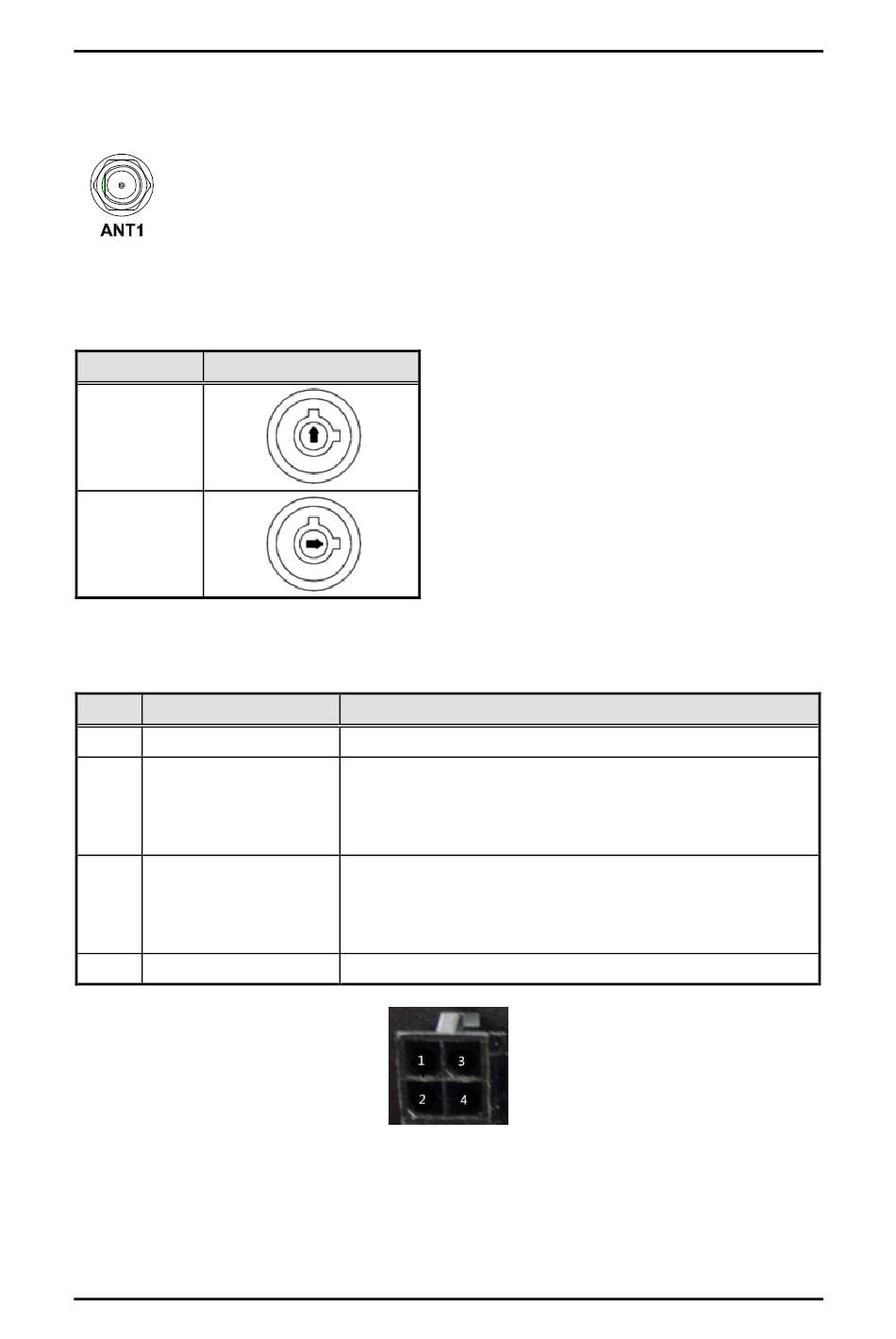

3.1.10 Antenna Opening
Profile opening is reserved for Wi-Fi/3G/4G antennas.
3.1.11
HDD Tray Locker
Locks and secures the swappable HDD/SSD bay.
Status
Diagram
Unlocked
Locked
3.1.12 Remote Switch Connector
The remote switch is ideal for a remote button which can act as an ATX power on/off button.
Pin
Signal
1
NC
2
Switch Signal
3
Ext. SW Sensor
4
GND
22
N/A
Low Active. Act as PC's ATX switch when external switch
installed (Pin 3 Active)
**Internal pull up resister did not connect to any power
source
Low Active. To detect whether external power switch is installed
or not.
** Internal pull up resister did not connect to any power
source
Description
Connector
