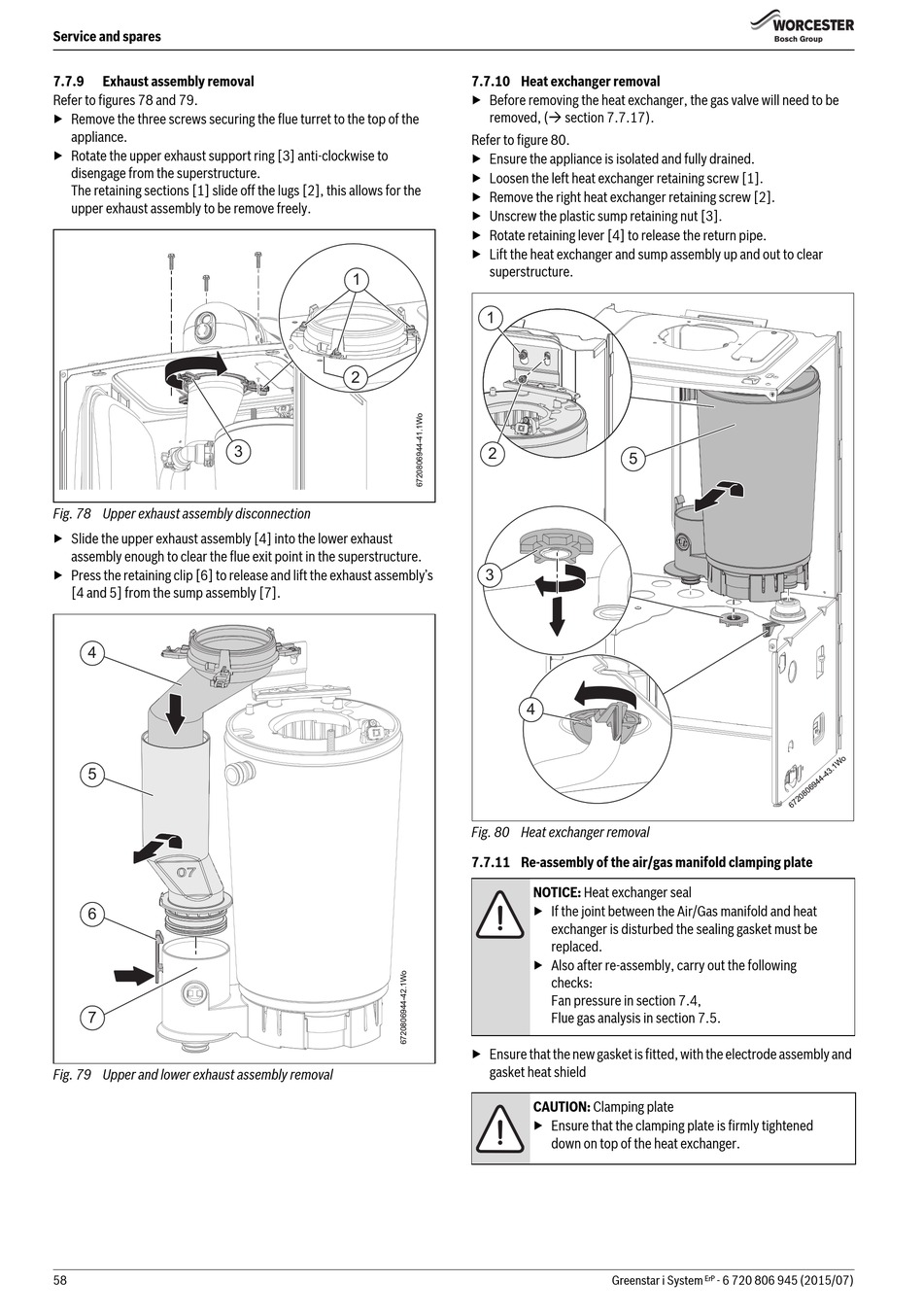

Service and spares
7.7.9

Exhaust assembly removal

Refer to figures 78 and 79.
▶ Remove the three screws securing the flue turret to the top of the
appliance.
▶ Rotate the upper exhaust support ring [3] anti-clockwise to
disengage from the superstructure.
The retaining sections [1] slide off the lugs [2], this allows for the
upper exhaust assembly to be remove freely.
Fig. 78 Upper exhaust assembly disconnection
▶ Slide the upper exhaust assembly [4] into the lower exhaust
assembly enough to clear the flue exit point in the superstructure.
▶ Press the retaining clip [6] to release and lift the exhaust assembly's
[4 and 5] from the sump assembly [7].
4
5
6
7
Fig. 79 Upper and lower exhaust assembly removal
58
1
2
3

7.7.10 Heat exchanger removal

▶ Before removing the heat exchanger, the gas valve will need to be
removed, ( section 7.7.17).
Refer to figure 80.
▶ Ensure the appliance is isolated and fully drained.
▶ Loosen the left heat exchanger retaining screw [1].
▶ Remove the right heat exchanger retaining screw [2].
▶ Unscrew the plastic sump retaining nut [3].
▶ Rotate retaining lever [4] to release the return pipe.
▶ Lift the heat exchanger and sump assembly up and out to clear
superstructure.
1
2
5
3
4
Fig. 80 Heat exchanger removal

7.7.11 Re-assembly of the air/gas manifold clamping plate

NOTICE: Heat exchanger seal
▶ If the joint between the Air/Gas manifold and heat
exchanger is disturbed the sealing gasket must be
replaced.
▶ Also after re-assembly, carry out the following
checks:
Fan pressure in section 7.4,
Flue gas analysis in section 7.5.
▶ Ensure that the new gasket is fitted, with the electrode assembly and
gasket heat shield
CAUTION: Clamping plate
▶ Ensure that the clamping plate is firmly tightened
down on top of the heat exchanger.
