Removing the siphon
▶ Place a suitable container under the siphon and remove the cap to
drain the siphon, replace the cap once drained.
▶ Remove the siphon securing screw [1] completely.
▶ Rotate the siphon [3] level and to the right (until the upper arm [2]is
parallel to the side casing), to release from the bayonet connection.
▶ Pull the siphon [3] straight down to clear the bayonet connection.
▶ Tilt the siphon [3] to the front and remove over the control box
assembly [4].
– Lifting the control box assembly [4] up a little may ease the
removal of the siphon.
1
2

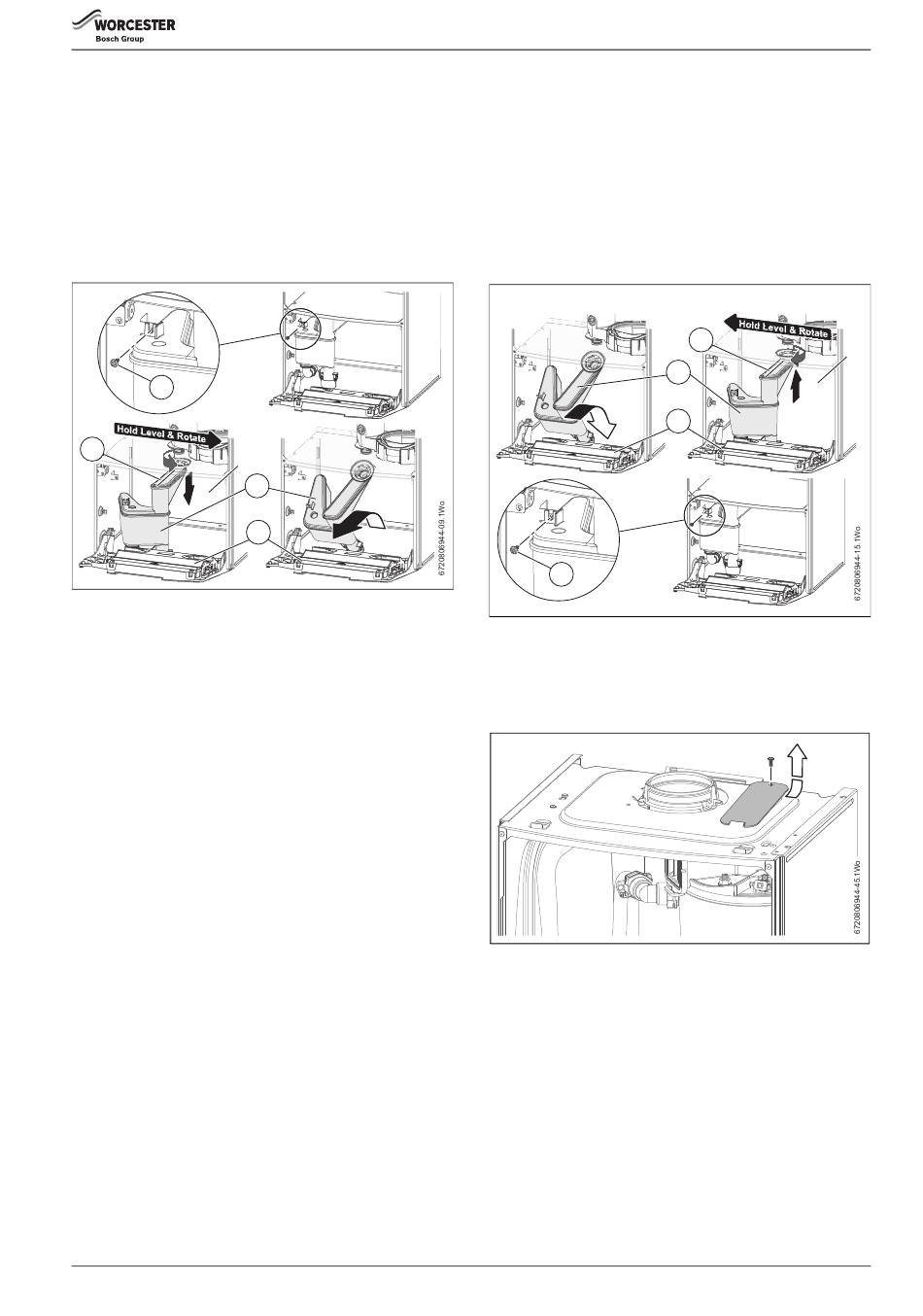

Fig. 65 Removing siphon
▶ Visually inspect the siphon to ensure that it is clean and free from
debris.
Greenstar i System - 6 720 806 945 (2015/07)
ErP
3
4
7.6.2

Refitting the siphon after cleaning

▶ Fill siphon with 200 to 250 millilitres of water.
▶ Slide the siphon in over the control box assembly [2].
– Lifting the control box assembly [2] up a little may ease the fitting
of the siphon.
▶ Push the siphon [1] up onto the sump assembly until it fully engages
with the sump connection.
▶ Rotate the siphon [1] level and to the left to secure the bayonet
connection.
▶ Push the black discharge hose, onto the condensate outlet pipe.
▶ Screw the siphon in position to secure it [3].
4
Fig. 66 Reconnecting the siphon
7.6.3

Remove access cover panel

Refer to figure 67.
▶ Remove the retaining screw.
▶ Lift forward and up to disengage from the retaining lug.
Fig. 67 Access cover plate removal
Service and spares
1
2
3
