Pre-installation
14
1
7

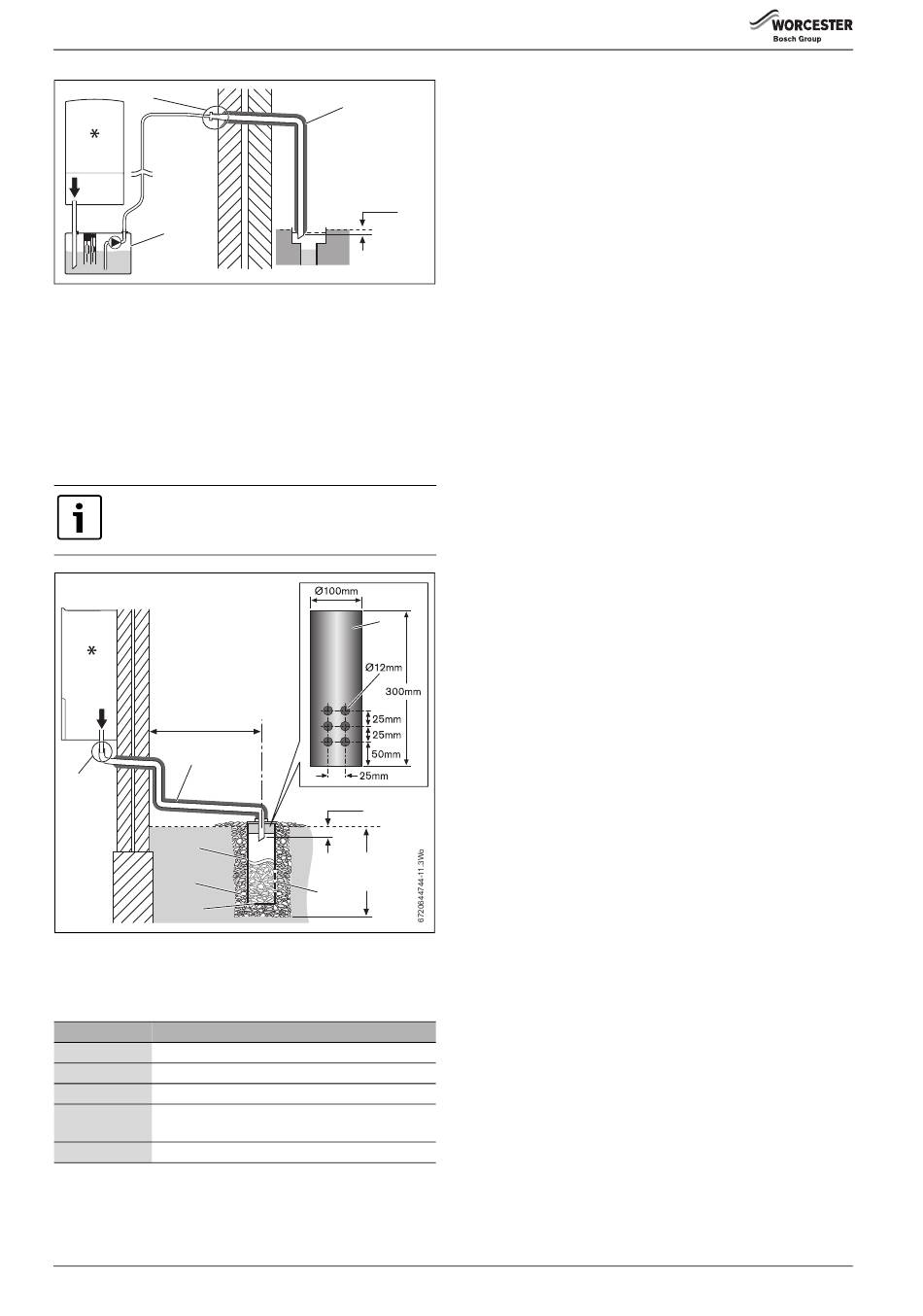

Fig. 16 Condensate pump to external disposal
Condensate soak away
• The condensate drainage pipe may be run above or below the ground
to the soak away. The examples shown on this page run above
ground.
• The soak away must use a 100mm Ø plastic tube with two rows of
three 12mm holes on 25mm centres and 50mm from the bottom of
the tube. The holes must face away from the house.
• The tube must be filled with and surrounded by at least 100mm of
limestone chippings to a depth of 400mm.
Minimum hole size for the condensate soak away must be
400mm deep by 300mmØ .
1
500mm min.
13
14
9
11
12
Fig. 17 Soak away
4.7
Standard accessories
Appliance accessories
Part number
Description
7 716 192 713 Vertical pre-piping assembly
7 716 192 609 Greenstar System filter
7 716 192 686 Earth bonding strip
7 733 600 089 Greenstar i System 9, 12, 15, 18, 21 & 24 kW
range Diverter valve kit
7 733 600 091 Heat exchanger cleaning kit
Table 13
22
Integral diveter valve option
The appliance has the option to fit an integral diverter valve kit, which
13
has multiple controls options for the use with vented and unvented hot
water cylinders. The details can be found in the Installation Instructions
for the diverter valve kit.
25mm min.
6720644744-12.3Wo
9
10
25mm min.
400mm
min.
10
Greenstar i System
- 6 720 806 945 (2015/07)
ErP
