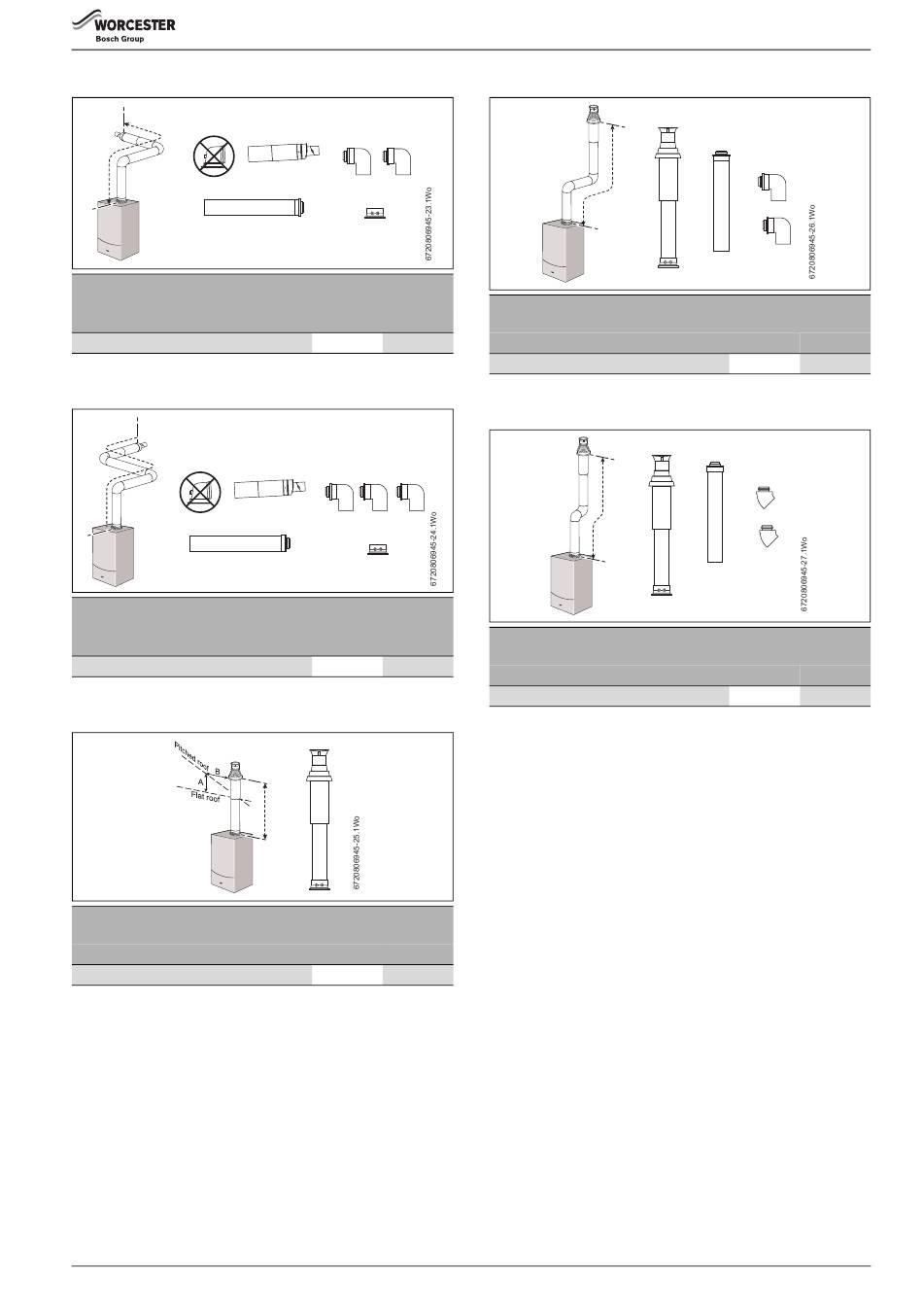

Worcester Greenstar i System ErP Series Installation, Commissioning And Servicing Instructions page 25

High level horizontal flue with additional elbows
High level horizontal flue with 2 x 90° bends
Table 22
High level horizontal flue with additional elbows
High level horizontal flue with 3 x 90° bends
Table 23
Vertical balanced flue assembly
A = 300 mm
B = 500 mm
Vertical balanced flue assembly
Table 24
Greenstar i System - 6 720 806 945 (2015/07)
ErP
Vertical balanced flue with elbow offset (2 x 90 ° bends)
Maximum flue length
(mm)
60/100 80/125
2,600 11,000
Vertical balanced flue with 2 x 90° bends
Table 25
Vertical balanced flue with elbow offset (2 x 45 ° bends)
Maximum flue length
(mm)
60/100 80/125
N/A 9,000
Vertical balanced flue with 2 x 45° bends
Table 26
Maximum flue length
(mm)
60/100 80/125
6,400 15,000
Pre-installation
Maximum flue length
(mm)
60/100 80/125
2,400 11,000
Maximum flue length
(mm)
60/100 80/125
4,400 13,000
25
