Combifast® - Instruction
Maintenance original instructions
Step
Install the fixed component on the milk line by
twisting the pair of screws (ref. 5) to the end;
carefully tighten the nut (ref. 6) located on the lower
half-shell to fully fasten.
CAUTION
To not over tighten the nut (ref. 6).
2
For optimal fastening, fully twist the nut once
after contact with the milk tube.
NOTE
In order to facilitate the installation, it is
suggested that the movable component be put
at an angle of 10 ~ 15° to the horizontal surface.
Install the gasket (ref. 7) onto the vacuum line (ref. 4) and therefore, subsequently, the vacuum
3
withdrawal nipple (ref. 8) at a 90° angle.
Connect the fixed component to the vacuum nipple
(ref. 8) with the piece of tube (ref. 9). The length of
this piece must be adapted, in order to avoid harsh
curves or the partial twisting of the tube on itself.
Connect the claw's milk tube to the Combifast's
movable component ID 14 milk tube using a
suitable piece of milk tube (2.5m – 8.2 ft
4
suggested).
Connect the pulsator to the claw with an equivalent
pulsator tube.
WARNING
The tube (ref. 9) must be positioned at a
distance from the animals.
For systems which foresee milking with LP20 /
LP30 electronic pulsators, the fixed component's
5
power supply must be connected to the IT
transformer.
WARNING
6
For the electrical version, verify that the connection of the cable to the main line is
perfectly isolated from the surrounding environment.
THIS MANUAL IS THE PROPERTY OF -
Manual, Operation and
Description
InterPuls S.p.A. -
ANY COPYING, EVEN PARTIAL, IS STRICTLY PROHIBITED
MI - 9
1420066_02.17_EN

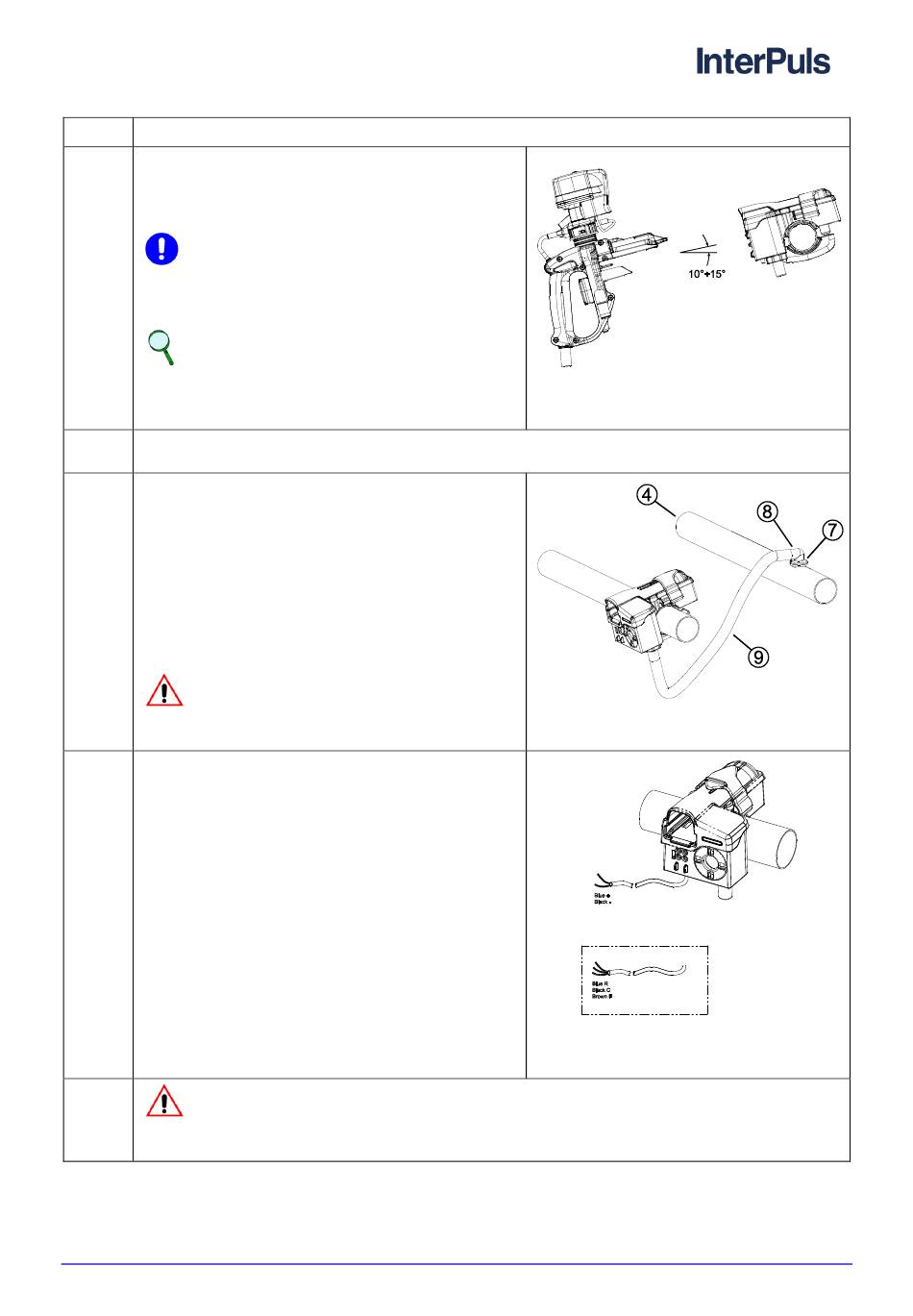

Fig. 3 – Suggested angle for fixed
components
Fig. 4 – Connection of fixed component to
the vacuum nipple
Fig. 5 – Connection of pulsator's power
supply / data transfer lines to the IT
junction box
