5 INSTALLATION

Step
Foresee the installation of one fixed component for
every 2 animals.
Pierce the milk (ref. 3) and vacuum (ref. 4) lines
with a 22 mm (0.86 in) diameter drill bit.
CAUTION
Carefully sand the holes to avoid damaging the
gaskets.
1
NOTE
Foresee one movable component
for every 5 fixed components.
THIS MANUAL IS THE PROPERTY OF -
1420066_02.17_EN
InterPuls S.p.A.
Combifast® - Instruction Manual, Operation and Maintenance
Description

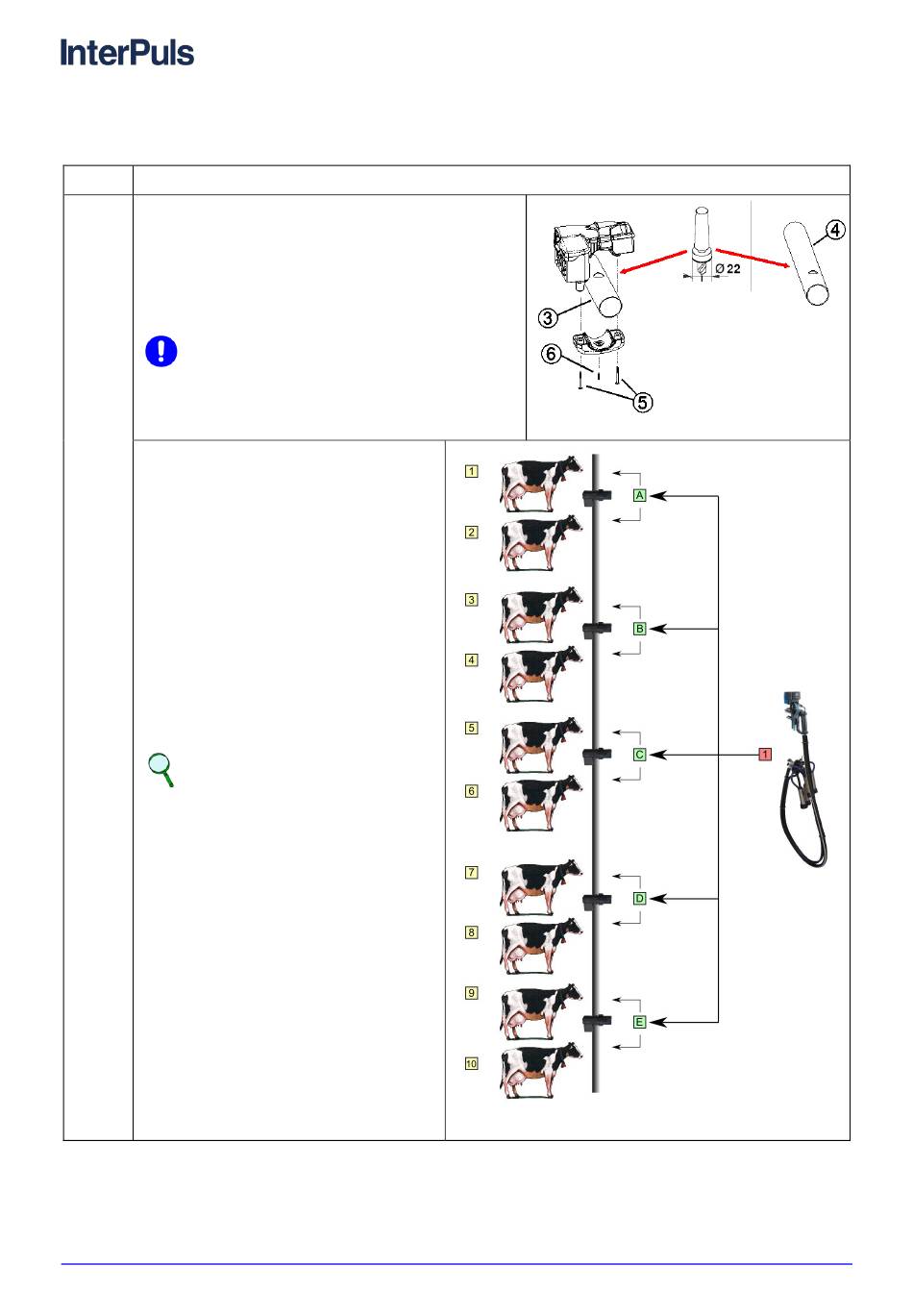

Fig. 1 – Piercing and installation of lines
Fig. 2 – Layout example
-
