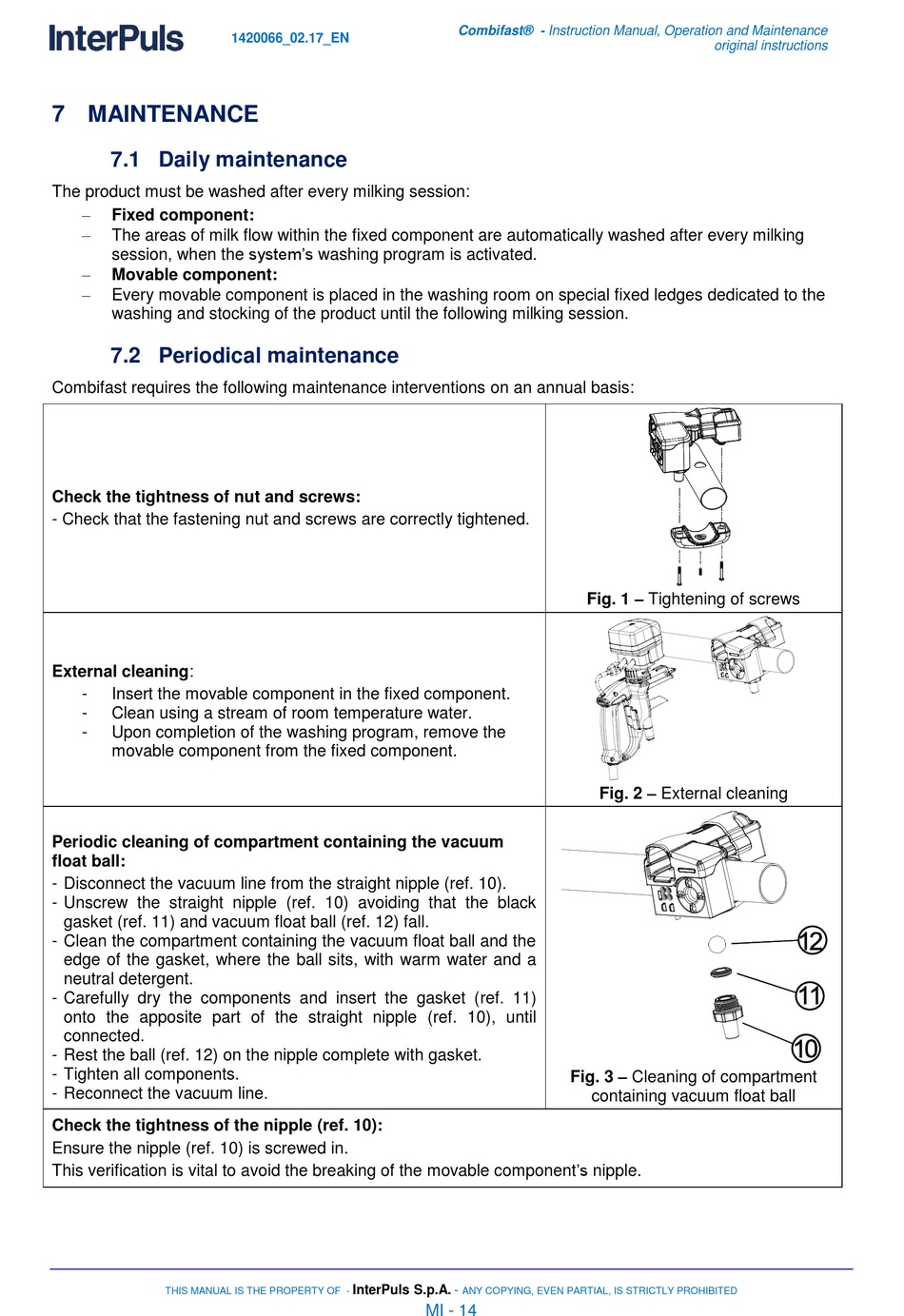

7 MAINTENANCE

7.1 Daily maintenance

The product must be washed after every milking session:

Fixed component:

The areas of milk flow within the fixed component are automatically washed after every milking
session, when the system's washing program is activated.

Movable component:

Every movable component is placed in the washing room on special fixed ledges dedicated to the
washing and stocking of the product until the following milking session.

7.2 Periodical maintenance

Combifast requires the following maintenance interventions on an annual basis:
Check the tightness of nut and screws:
- Check that the fastening nut and screws are correctly tightened.
External cleaning:
- Insert the movable component in the fixed component.
- Clean using a stream of room temperature water.
- Upon completion of the washing program, remove the
movable component from the fixed component.
Periodic cleaning of compartment containing the vacuum
float ball:
- Disconnect the vacuum line from the straight nipple (ref. 10).
- Unscrew the straight nipple (ref. 10) avoiding that the black
gasket (ref. 11) and vacuum float ball (ref. 12) fall.
- Clean the compartment containing the vacuum float ball and the
edge of the gasket, where the ball sits, with warm water and a
neutral detergent.
- Carefully dry the components and insert the gasket (ref. 11)
onto the apposite part of the straight nipple (ref. 10), until
connected.
- Rest the ball (ref. 12) on the nipple complete with gasket.
- Tighten all components.
- Reconnect the vacuum line.
Check the tightness of the nipple (ref. 10):
Ensure the nipple (ref. 10) is screwed in.
This verification is vital to avoid the breaking of the movable component's nipple.
THIS MANUAL IS THE PROPERTY OF -
1420066_02.17_EN
InterPuls S.p.A.
Combifast® - Instruction Manual, Operation and Maintenance
Fig. 1 – Tightening of screws
Fig. 3 – Cleaning of compartment
containing vacuum float ball
-
ANY COPYING, EVEN PARTIAL, IS STRICTLY PROHIBITED
MI - 14
original instructions
Fig. 2 – External cleaning
