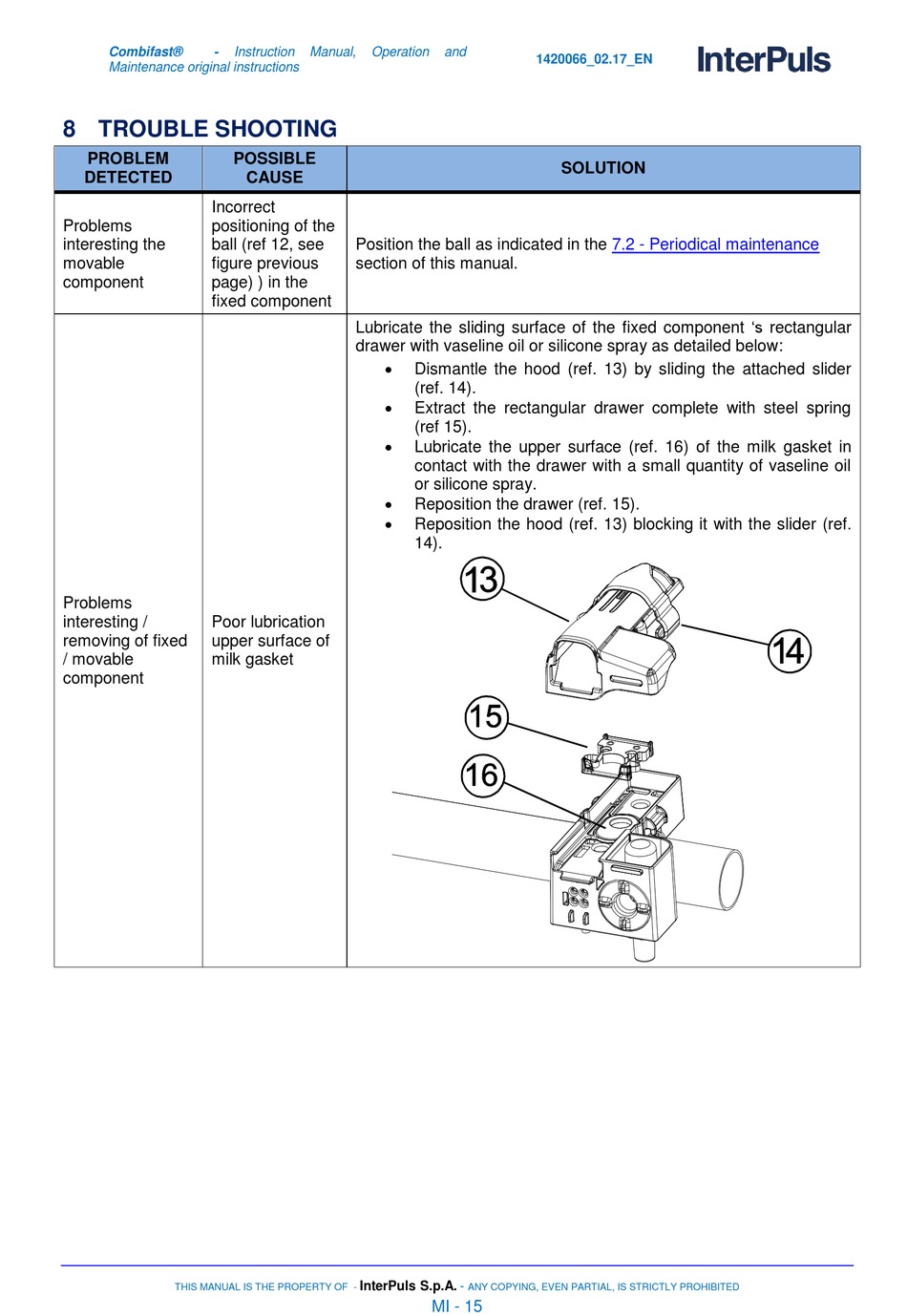

8 TROUBLE SHOOTING

PROBLEM POSSIBLE
DETECTED
Incorrect
Problems positioning of the
interesting the ball (ref 12, see
movable figure previous
component page) ) in the
fixed component
Problems
interesting / Poor lubrication
removing of fixed upper surface of
/ movable milk gasket
component
THIS MANUAL IS THE PROPERTY OF -
Manual, Operation
CAUSE
Position the ball as indicated in the
section of this manual.
Lubricate the sliding surface of the fixed component 's rectangular
drawer with vaseline oil or silicone spray as detailed below:

Dismantle the hood (ref. 13) by sliding the attached slider
(ref. 14).

Extract the rectangular drawer complete with steel spring
(ref 15).

Lubricate the upper surface (ref. 16) of the milk gasket in
contact with the drawer with a small quantity of vaseline oil
or silicone spray.

Reposition the drawer (ref. 15).

Reposition the hood (ref. 13) blocking it with the slider (ref.
14).
InterPuls S.p.A.
and
1420066_02.17_EN
SOLUTION
-
ANY COPYING, EVEN PARTIAL, IS STRICTLY PROHIBITED
MI - 15
7.2 - Periodical maintenance
