H D N Option-Specification
24X5BJ2467B Options Service

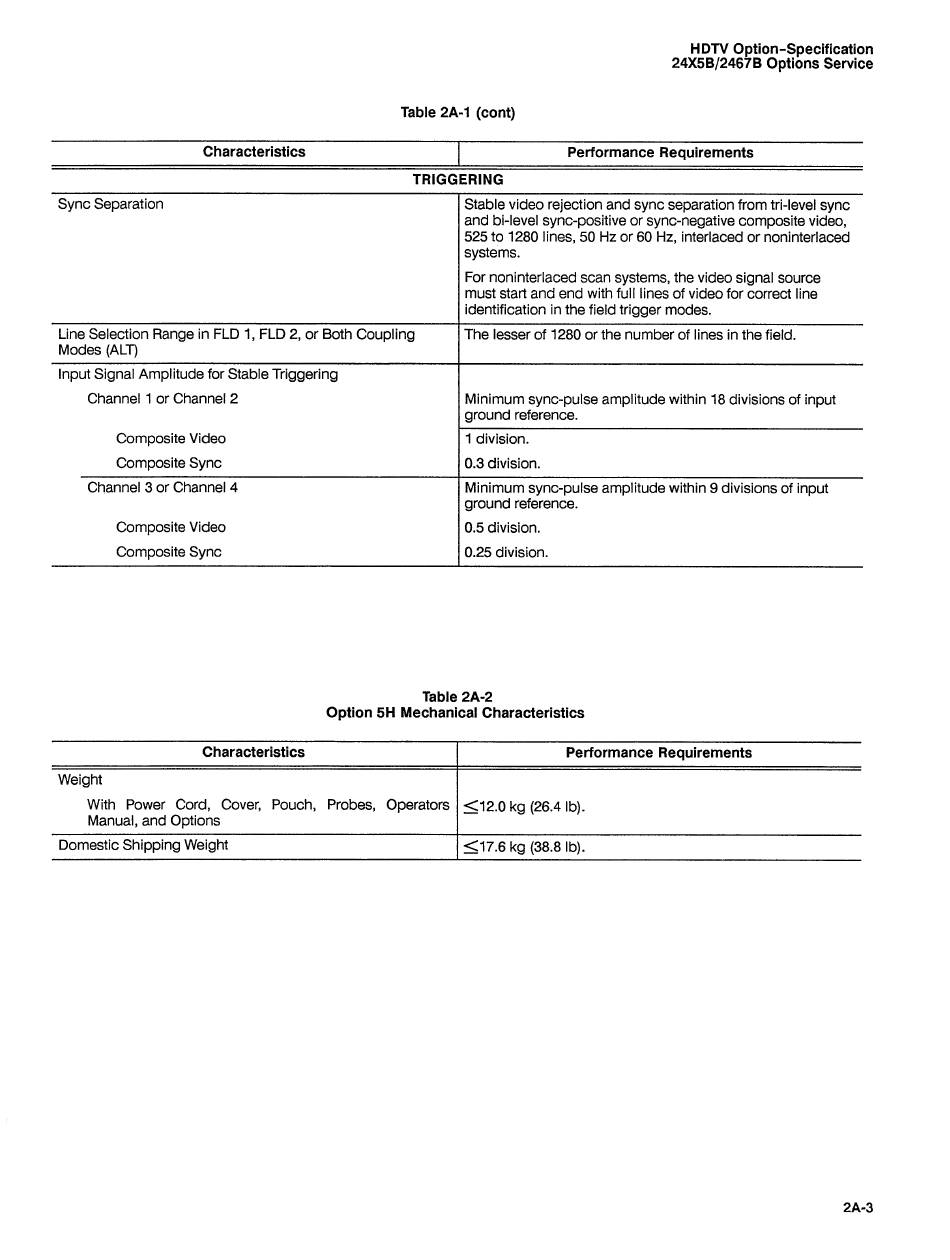

Table 2A-1 (cont)
Sync Separation
Characteristics
Line Selection Range in FLD 1, FLD 2, or Both Coupling
Modes (ALT)
Input Signal Amplitude for Stable Triggering
Channel 1 or Channel 2
Performance Requirements
Composite Video
Composite Sync
TRIGGERING
Channel 3 or Channel 4
Composite Video
Composite Sync
Stable video rejection and sync separation from tri-level sync
and bi-level sync-positive or sync-negative composite video,
525 to 1280 lines, 50 Hz or 60 Hz, interlaced or noninterlaced
systems.
For noninterlaced scan systems, the video signal source
must start and end with full lines of video for correct line
identification in the field trigger modes.
The lesser of 1280 or the number of lines in the field.
Minimum sync-pulse amplitude within 18 divisions of input
ground reference.
1 division.
0.3 division.
Minimum sync-pulse amplitude within 9 divisions of input
ground reference.
0.5 division.
0.25 division.
Table 2A-2
Option 5H Mechanical Characteristics
With Power Cord, Cover, Pouch, Probes, Operators
Manual, and Options
Characteristics
Weight
512.0 kg (26.4 Ib).
Performance Requirements
Domestic Shipping Weight
1
517.6 kg (38.8 lb).
